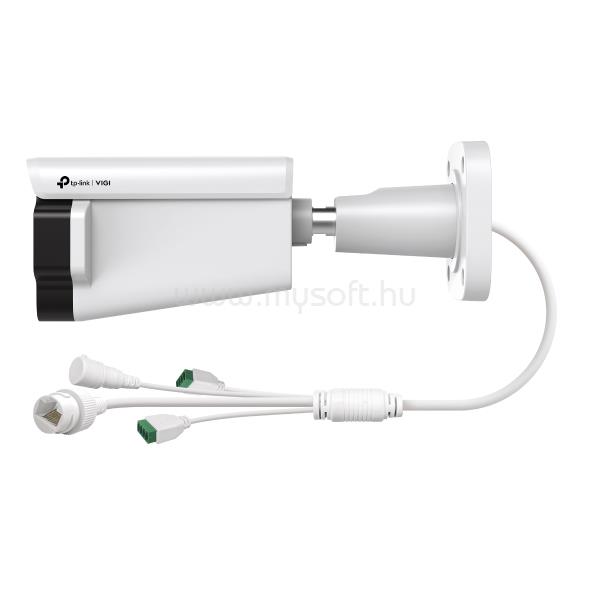

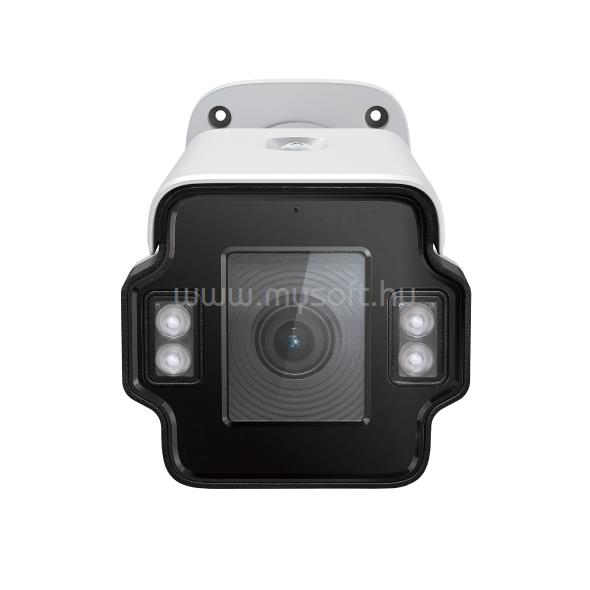

TP-LINK INSIGHT S345ZI IP CSŐKAMERA (4MP, 2.7-13.5MM, IP67, IK10; H265+, IR60M, 12VDC/POE, MIKR., HANGSZ.; FÉM HÁZ)

• CAMERA

• Image Sensor
• 1/2.9" Progressive Scan CMOS
• Shutter Speed
• 1/3 to 1/10000 s
• Slow Shutter
• Yes
• Minimum Illumination
• 0.005 Lux; 0 Lux with IR Light
• Day/Night Mechanism
• IR Cut Filter
• Day/Night Switch
• Unified/ Scheduled/ Auto

• LENS

• Type
• Motorized Varifocal Lens
• Focal Length
• 2.7-13.5 mm (5X Optical Zoom)
• Aperture
• F1.6
• FOV
• 2.7-13.5 mm:
• Horizontal FOV: 29.6°-102.0°
• Vertical FOV: 16.8°-53.8°
• Diagonal FOV: 34.1°-122.8°
• Lens Mount
• 14
• DORI Distance
• 2.7-13.5 mm:
• Detect: 66-207 m (217-579 ft)
• Observe: 28-86 m (92-282 ft)
• Recognize: 13-41 m (43-135 ft)
• Identify: 7-21 m (23-69 ft)

• Angle Adjustment (Manual)

• Range
• Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

• ILLUMINATOR

• IR LED
• Quantity: 4
• Range: 60m (197ft)
• Wavelength: 850nm
• Illuminator On/Off Control
• Auto/Scheduled/Always on/Always off

• VIDEO

• Max. Resolution
• 2688 x 1520
• Main Stream
• Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
• 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080
• Note:
• If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Sub-Stream
• Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
• 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
• Note:
• If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control
• CBR, VBR
• Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type
• High Profile
• H.264+
• Main Stream Supported
• H.265 Type
• Main Profile
• H.265+
• Main Stream Supported
• Video Bit Rate
• Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 512 Kbps to 1024 Kbps

• Image

• Image Settings
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Image Enhancement
• BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range
• 120 dB
• SNR
• > 52 dB
• Image Parameters Switch
• Yes
• Privacy Mask
• Up to 4 Masks
• ROI
• 1 Region
• OSD Setting
• Yes

• AUDIO

• Audio Communication
• One-Way Audio
• Audio Input
• Yes
• Audio Output
• Yes
• Audio Compression
• Yes
• Audio Sampling Rate
• 8KHz
• Environment Noise Filtering
• Yes
• Audio Bit Rate
• 64 Kbps(G.711 alaw)

• NETWORK

• Protocol
• TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
• ONVIF
• Yes
• API
• Open Network Video Interface (Profile S/T/G)
• Simultaneous Live View
• 3 Main Streams & 3 Sub-Streams
• Client
• VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
• Web Browser
• Google Chrome© 57 and above
• Firefox© 52 and above
• Safari© 11 and above
• Microsoft© Edge 91 and above
• Cloud
• Yes
• Security
• Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

• ALARM AND EVENT MANAGEMENT

• Smart Event
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
• Basic Event
• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)
• Alarm Linkage
• Memory Card Video Recording
• Message Push
• Audible Warning
• Email Alarm
• Upload Capture to FTP
• Alarm Out Device
• Linkage Method
• N/A
• Output Notification
• Message Push
• Email Alarm
• Upload Capture to FTP

• INTERFACES

• Network Interface
• 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm
• 1 Alarm In, 1 Alarm Out
• Reset Button
• Yes
• Power
• DC Power Port
• On-board Storage
• Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*
• Built-in Microphone
• Yes; Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker
• N/A
• Audio
• 1 Audio In, 1 Audio Out

• GENERAL

• Operating Temperature
• -30-60 °C
• Storage Temperature
• -40-60 °C
• Operating Humidity
• 95% or Less (Non-Condensing)
• Storage Humidity
• 95% or Less (Non-Condensing)
• Package Contents
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Material
• Metal
• Net Weight
• Kg
• Gross Weight
• Kg
• Power Supply
• 12V DC +/- 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max.12 W
• Protection
• IP67 Weatherproof, IK10 Vandal Proof
• Product Dimensions (L x W x H)
• 10.1 × 3.9 × 4 in (256 × 100 × 101 mm)
• Certifications
• CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
