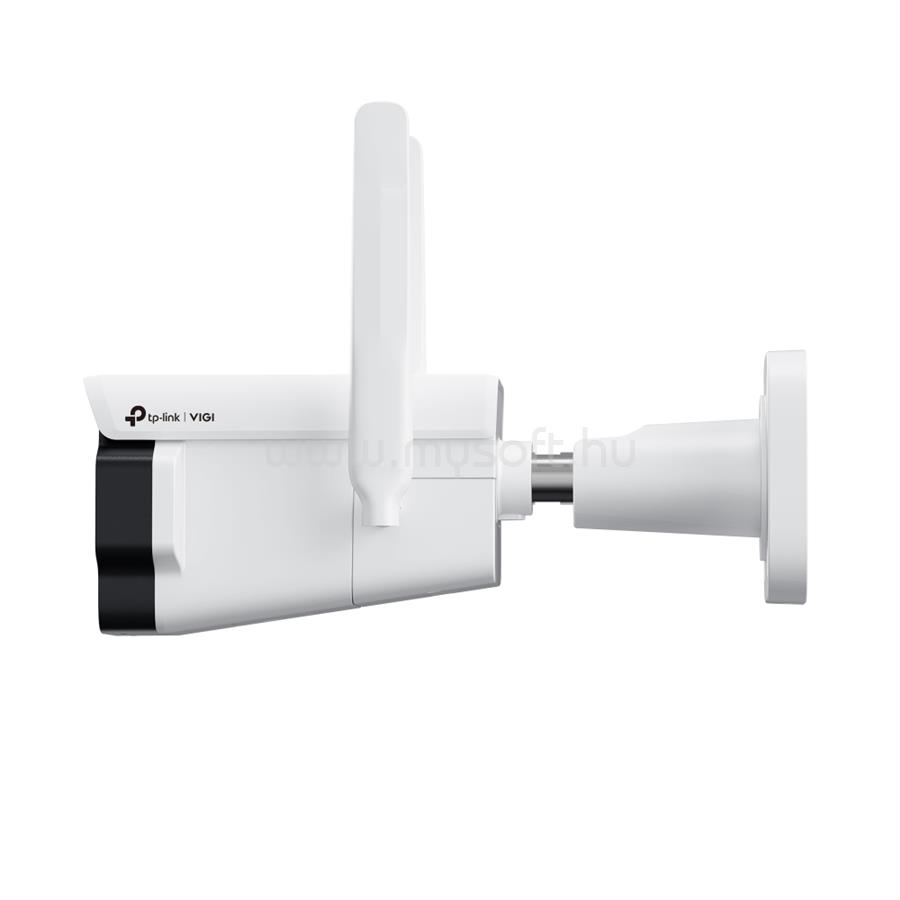

TP-LINK INSIGHT S345-4G IP CSŐKAMERA (FULLCOLOR, 4MP, 4MM, IP67, H265+, LED+IR50M, 12VDC, SD; MIKR., HANGSZ.; FÉM; SIM

• Kamera

• Képérzékelő
• 1/2.7" Progressive Scan CMOS
• Shutter Speed
• 1/3 to 1/10000 s
• Slow Shutter
• Yes
• Min. szükséges megvilágítás
• 0.005 Lux; 0 Lux with IR/White Light
• Day/Night Mechanism
• IR Cut Filter
• Day/Night Switch
• Unified/ Scheduled/ Auto

• LENS

• Type
• Fixed Focal Lens
• Focal Length
• 4 mm
• Aperture
• F1.6
• FOV
• Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°
• Lens Mount
• M12
• DORI Distance
• Detect: 80 m (262 ft)
• Observe: 33 m (109 ft)
• Recognize: 16 m (52 ft)
• Identify: 8 m (26 ft)

• Angle Adjustment (Manual)

• Range
• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotate: 0° to 360°

• ILLUMINATOR

• IR LED
• Quantity: 2
• Range: 50m
• Wavelength: 850nm
• White LED
• Quantity: 2
• Range: 30m
• Illuminator On/Off Control
• Auto/Scheduled/Always on/Always off

• VIDEO

• Max. Resolution
• 2688 X 1520
• Main Stream
• Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
• 2688x1520,2560x1440,2304x1296,2048x1280,1920x1080,1280x720
• Sub-Stream
• Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
• 848x480,704x576, 640x480, 640x360,352x288, 320x240
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control
• CBR, VBR
• Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type
• High Profile
• H.264+
• Main Stream Supported
• H.265 Type
• Main Profile
• H.265+
• Main Stream Supported
• Video Bit Rate
• Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps

• Image

• Image Settings
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• Image Enhancement
• BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range
• 120dB
• Image Parameters Switch
• Yes
• Privacy Mask
• Up to 4 Masks
• ROI
• 1 Region
• OSD Setting
• Yes

• Hang

• Hangkommunikáció
• Two-Way Audio
• Hangbemenet
• Yes (Built-in Microphone)
• Hangkimenet
• Yes (Built-in Speaker)
• Hangtömörítés
• Yes
• Audio Sampling Rate
• 8KHz
• Environment Noise Filtering
• Yes
• Audio Bit Rate
• 64 Kbps(G.711 alaw)

• Hálózat

• Szabvány
• TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
• ONVIF
• Yes
• API
• Open Network Video Interface (Profile S/G/T)
• Simultaneous Live View
• 3 Main Streams & 3 Sub-Streams
• Client
• VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
• Web Browser
• Google Chrome© 57 and above
• Firefox© 52 and above
• Safari© 11 and above
• Microsoft© Edge 91 and above
• Cloud
• Yes
• Biztonság
• Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

• 4G

• Standard
• LTE-TDD/LTE-FDD/WCDMA
• SIM Type
• Nano SIM
• Category
• 4
• Frequency
• LTE-FDD: B 1/3/5/7/8/20/28
• LTE-TDD: B 38/40/41
• WCDMA: B 1/5/8

• Figyelmeztetési és eseménykezelési vezérlés

• Smart Event
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
• Basic Event
• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception (Illegal Login)
• Alarm Linkage
• Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
• Upload to FTP server
• Send to Alarm Server
• Email Alarm

• Fizikai kezelőfelület

• Hálózati csatlakozás

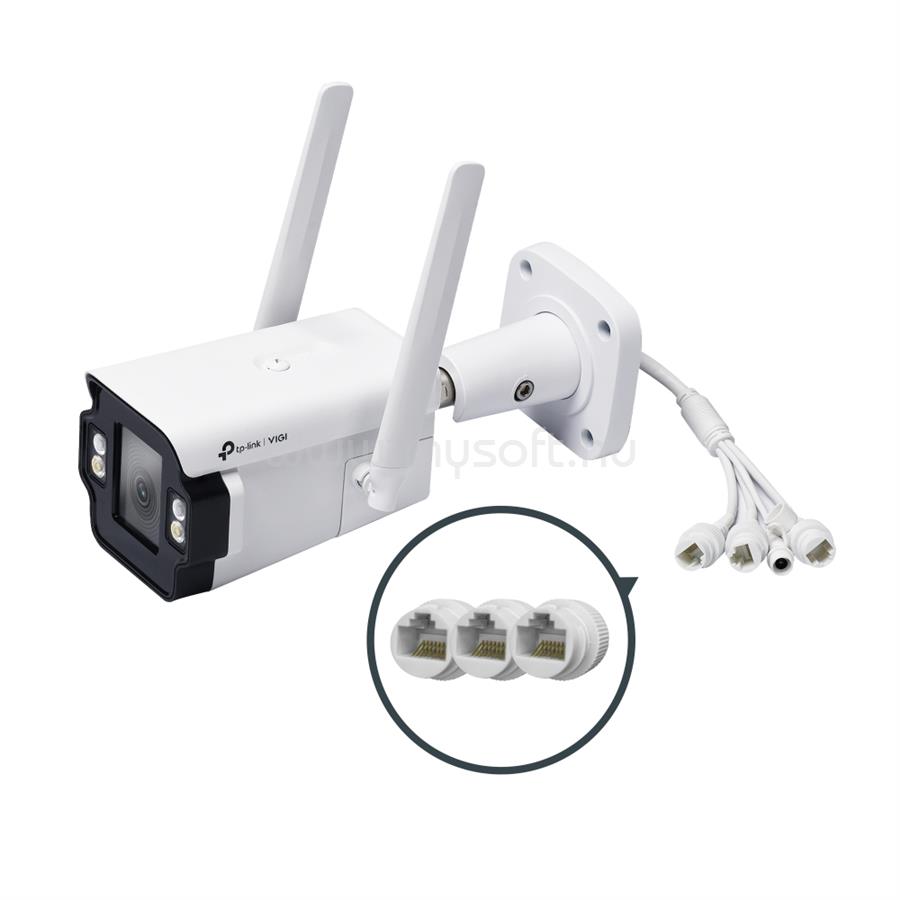

• 3 RJ45 10/100M LAN Ports
• Alarm
• N/A
• Reset Button
• Yes
• Power
• DC Power Port
• On-board Storage
• Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB*1

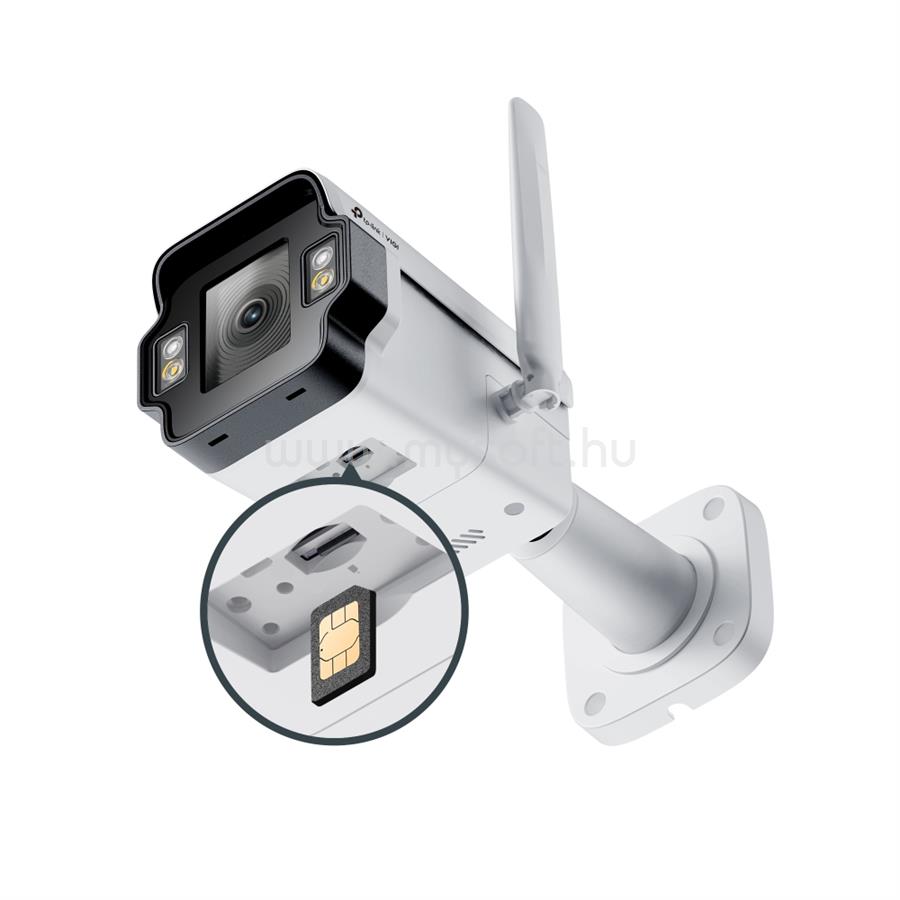

• Built-in Nano-SIM Card Slot
• Yes
• Built-in Microphone
• Yes; Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker
• Yes
• Audio
• N/A

• Általános

• Operating Temperature
• -30? to 60°C
• Storage Temperature
• -40? to 60°C
• Operating Humidity
• 95% or Less (Non-Condensing)
• Storage Humidity
• 95% or Less (Non-Condensing)
• Csomagolás tartalma
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Power Adapter
• Material
• Metal
• Net Weight
• 1.09 Kg
• Power Supply
• 12V DC/1 A, 5.5 mm Coaxial Power Plug
• Antenna
• Quantity: 2
• Type:
• 690~960&1710~2690MHz Dipole Omni-Directional Antenna
• Gain:
• Ant1:0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz
• Ant2:0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
• Protection
• IP66 Weatherproof
• Product Dimensions (L x W x H)
• 10 × 4.8 × 4.0 in (256 × 122 × 101 mm) (excluding antennas)
• Certifications
• WPS, WHQL, Energy Star, RoHS, CE, NCC,NTRA,KC,RCM,ONVIF, IP66
