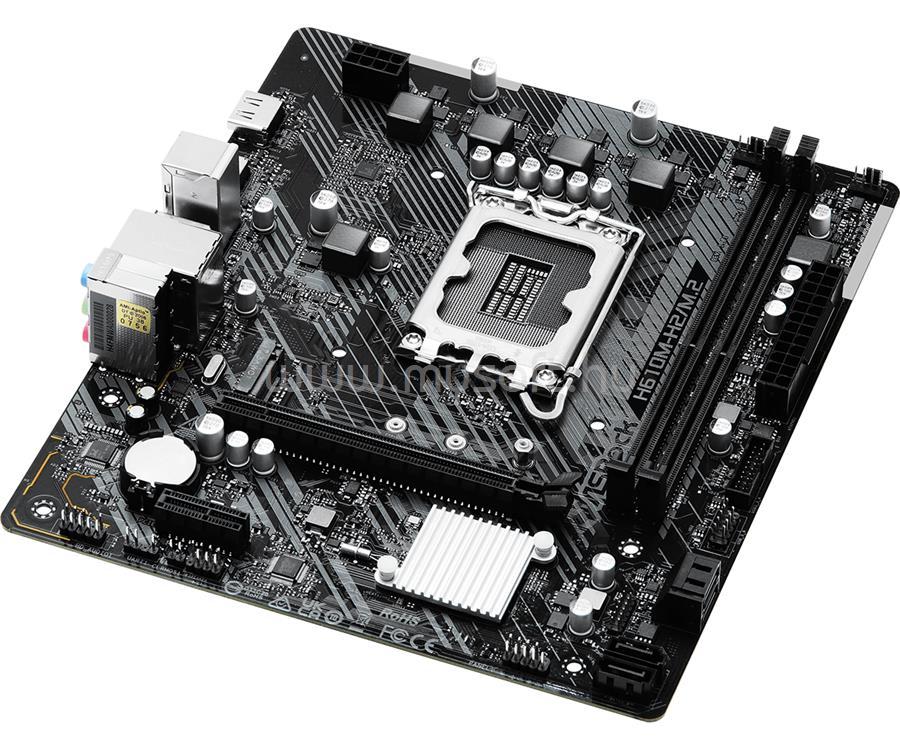

ASROCK ALAPLAP H610M-H2/M.2 (LGA1700, MATX)

• Unique Feature

• Rock-Solid Durability
• 3+1+1 Power Phase
• EZ Update
• ASRock Auto Driver Installer

• CPU

• Supports 14th, 13th & 12th Gen Intel© Core Processors (LGA1700)
• Supports Intel© Hybrid Technology
• Supports Intel© Turbo Boost Max 3.0 Technology

• Chipset

• Intel© H610

• Memory

• Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
• Supports DDR4 non-ECC, un-buffered memory up to 3200
• Supports ECC UDIMM memory modules (operate in non-ECC mode)
• Max. capacity of system memory: 64GB
• Supports Intel© Extreme Memory Profile (XMP) 2.0

• BIOS

• 128Mb AMI UEFI Legal BIOS with GUI support

• Graphics

• Intel© Xe Graphics Architecture (Gen 12)
• 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz
• * Intel© UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

• Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

• LAN

• Gigabit LAN 10/100/1000 Mb/s
• Realtek 8111H

• Slots

• CPU
• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
• Chipset
• 1 x PCIe 3.0 x1 Slot (PCIE2)*
• * Supports NVMe SSD as boot disks

• Storage

• Chipset
• 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
• 4 x SATA3 6.0 Gb/s Connectors
• * Supports NVMe SSD as boot disks

• USB

• 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
• 6 x USB 2.0 (4 Rear, 2 Front)
• * All USB ports support ESD Protection

• Connector

• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)*
• 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• * CPU_FAN1 supports the fan power up to 1A (12W).
• ** CHA_FAN1/WP supports the fan power up to 2A (24W).
• CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

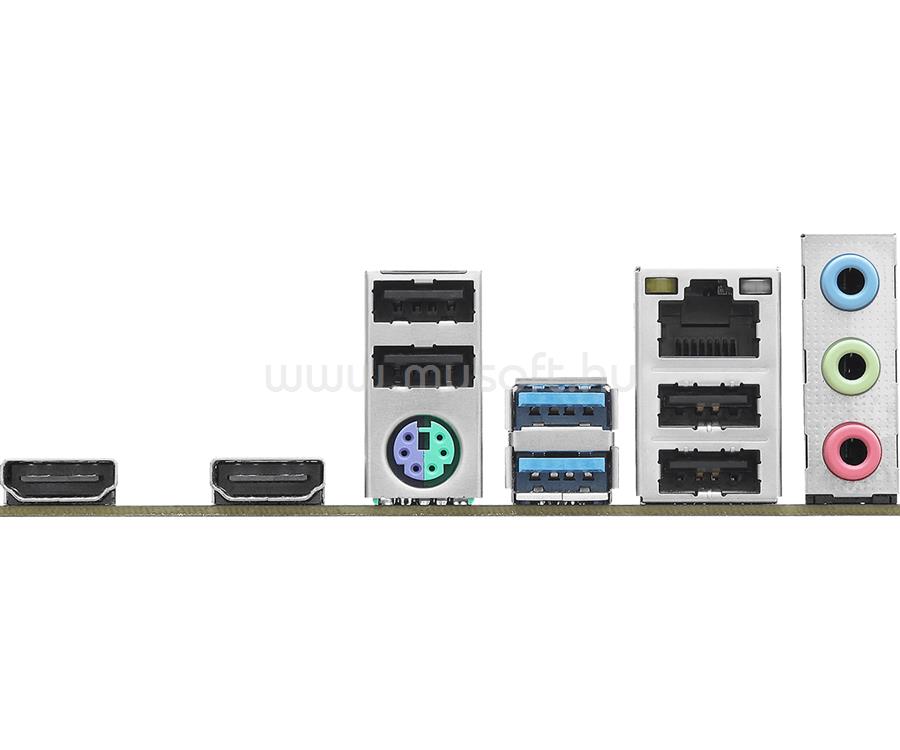

• Rear Panel I/O

• 1 x PS/2 Mouse/Keyboard Port
• 2 x HDMI Ports
• 2 x USB 3.2 Gen1 Type-A Ports
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone

• Software and UEFI

• Software
• ASRock Motherboard Utility (A-Tuning)
• UEFI
• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• *These utilities can be downloaded from ASRock Live Update & APP Shop.

• Accessories

• 1 x I/O Shield
• 2 x SATA Data Cables
• 1 x Screw for M.2 Socket

• Form Factor

• Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm

• OS

• Microsoft Windows© 10 64-bit / 11 64-bit

• Certifications

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
