GIGABYTE ALAPLAP H410M H V2 (LGA1200, MATX)

• Specification

• CPU
• Support for 10th Generation Intel© Core i9 processors/Intel© Core™ i7 processors/Intel© Core i5 processors/Intel© Core™ i3 processors/Intel© Pentium© processors/Intel© Celeron© processors in the LGA1200 package
• L3 cache varies with CPU
• Chipset
• Intel© H470 Express Chipset
• Memory
• Intel© Core i9/i7 processors:
• Support for DDR4 2933/2666/2400/2133 MHz memory modules
• Intel© Core i5/i3/Pentium©/Celeron© processors:
• Support for DDR4 2666/2400/2133 MHz memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Onboard Graphics
• Integrated Graphics Processor-Intel© HD Graphics support:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
• * Support for HDMI 1.4 version and HDCP 2.3.
• Maximum shared memory of 512 MB
• Audio
• Realtek© Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• LAN
• Intel© GbE LAN chip (1 Gbit/100 Mbit)
• Expansion Slots
• 1 x PCI Express x16 slot, running at x16
• 2 x PCI Express x1 slots
• (The PCI Express slots conform to PCI Express 3.0 standard.)
• Supports up to ASPM L1.2 power management protocols.
• Storage Interface
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 5, and RAID 10
• Intel© Optane™ Memory Ready
• M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
• USB
• Chipset:
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x RGB LED strip header
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

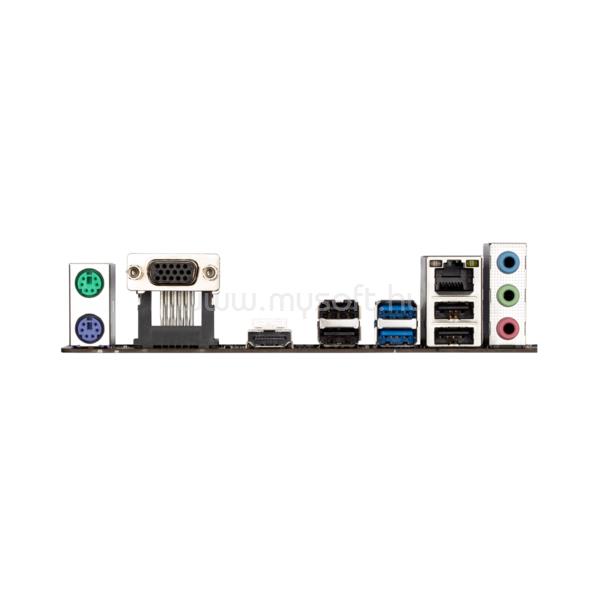

• Back Panel Connectors
• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks
• I/O Controller
• iTE© I/O Controller Chip
• H/W Monitoring
• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
• BIOS
• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
• Support for APP Center
• @BIOS
• Ambient LED
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• Smart Backup
• System Information Viewer
• Support for Q-Flash
• Support for Xpress Install
• Bundled Software
• Norton© Internet Security (OEM version)
• cFosSpeed
• Operating System
• Support for Windows 10 64-bit
• Form Factor
• Micro ATX Form Factor; 22.6cm x 18.5cm

Garancia fogyasztók részére

• 1 év kötelező jótállás + 2 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
