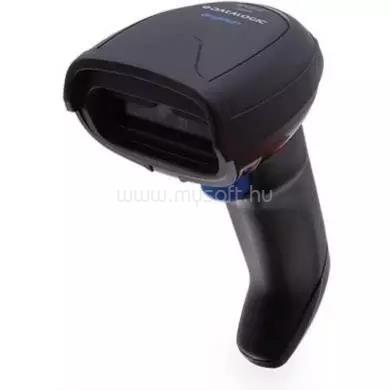

DATALOGIC GRYPHON GM4200, KIT, USB, 433 MHZ, BLACK (KIT INCLUDES SCANNER, WLC4190-BK-433 BASE AND USB CABLE 90A052258)

• CORDLESS COMMUNICATIONS

• Gryphon GM4200
• Datalogic STAR Cordless System:
• Effective Radiated Power: 433.92 MHz: < 6.3 mW;
• 910 MHz: < 50 mW; Multi-Point Configuration: Max.
• Readers per Radio Receiver: 16; Point-to-Point
• Configuration; Radio Frequency: 433.92 MHz; 910 MHz;
• Two Way Communications
• Radio Range (Open Air): 50.0 m / 164.0 ft

• DECODING CAPABILITY

• 1D / Linear Codes
• Auto discriminates all standard 1D codes including GS1 DataBar linear codes.

• CORDLESS MODELS ELECTRICAL

• Battery
• Battery Type: Lithium-Ion: 2550 mAh
• Charge Time: External Power: 4 Hours @ 12 VDC;
• Reads per Charge: 80,000
• Cradle Indicator LEDs
• Battery Charging (flashing orange);
• Charge Completed (steady green)
• Current
• Charging (with WLC4190): < 1200 mA (Maximum);
• Scanner only: Max 750 mA (from battery)
• Cradle only: (WLC4190): 80 mA @ 5 V (Operative)
• Input Voltage (Cradle)
• 4.5 - 14 VDC +/- 5% (WLC4190 / WLC4090)

• ENVIRONMENTAL

• Ambient Light
• 0 - 130,000 lux
• Drop Resistance
• Withstands repeated drops from 1.8 m / 6.0 ft onto a
• concrete surface.
• ESD Protection (Air Discharge)
• 16 kV
• Humidity (Non-Condensing)
• 0 - 95%
• Particulate and Water Sealing
• IP52
• Temperature
• Operating: 0 to 50 oC / 32 to 122 oF
• Storage: -20 to 70 oC / -4 to 158 oF

• INTERFACES

• Interfaces
• CORDLESS MODELS:
• WLC4190: USB Type C / USB / RS-232 Multi-Interface
• WLC4090: USB / RS-232 Multi-Interface

• PHYSICAL CHARACTERISTICS

• Dimensions
• 16.6 x 6.8 x 10.9 cm / 6.5 x 2.7 x 4.3 in (corded/cordless models)
• Weight
• 235 g / 8.29 oz (cordless models, battery included)

• READING PERFORMANCE

• Imager Sensor
• CCD Solid-State
• Light Source
• Illumination: Dual LED Array 612 - 630 nm
• Read Rate (Maximum)
• 1,000,000 pixels/sec (400 reads/sec)
• Print Contrast Ratio (Minimum)
• 15%
• Reading Angle
• Pitch: +/- 65°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 65°
• Reading Indicators
• Beeper (adjustable tone); Datalogic Three Green Lights
• (3GL) Good Read Feedback: Datalogic 'Green Spot' on the
• Code, Dual Good Read LEDs
• Resolution (Maximum)
• 0.077 mm / 3 mils

• READING RANGES

• Typical Depth of Field
• Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent.
• Code 39: 5 mils: 5.0 to 37 cm / 2.0 to 14.6 in
• Code 39: 7.5 mils: 5.0 to 54 cm / 2.0 to 21.3 in
• Code 39: 10 mils: 5.0 to 73.5 cm / 2.0 to 28.9 in
• Code 39: 20 mils: 2.5 to 147 cm / 1 to 57.9 in
• EAN/UPC: 13 mils: 3.5 to 90 cm / 1.4 to 35.4 in

• SAFETY & REGULATORY

• Agency Approvals
• The product meets necessary safety and regulatory approvals for its intended use.
• The Quick Reference Guide for this product can be referred to for a complete list of certifications.
• Environmental Compliance
• Complies to China RoHS; Complies to EU RoHS
• LED Classification
• Exempt group according to IEC 62471

• UTILITIES

• Datalogic Aladdin
• Datalogic Aladdin configuration program is available for download at no charge.
• OPOS / JavaPOS
• JavaPOS and OPOS Utilities are available for download at no charge.
• Remote Host Download
• Lowers service costs and improves operations
