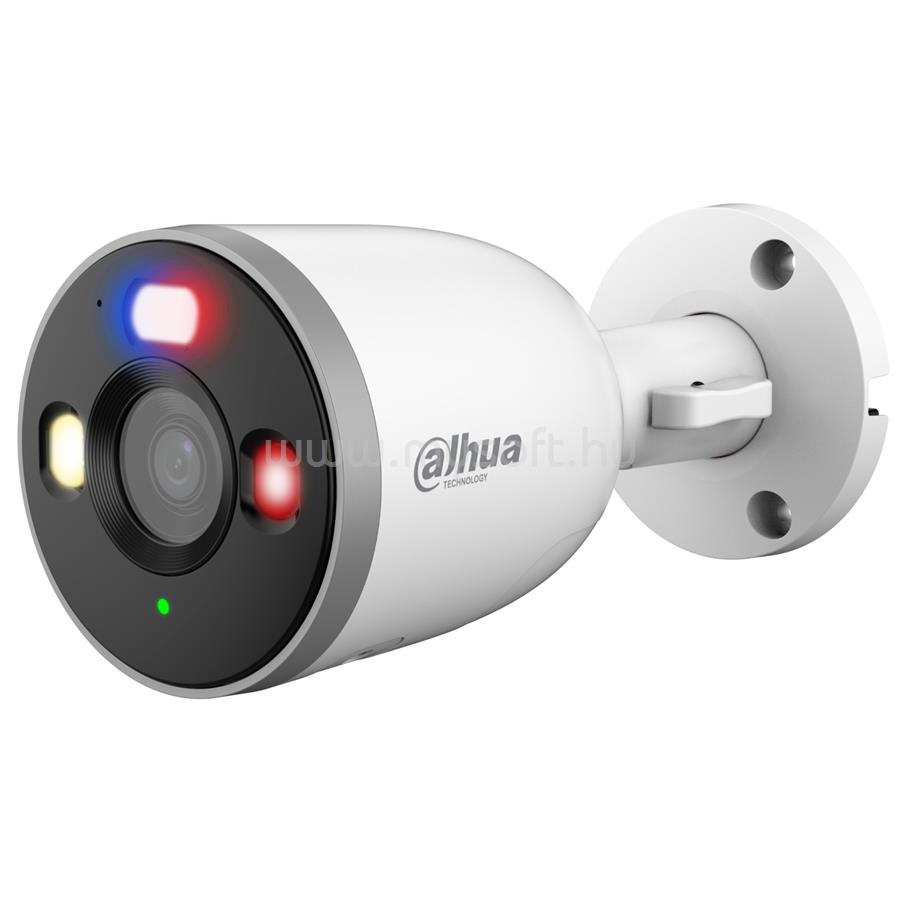

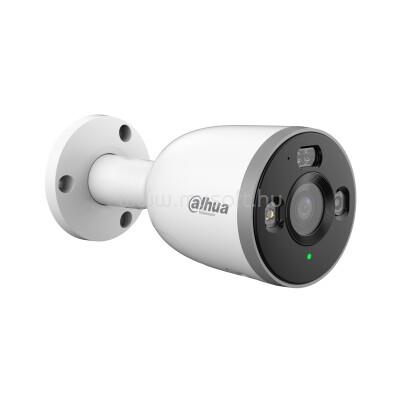

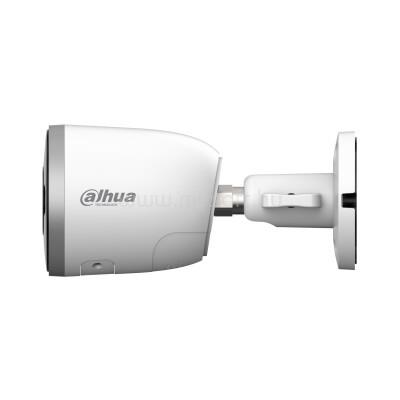

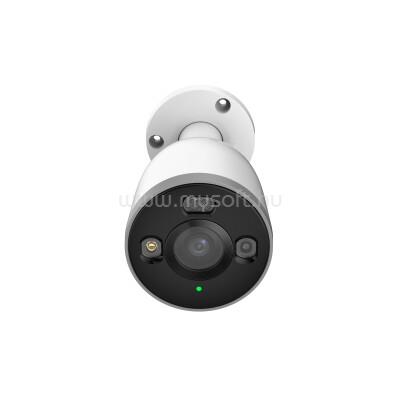

DAHUA F3D-PV IP WIFI CSŐKAMERA (3MP, 2,8MM, KÜLTÉRI, 2,4GHZ; H265, IR+LED30M, IP67, SD; MIKROFON; HANGSZÓRÓ 12VDC)

• Camera

• Image Sensor
• 1/2.8" CMOS
• Max. Resolution
• 2304 (H) × 1296 (V)
• Min. Illumination
• 0.005 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
• Illumination Distance
• Up to 30 m (98.43 ft) (IR)
• Up to 30 m (98.43 ft) (Warm light)
• Illuminator Number
• 1 (IR LED); 1 (Warm light)
• Angle Adjustment
• Tilt: 0°-90°
• Rotation: 0°-360°
• Lens Type
• Fixed-focal
• Focal Length
• 2.8 mm; 3.6 mm
• Max. Aperture
• F1.6
• Field of View
• 2.8 mm: H: 103°; V: 55°; D: 123°
• 3.6 mm: H: 85°; V: 46°; D: 100°

• Intelligence

• Human Detection
• Yes
• Vehicle Detection
• Yes

• Audio and Video

• Video Compression
• H.264B; H.264; H.264H; H.265
• Video Frame Rate
• Main stream: 2304 × 1296@(1-25/30 fps)
• sub stream: 640 × 360@(1-25/30 fps)
• *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Video Bit Rate
• H.264: 32 kbps-4096 kbps;
• H.265: 32 kbps-4096 kbps
• Day/Night
• Auto(ICR)/Color/B/W
• WDR
• DWDR
• Motion Detection
• OFF/ON (4 areas, rectangular)
• Image Rotation
• 0°/180°
• Built-in MIC
• Yes, built-in Mic
• Built-in Speaker
• Yes, built-in speaker
• Audio Compression
• G.711a; G.711Mu; PCM

• Network

• Network Port
• RJ-45 (10/100 Base-T)
• Wi-Fi
• IEEE 802.11b/g/n/ax 2.4000-2.4835 GHz, 2.4 G, EIRP?20 dBm
• Wi-Fi Pairing
• Bluetooth pairing
• Interoperability
• ONVIF (Profile S & Profile G & Profile T); CGI
• Storage
• Micro SD card (support max. 256 GB)
• Management Software
• Smart PSS Lite; DSS; DMSS
• Mobile Client
• Android;iOS

• General

• Certifications
• CE-LVD: EN62368-1;
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
• CE-RED: Radio Equipment Directive 2014/53/EU
• Power Supply
• 12 VDC
• Power Consumption
• Basic: 2.2 W (12 VDC);
• Max.: 7.3 W (12 VDC) (H.265 + warm light intensity + sound and light alarm)
• Operating Temperature
• -40 °C to +60 °C (-40 °F to +140 °F)
• Operating Humidity
• ?95% (RH), non-condensing
• Protection
• IP67
• Camera Button
• Reset button
• Casing Material
• Metal + plastic
• Product Dimensions
• 158.3 mm × ?76.8 mm (6.23" × ?3.02")
• Net Weight
• 0.34 kg (0.75 lb)

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
