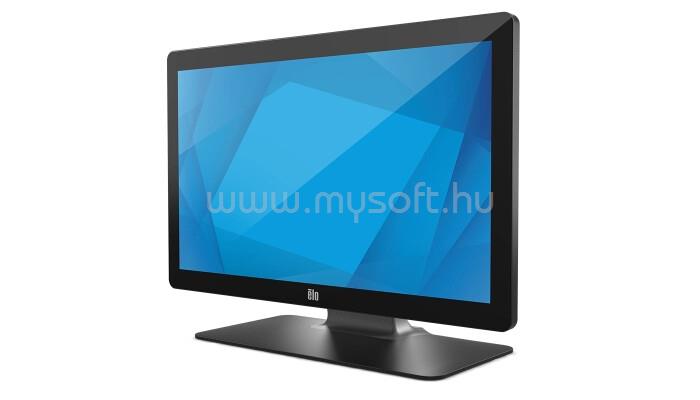

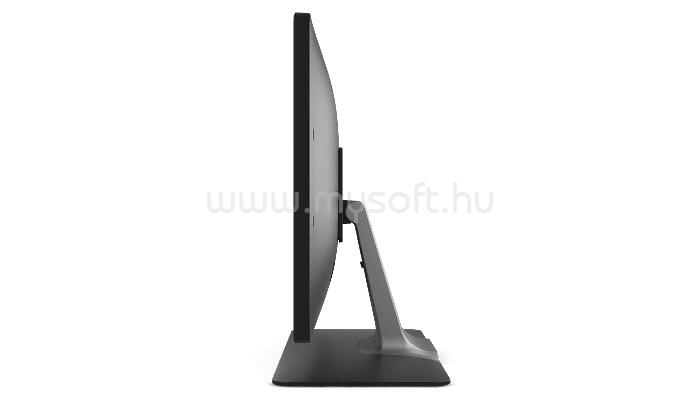

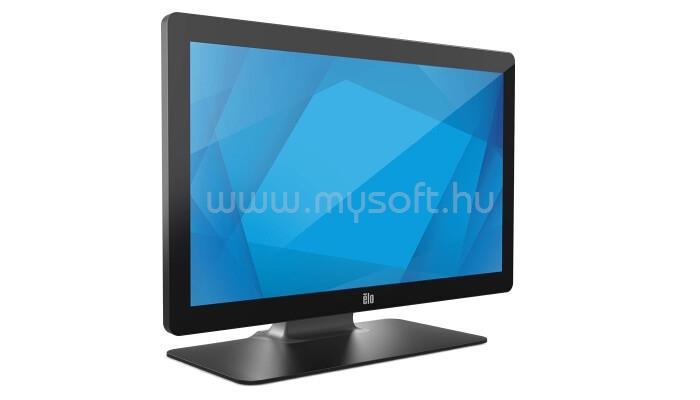

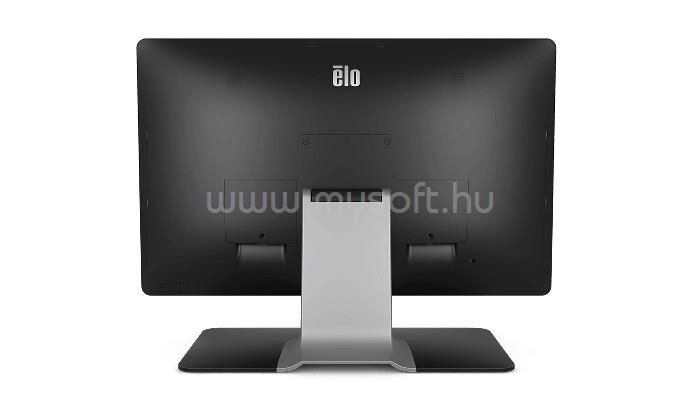

ELO TOUCH 2202L CLEAR TOUCHPRO PCAP ÉRINTŐKÉPERNYŐS MONITOR ÁLLVÁNNYAL

• Specification

• Touch Technology & Capacity
• PCAP (TouchPro© Projected Capacitive) - 10 Touch
• Diagonal Size
• 21.5'' diagonal, Active matrix TFT LCD (LED)
• Aspect Ratio
• 16:9
• Active Area
• 18.74" x 10.54" / 476.06 mm x 267.79 mm
• Resolution
• 1920 x 1080 @ 50, 60Hz
• Other Supported Resolutions
• 640 x 480 60Hz
• 640 x 400 70Hz
• 720 x 400 70Hz
• 800 x 500 60Hz
• 800 x 600 56Hz, 60Hz
• 1024 x 768 60Hz
• 1280 x 720 @ 58Hz, 60Hz
• 1280 x 800 60Hz
• 1280 x 1024 60Hz
• 1366 x 768 60Hz, 60Hz RB
• 1440 x 900 60Hz, 60Hz RB
• 1680 x 1050 60Hz, 60Hz RB
• Viewing Angle
• Horizontal: +/-89° or 178° total / Vertical: +/-89° or 178° total
• Number of Colors
• 16.7 million
• Brightness (typical)
• TouchPro PCAP: 225 nits
• Response Time-total (typical)
• 14 msec
• Contrast Ratio
• 1000:1
• Touch Interface
• USB
• Surface Treatment
• Clear
• On Screen Display
• Accessible through switches along the bottom:
• Controls: Menu, Up, Down, Select
• Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru
• Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean
• Lockouts: OSD, Power
• I/O Ports
• VGA
• HDMI
• Combo Jack
• DC jack
• USB Type B
• USB 2.0 Type A
• 4x Micro USB
• Speakers
• Two x 2W internal speakers
• Input Video Format
• VGA (VGA DE-15 (DB-15) Male connecter cable included)
• HDMI (HDMI cable included)
• Input Video Frequency
• Horizontal: 30 - 82KHz
• Vertical: 50 - 75Hz
• Power Consumption (Typical)
• Monitor + AC/DC adapter
• ON (Default - 80% Brightness): 14.80 W
• ON (Typical - 100% Brightness): 16.78 W
• SLEEP: 0.69 W
• OFF: 0.28 W
• Input Voltage
• 12VDC +/- 5%
• 100-240VAC, 50/60Hz
• Input Connector
• Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)
• Peripheral Mounting
• 4x Micro USB side ports (Top, Bottom, Left, Right)
• Monitor Dimensions (without Stand)
• 12.87" x 20.74" x 1.68" / 326.9 mm x 526.9 mm x 42.7 mm
• Monitor Dimensions (with Stand)
• 15.11" x 20.74" x 7.61" / 383.8 mm x 526.9 mm x 193.4 mm
• Shipping Box Dimensions
• With Stand: 18.78" x 24.29" x 10.24" / 477 mm x 617 mm x 260 mm
• Weight (Unpackaged)
• With Stand: 14.88 lbs / 6.75 kg
• Weight (Packaged)
• With Stand: 23.81 lbs / 10.8 kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%; Storage: 10% to 95% (38.7? max wet bulb temperature)
• Sealability
• Touchscreen sealed to bezel; Touchscreen sealed to LCD
• MTBF
• 50,000 hours demonstrated
• Mounting Options
• VESA 4-hole 100mm mounting interface on rear of unit
• Ingress Protection
• IPX1 - Front only
• Impact Protection
• IK06

• What's in the Box

• Touchmonitor
• Quick Install Guide
• 3x Tie wraps
• VGA cable
• HDMI cable
• Touch USB cable
• Audio cable
• Power brick
• NA Power cable
• EU Power cable
• EEI Label
• 4 screws (for E126096, E992622)

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
