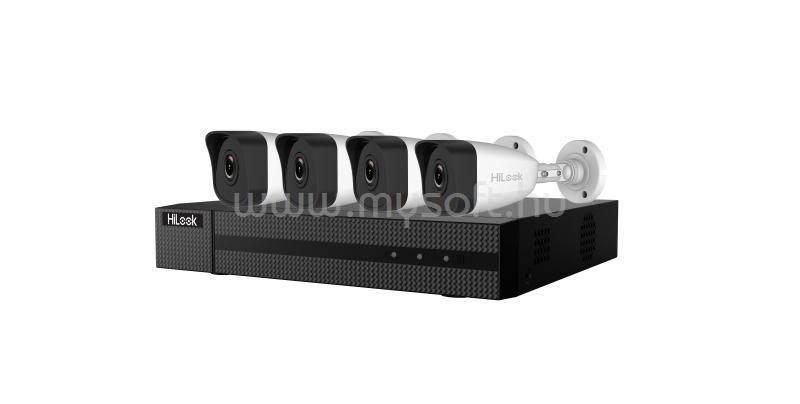

HILOOK DS-J142I(STD)/IK-4142BH-MH/P(C) IP KAMERA SZETT, 4X2MP CSŐKAMERÁVAL, BEÉPÍTETT 1TB HDD-VEL

• Camera

• Camera Case Type
• Bullet
• Image Sensor
• 1/2.8" Progressive Scan CMOS
• Min. Illumination
• 0.028 Lux
• Shutter Speed
• 1/3 s to 1/100,000 s
• Day &Night
• IR cut filter
• WDR
• DWDR
• Angle Adjustment
• Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
• Protection Level
• IP67
• Material
• Front cover: metal, back cover & bracket: plastic
• Wi-Fi Support
• No

• Camera/General

• Power Supply
• 12 VDC +/- 25%, ? 5.5 mm coaxial plug power, or PoE (802.3af, class 3)
• Consumption
• 12 VDC, 0.3 A, Max: 3.5 W, or PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W
• Working Temperature
• -30 °C to 60 °C (-22 °F to 140 °F)
• Working Humidity
• 95% or less (non-condensing)
• Dimension (W × D × H)
• 70 mm × 172.7mm (2.8" × 6.8")
• Approx. 270 g (0.6 lb)

• Camera/Lens

• Focal Length
• 2.8 mm
• Aperture
• F2.0
• Focus
• Fixed
• FOV
• Horizontal FOV: 114.8°, vertical FOV: 62°, diagonal FOV: 135.5°
• Lens Mount
• M12

• Camera/IR

• IR Range
• Up to 30 m

• Camera/Compression Standard

• Video Compression
• H.265+;H.265;H.264+;H.264;MJPEG
• H.264 Type
• Main Profile/High Profile/Baseline Profile
• H.264+
• Main Profile
• H.265 Type
• Main Profile
• H.265+
• Main Profile
• Video Bit Rate
• 32 Kbps to 8 Mbps

• Camera/Image

• Max. Resolution
• 2MP
• Main Stream
• 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
• 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-stream
• 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
• 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
• Image Setting
• Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch
• Auto/Scheduled/Day/Night

• Camera/Network

• Alarm Trigger
• Motion detection, video tampering alarm, illegal login
• Protocols
• TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
• General Function
• Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Client
• iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

• Camera/Interface

• Communication Interface
• 1 RJ45 10M/100M self-adaptive Ethernet port
• On-board Storage
• N/A
• Audio I/O
• No
• Video Out
• No
• Alarm I/O
• No
• Reset Button
• No

• NVR/Video and Audio

• IP Video Input
• 4-ch
• Incoming/Outgoing Bandwidth
• 40 Mbps/60 Mbps
• HDMI/VGA Output
• 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• NVR/Decoding

• Decoding Format
• H.265+;H.265;H.264+;H.264
• Capability
• 2-ch@1080p/1-ch@4 MP

• NVR/Network

• Network Interface
• 1, RJ45 10/100M Ethernet interface
• Network Protocol
• IPv6, UPnP™, NTP, SADP, DHCP
• Remote Connection
• 16

• NVR/PoE

• Interface
• 4-ch
• Power
• ? 36 W
• Standard
• IEEE 802.3 af/at

• NVR/Auxiliary Interface

• SATA
• 1
• Capacity
• Up to 6 TB capacity for each disk
• USB Interface
• Rear panel: 2 × USB 2.0
• Alarm In/Out
• No

• NVR/General

• Power Supply
• 48 VDC
• Consumption (without HDD and PoE off)
• < 10 W
• Working Temperature
• -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity
• 10% to 90%
• Dimension (W × D × H)
• 265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
• Weight (without hard disk)
• < 1 kg (2.2 lb)

• Kit

• Accessories
• Power: 1 power cable
• Network cable: 4 × 18.3 m (60 ft) video and power cable
• HDMI cable: 1 HDMI cable
• Hard Drive
• Pre-installed 1 TB HDD
• Certification
• FCC, CE
• Weight (with package)
• < 6.5 kg (14.3 lb)

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
