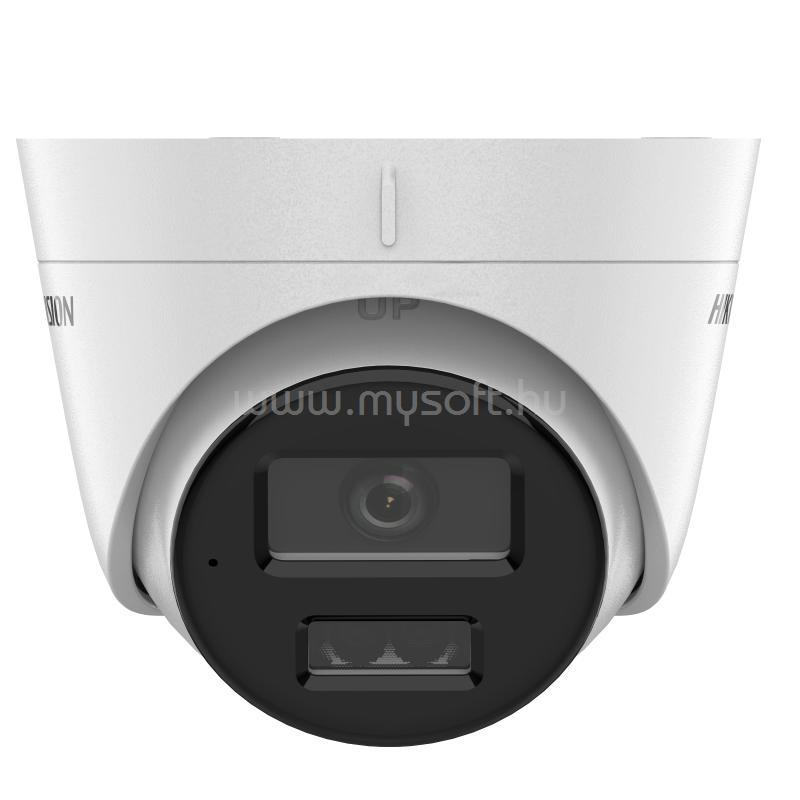

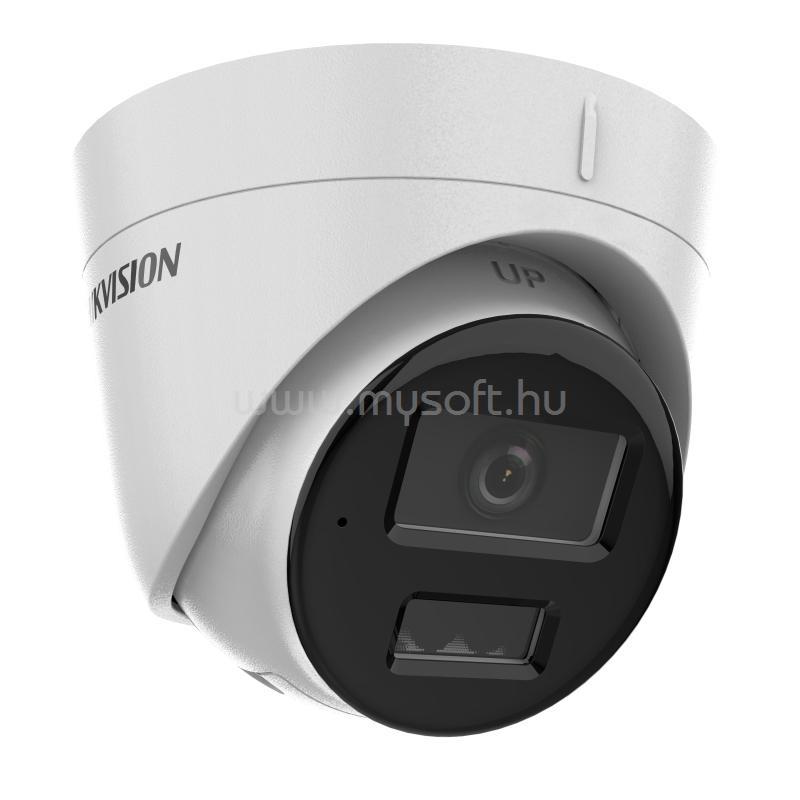

HIKVISION DS-2CD1323G2-LIU IP TURRETKAMERA (2MP, 2,8MM, KÜLTÉRI, H265+, IP67, IR30M, ICR, DWDR, 3DNR, POE)

• Camera

• Image Sensor
• 1/2.9" Progressive Scan CMOS
• Max. Resolution
• 1920 × 1080
• Min. Illumination
• Color: 0.005 Lux @ (F1.6, AGC ON)
  B/W: 0 Lux with IR
• Shutter Time
• 1/3 s to 1/100,000 s
• Day & Night
• IR cut filter
• Angle Adjustment
• Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

• Lens

• Lens Type
• Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV
• 2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
  4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
• Lens Mount
• M12
• Iris Type
• Fixed
• Aperture
• F1.6
• DORI
• 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m
  4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

• Illuminator

• Supplement Light Type
• IR, White Light
• Supplement Light Range
• Up to 30 m
• Smart Supplement Light
• Yes
• IR Wavelength
• 850 nm

• Video

• Main Stream
• 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
  60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream
• 50 Hz: 25 fps (640 × 480, 640 × 360)
  60 Hz: 30 fps (640 × 480, 640 × 360)
• Video Compression
• Main stream: H.265+/H.265/H.264+/H.264
  Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate
• 32 Kbps to 8 Mbps
• H.264 Type
• Baseline Profile, Main Profile, High Profile
• H.265 Type
• Main Profile
• Bit Rate Control
• CBR, VBR
• Region of Interest (ROI)
• 1 fixed region for main stream

• Audio

• Audio Type
• Mono sound
• Environment Noise Filtering
• Yes
• Audio Sampling Rate
• 8 kHz / 16 kHz
• Audio Compression
• G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
• Audio Bit Rate
• 64 Kbps (G.711 ulaw) / 64 Kbps (G.711 alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 160 Kbps (MP2L2) / 16 to 64 Kbps (AAC-LC)

• Network

• Security
• Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View
• Up to 6 channels
• API
• Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
• Protocols
• TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
• User/Host
• Up to 32 users (3 user levels: administrator, operator, and user)
• Client
• iVMS-4200, Hik-Connect
• Web Browser
• Plug-in required live view: IE 10, IE 11
  Local service: Chrome 57.0+, Firefox 52.0+

• Image

• Wide Dynamic Range (WDR)
• Digital WDR
• SNR
• ? 52 dB
• Day/Night Switch
• Day, Night, Auto, Schedule
• Image Enhancement
• BLC, HLC, 3D DNR
• Image Settings
• Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Privacy Mask
• 4 programmable polygon privacy masks

• Interface

• Ethernet Interface
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage
• -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone
• Yes
• Reset Key
• -F: Yes

• Event & Linkage

• Basic Event
• Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Linkage
• Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

• General

• Power
• 12 VDC ? 25%, 0.4 A, max. 5 W, ?5.5 mm coaxial power plug, reverse polarity protection
  PoE: IEEE 802.3af, Class 3, max. 6.5 W
• Material
• Metal & Plastic
• Dimension
• ?110 mm × 89.2 mm (?4.3" × 3.5")
• Package Dimension
• 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Weight
• Approx. 340 g (0.7 lb.)
• With Package Weight
• Approx. 560 g (1.2 lb.)
• Storage Conditions
• -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions
• -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language
• English, Ukrainian
• General Function
• Heartbeat, anti-banding, mirror, password protection, password reset via email
