DIGITUS DN-37104 19" 9U 474X600X450MM LAPRASZERELT ÜVEGAJTÓS SZÜRKE DYNAMIC-N FALI RACK SZEKRÉNY

• Technical details

• Protection class IP20

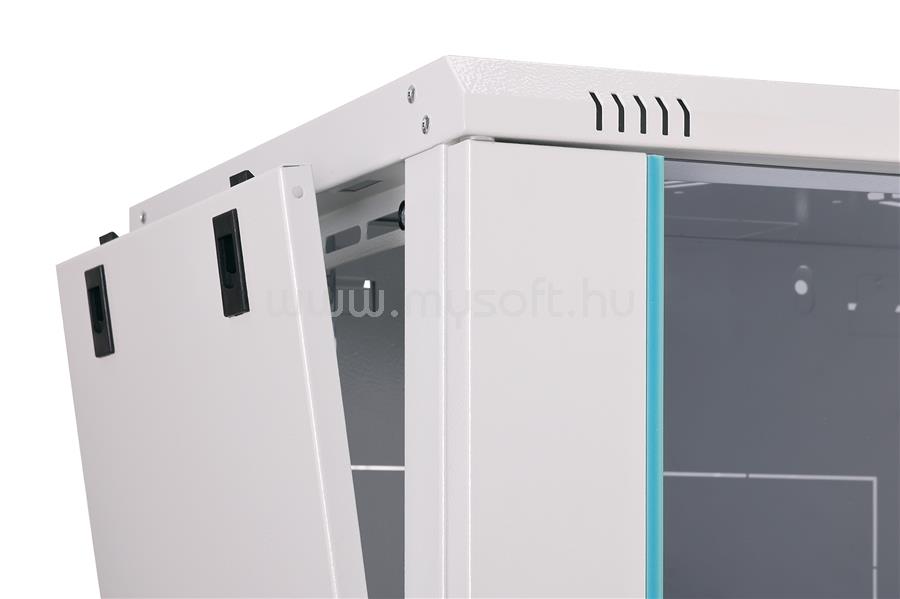

• Lockable safety glass door with steel frame
• 230° door opening angle
• 1-point locking on the front door

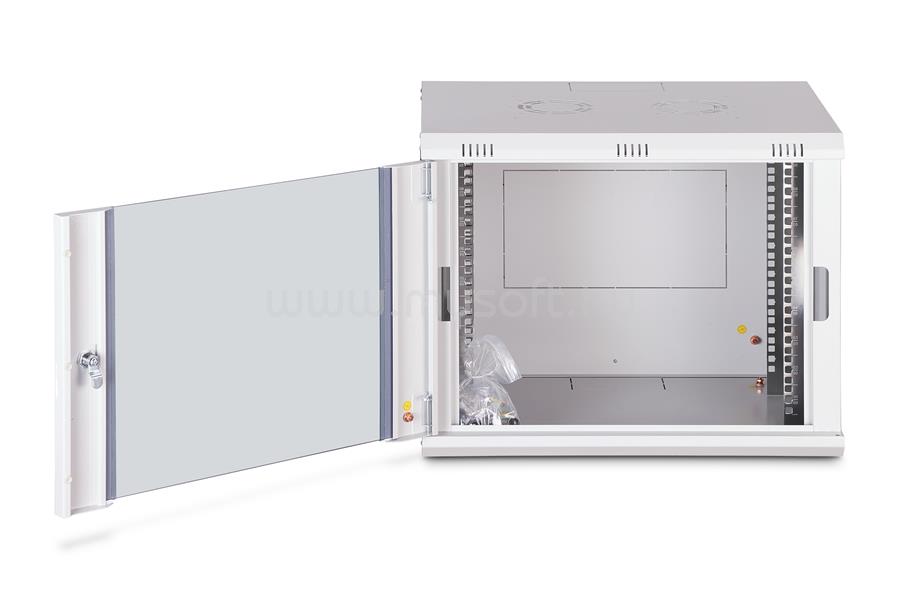

• 483 mm (19") profile rails at the front and rear inside the enclosure, galvanized

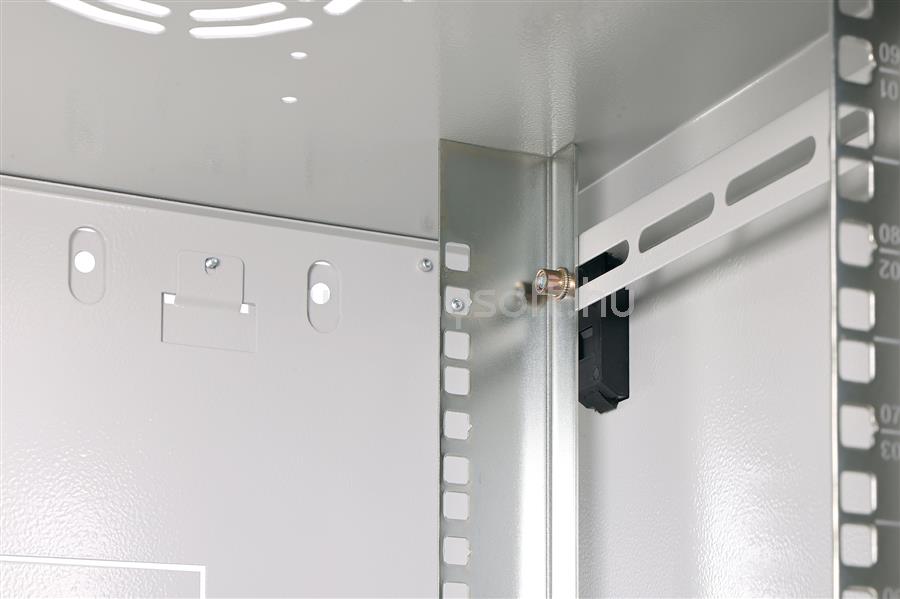

• 483 mm (19") profile rails are adjustable in depth and marked with the height unit
• 1.0 - 1.2 mm robust sheet steel with high load-bearing capacity, powder-coated
• Cable entry possible at the rear, roof and base (pre-punched cut-outs)

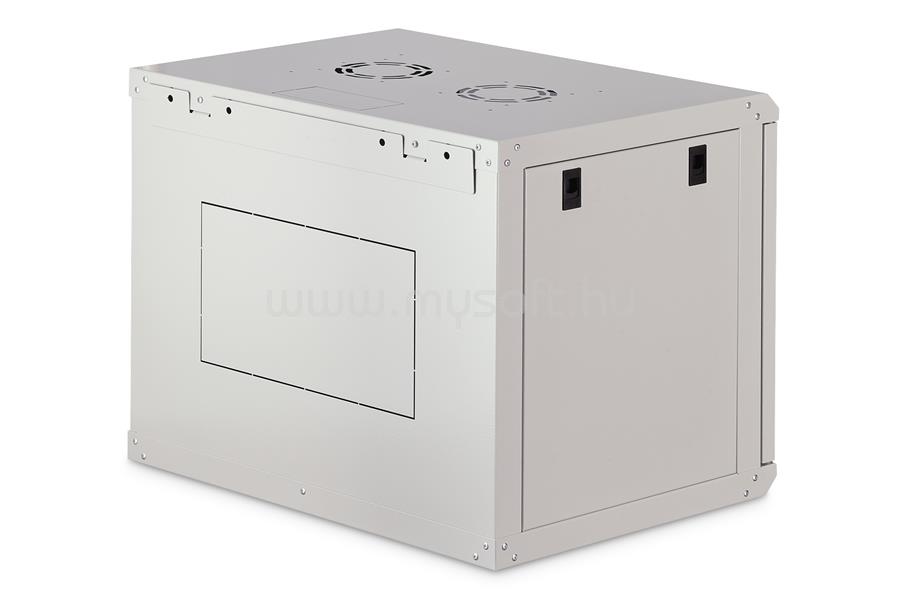

• Roof is prepared to accommodate a fan element (punched-out mounts)
• Ventilation slots for active and passive ventilation
• 4 earthing points (base, side panel and front door) with protective cap
• Installation depth for components (standard maximum): 219 - 320 mm

• Attributes

• Cabinet type
• Wall mounting cabinet
• Color
• light grey, RAL 7035
• Depth
• 450 mm
• Front door
• Glass door, single opening
• Load capacity
• 60 kg
• Rear door
• Rear wall
• Side panels
• Both sides
• Units
• 9
• Width
• 600 mm
• IP protection class
• IP20
• Mounted
• no

• Package content

• Earthing cable set
• Installation set (screws, cage nuts, washers)
• 2 x key
• Assembly instructions

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 2 év gyártó által biztosított szervizgarancia
