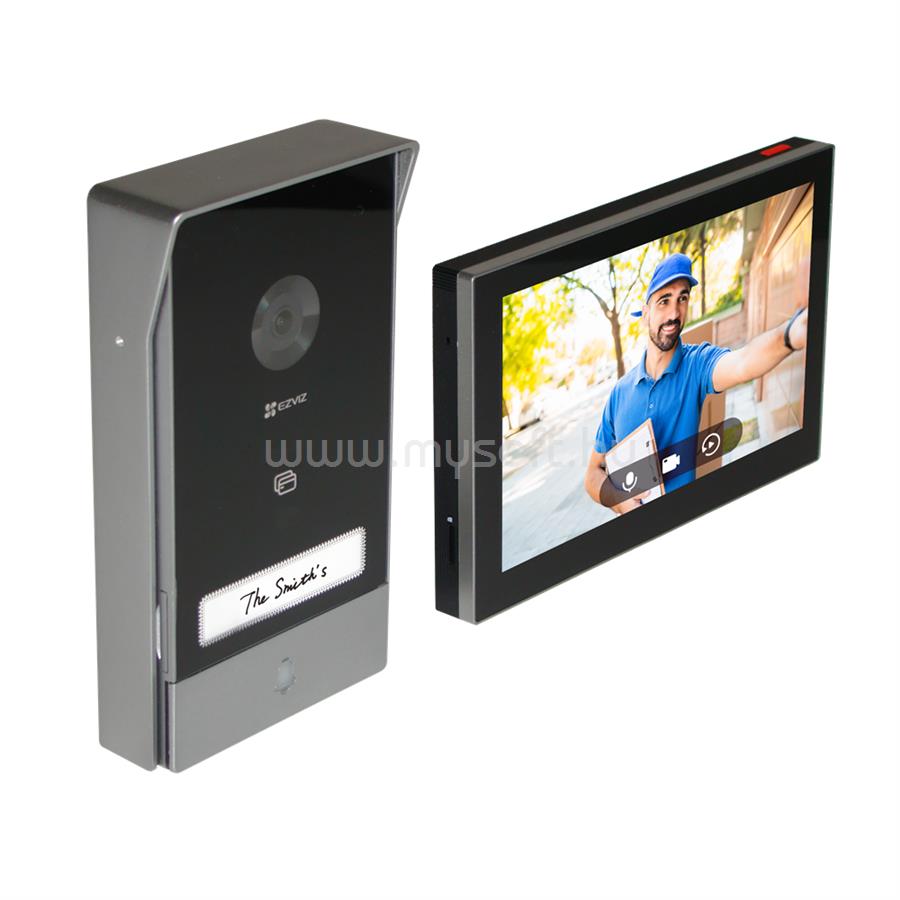

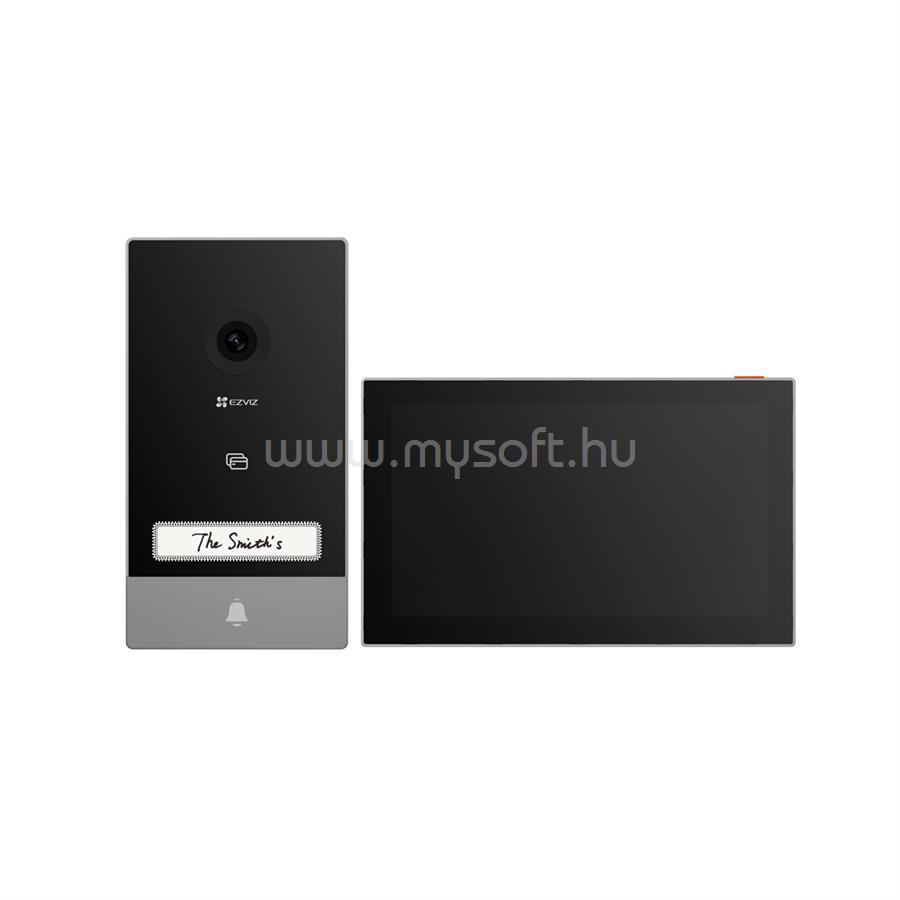

EZVIZ HP7 VEZETÉK NÉLKÜLI VIDEÓ KAPUTELEFON ÉRINTŐKIJELZŐVEL

• Model
• CS-HP7-R100-1W2TFC

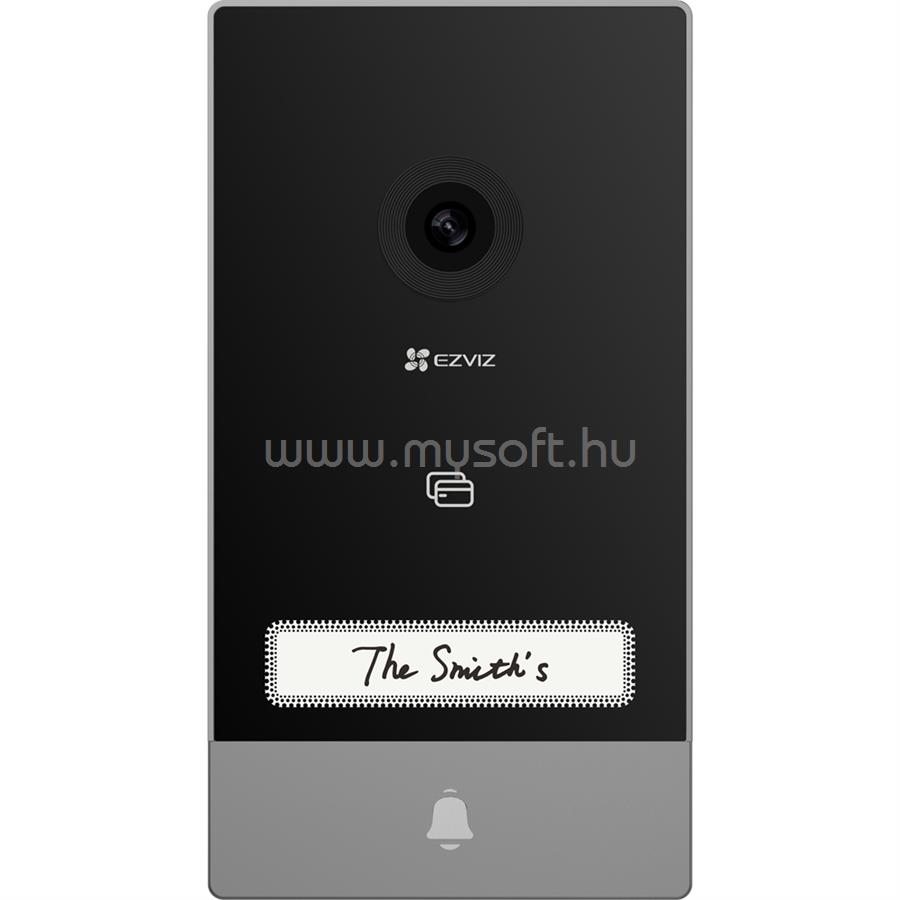

• Outdoor Doorbell

• Image Sensor
• 1/2.7" Progressive Scan CMOS (Supports low light sensitivity)
• Lens
• 2.0 mm @ F2.2,viewing angle: 162° (Diagonal)
• Day & Night
• IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m)
• Max. Resolution
• 2048 × 1296
• DNR
• 2D / 3D DNR
• Video Compression
• H.265 / H.264
• Frame Rate
• Max: 15fps; Self-Adaptive during network transmission

• Connection and Function

• Connection Method
• Wired connection (2-Wired, capable with 4-Wired), digital signal transmission
• Transmission Distance
• 2 x 0.75mm2 , max. 50m 2 x 1.5mm2 , max. 100m Twisted pair, max. 120m
• Open the door (Gate)
• Support 2 wiring ports. 1-10m distance. The intercom panel provides a "dry"-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A
• Unlock (Electric strike plate)
• Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual.
• Door Open Methods
• 1.RFID badge unlock (Badges × 3 pcs) 2.App remote unlock 3.Indoor display unlock

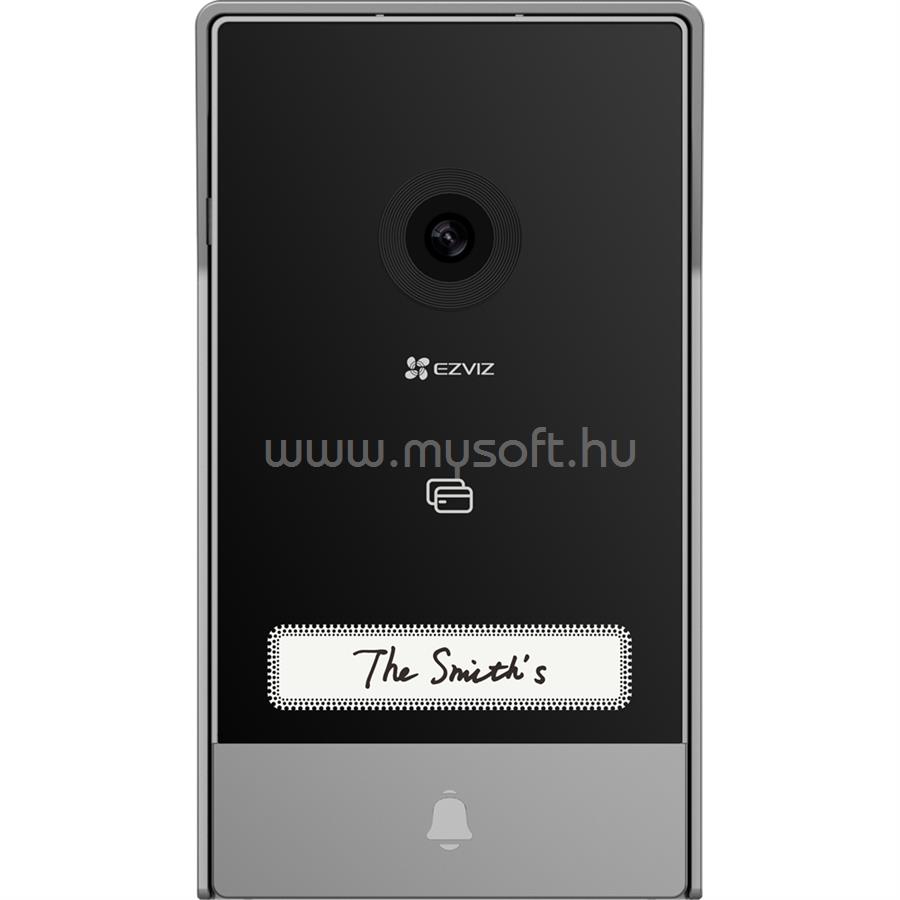

• Outdoor Doorbell Interface

• Audio Input
• Built-in high-sensitivity microphone
• Audio Output
• Built-in high-power speaker
• Doorbell Button
• Yes. The light can be set on or off.
• Name Card
• Three handwritten name cards in total (one already on the intercom panel). The light can be set on or off.

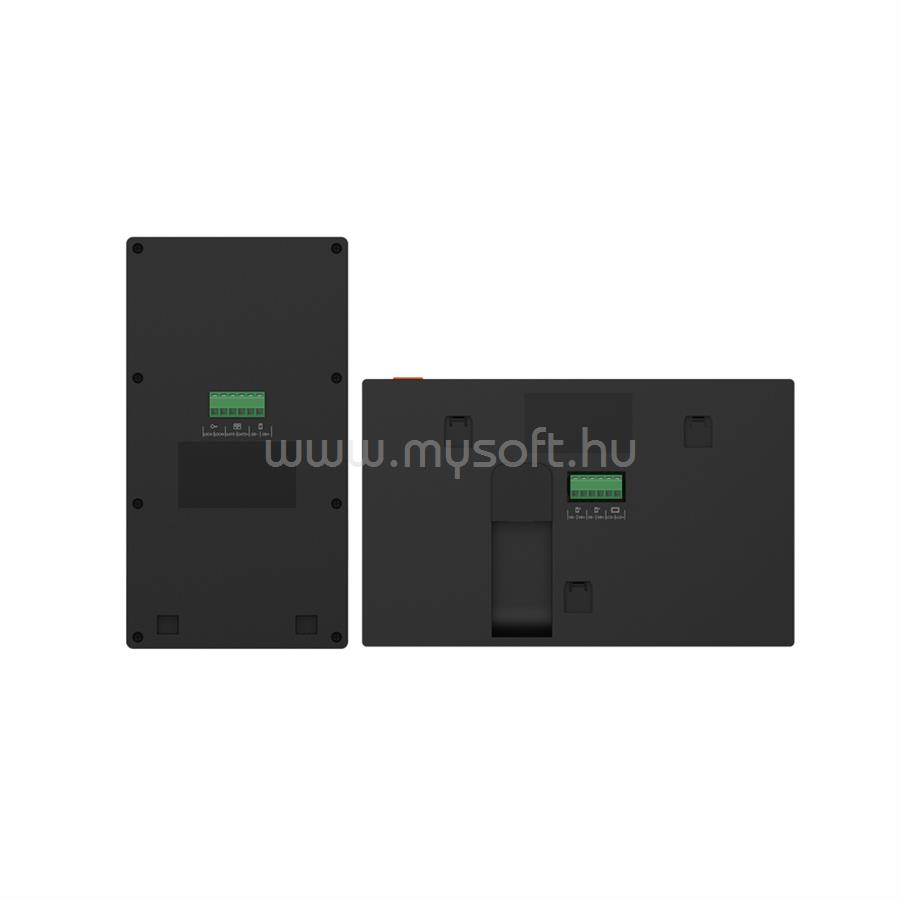

• Terminal

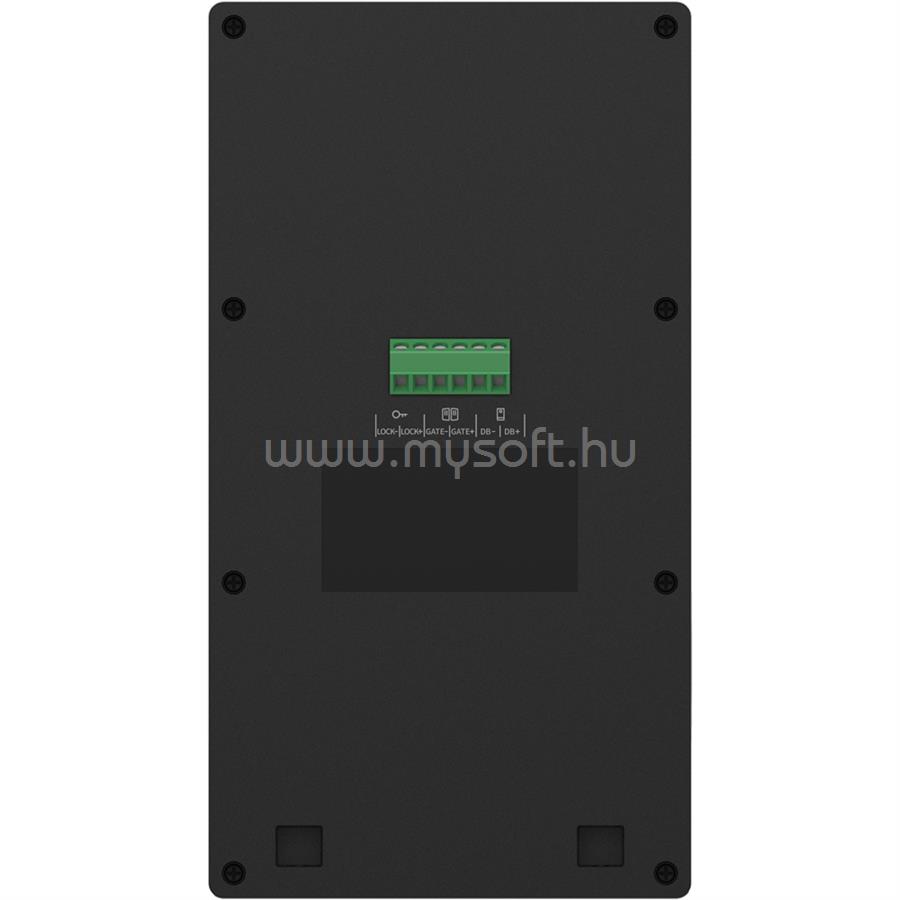

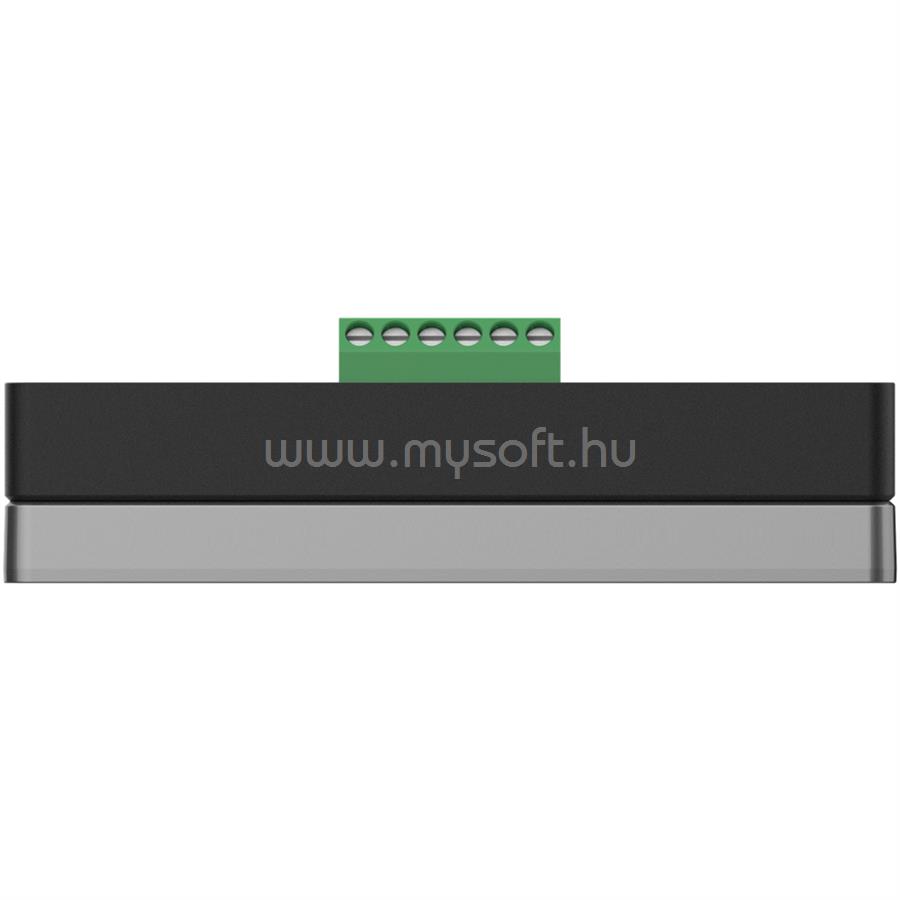

• Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate.

• Functions

• Intelligent Alarm
• Smart human motion detection, Lingering Detection
• Tamper Alarm
• Supports
• Video Intercom
• Long-distance video two-way talk

• General

• Operation Conditions
• -30°C to 60°C , Humidity 95% or less (non-condensing)
• IP Grade
• Waterproof, with shield cover
• Size
• 161 × 87 × 20 mm (6.34 × 3.42 × 0.79 inch)

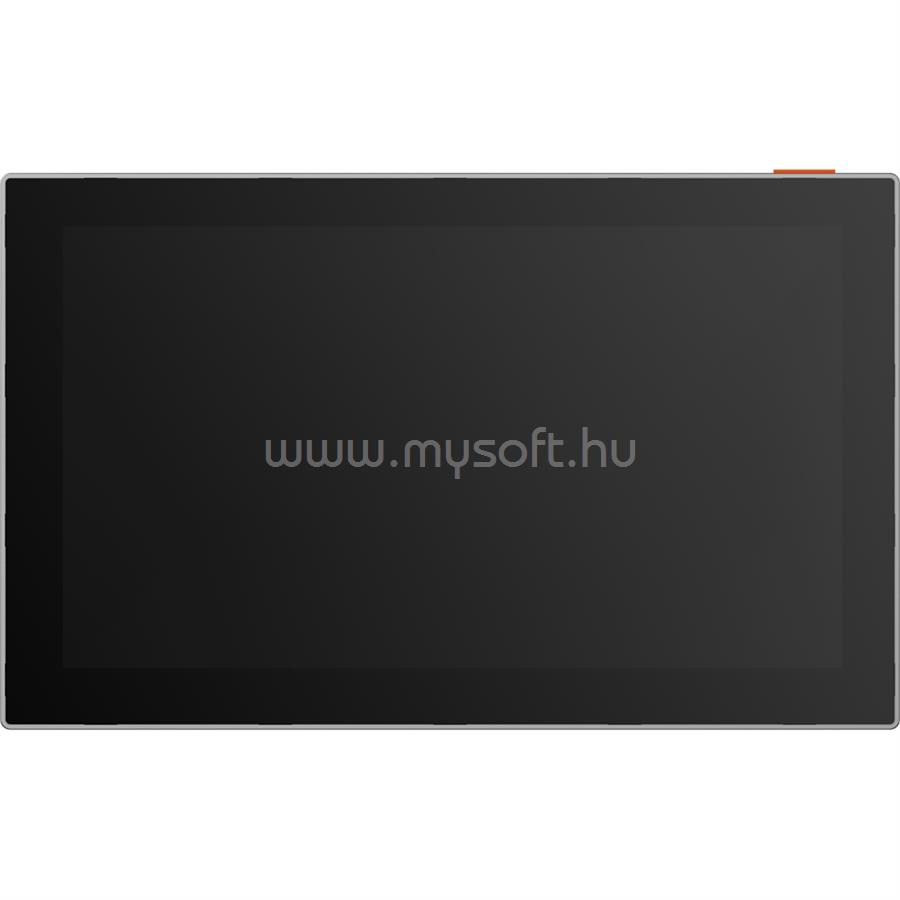

• Interior Display

• Display size
• 7" touch screen
• Resolution
• 1024 × 600

• Interface

• Audio Input
• Built-in high-sensitivity microphone
• Audio Output
• Built-in high-power speaker
• Button
• Screen On / Off Button

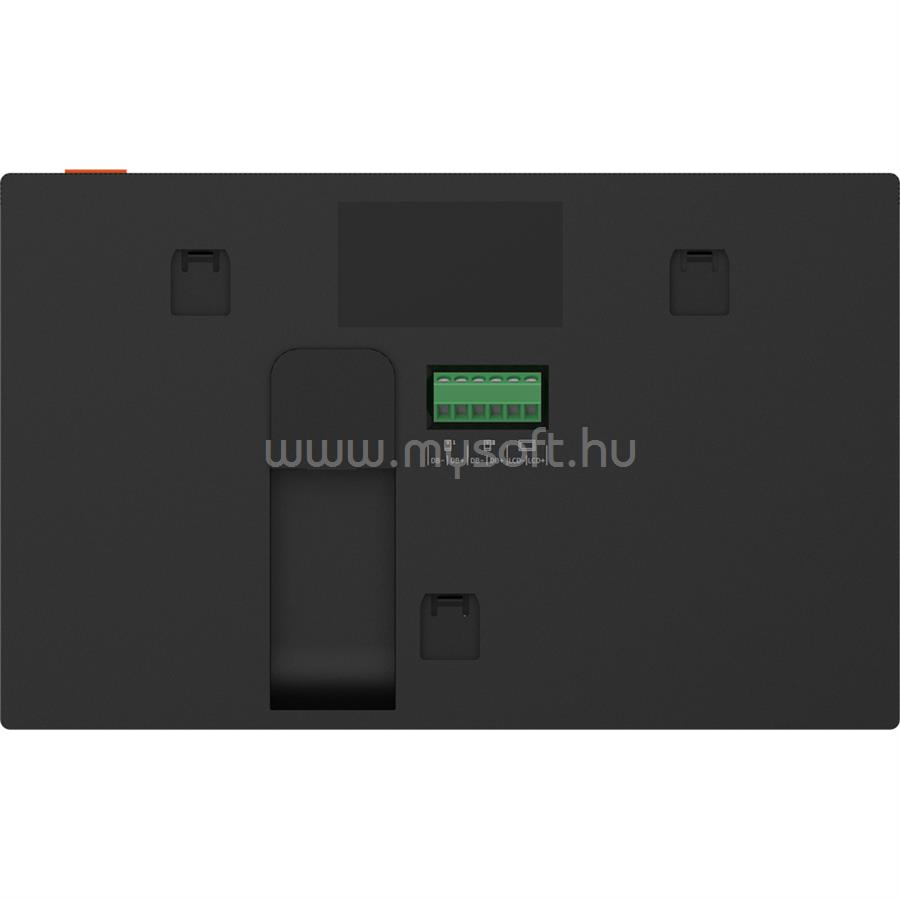

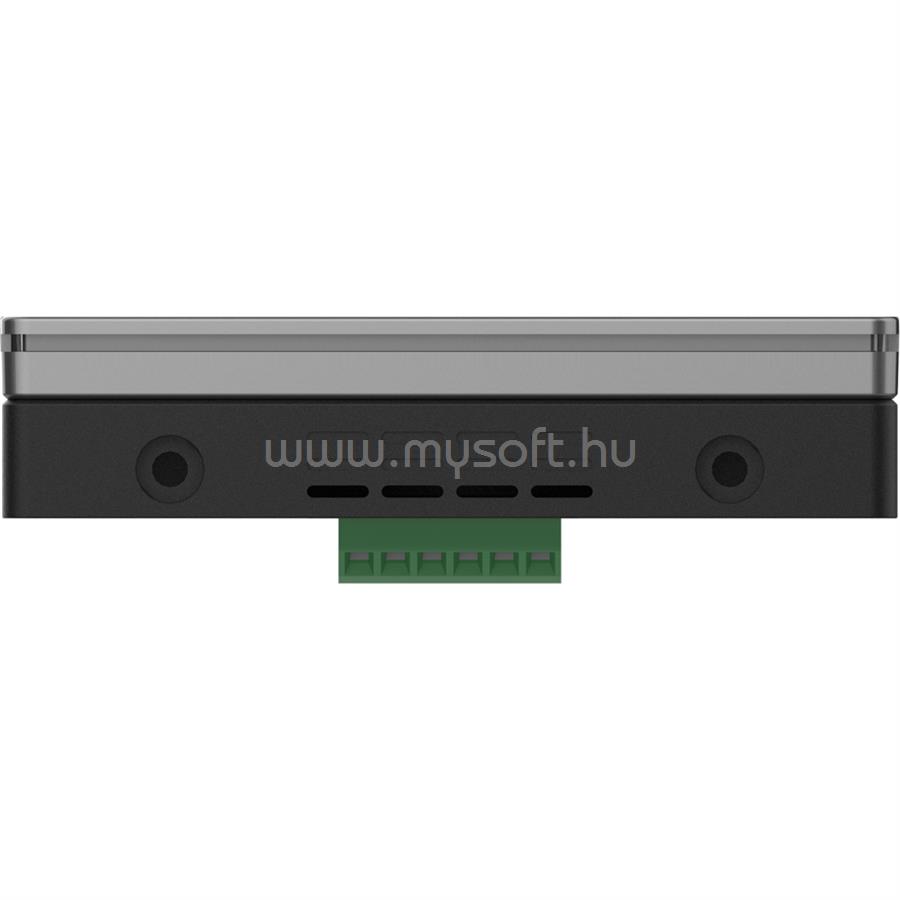

• Terminal

• Two wiring ports to connect 1st outdoor doorbell. Two wiring ports to connect 2nd outdoor doorbell. Two wiring ports to connect extra interior screen (not included in the kit)

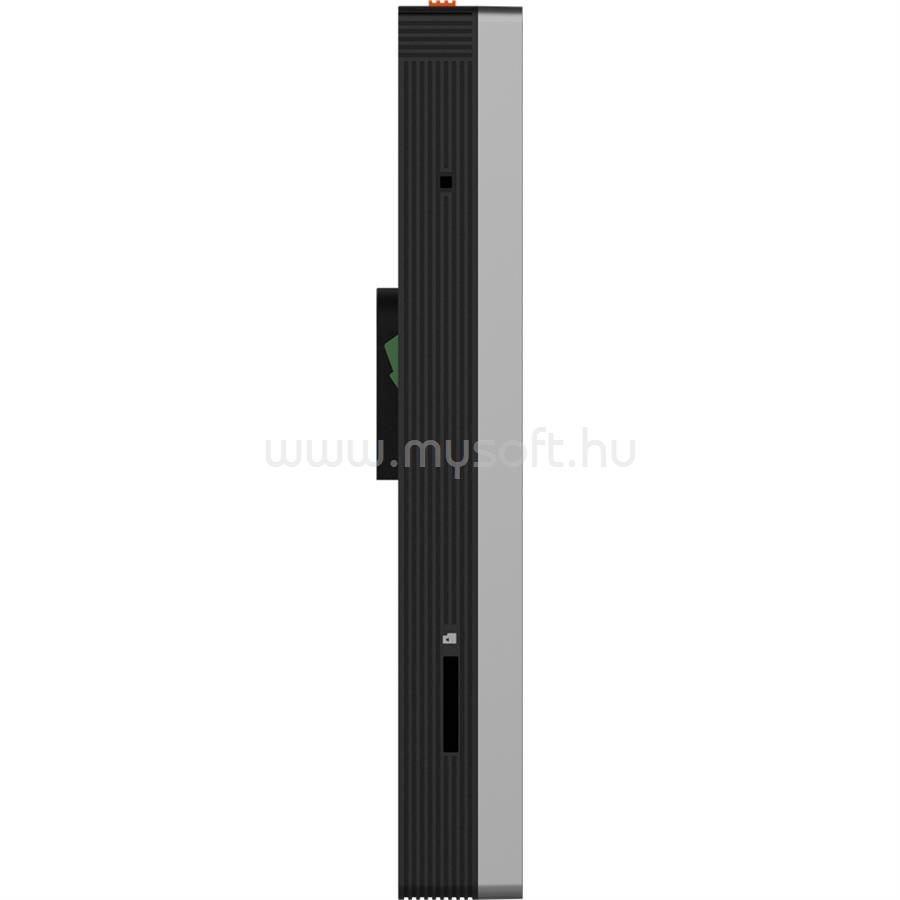

• Storage
• Supports microSD card up to 512 GB Supports EZVIZ Cloud storage

• Network Parameters

• Protocol
• EZVIZ Cloud Proprietary Protocol
• Interface Protocol
• EZVIZ Coud Proprietary Protocol
• Protocol
• EZVIZ Connect Protocol

• Wi-Fi Parameters

• Wi-Fi Standard
• IEEE802.11b, 802.11g, 802.11n, 802.11ac
• Frequency Range
• 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz
• Channel Bandwidth
• Supports 20MHz
• Security
• 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
• Transmission Rate
• 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps

• Function

• Multiple ringtones
• Up to 20 ringtones
• Functions
• Live view, playback, two-way talk, video call

• General

• Operation Conditions
• -10°C to 45°C, humidity 95% or less (non-condensing)
• Weight
• Net weight: 855 g (30.16 oz) With package: 1825 g (64.37 oz)
• Size
• 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch)
• Power Supply
• DC 24V / 1.5A power supply, adaptor (100- 240Vac)
• Power Consumption
• 8W, Max. 24W

• In the box

• - Monitor
• - Wall Bracket for Monitor
• - Power Adapter for Monitor
• - Drill Template for Monitor
• - Intercom Panel
• - Drill Template for Intercom Panel
• - Screwdriver
• - Badges (×3)
• - Screw Kit (×2)
• - Name Card (×2)
• - Wires and Wire Connectors
• - Regulatory Information (×2)
• - Quick Start Guide

• Certifications

• Certifications
• CE / REACH / WEEE / RoHS
