BE QUIET! TÁPEGYSÉG DARK POWER PRO 13 1300W MODULÁRIS 80+ TITANIUM

• General data

• Continuous power (W)
• 1300
• Peak power (W)
• 1400
• Form factor
• Version 3.0
• Form factor EPS 12V
• Version 2.92
• Topology
• Full bridge + LLC + SR + DC/DC
• Digitally controlled
• Yes
• Voltage (Vac)
• 115 - 240
• Frequency (Hz)
• 50 - 60
• Input current (A)
• 15 / 9
• Power factor at 100% load
• >0.99
• Modern standby
• Yes
• Power consumption in standby (W)
• <0.06
• Average life time (h / 25°C)
• >100,000
• Operating temperature up to (°C)
• 50

• Efficiency

• 80 PLUS certification
• Titanium
• Efficiency (%) at 230V, 2% load
• 73.1
• Efficiency (%) at 230V, 10% load
• 91.6
• Efficiency (%) at 230V, 20% load
• 93.6
• Efficiency (%) at 230V, 50% load
• 94.4
• Efficiency (%) at 230V, 100% load
• 92.8

• Fan and cooling technology

• Cybenetics Noise Rating
• -
• Fan
• Silent Wings
• Fan size (mm)
• 135
• Bearing technology
• FDB
• Motor technology
• 6-pole fan motor
• Max. fan speed (rpm)
• 2400
• dB(A) at 10% load
• 10.2
• dB(A) at 20% load
• 10.2
• dB(A) at 50% load
• 10.2
• dB(A) at 100% load
• 23.2

• Output

• Multi-rail operation (12V rails)
• 6
• 12V single rail operation
• Yes
• Overclocking key
• Yes
• +3.3V (A)
• 25
• +5V (A)
• 25
• +12V1 (A)
• 35
• +12V2 (A)
• 35
• +12V3 (A)
• 40
• +12V4 (A)
• 40
• +12V5 (A)
• 55
• +12V6 (A)
• 55
• -12V (A)
• 0.5
• +5Vsb (A)
• 3.5
• Max. combined power 12V (W)
• 1300
• Max. combined power 12VHPWR (W)
• 800
• Max. combined power 3.3V + 5V (W)
• 150
• Hold-up time at 100% load (ms)
• 18
• Hold-up time at 80% load (ms)
• 21.2
• Power good signal (ms)
• 100-150

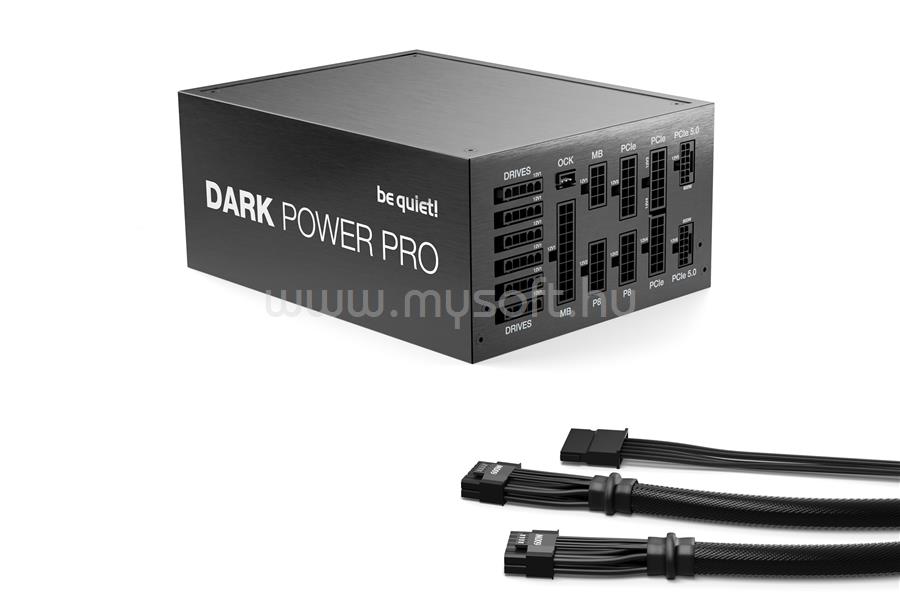

• Cables and connectors

• Modular cables
• Yes
• Sleeved cables
• Yes
• Flat cables
• -
• Maximum cable length (cm)
• 105
• Cable length to motherboard (cm)
• 60
• No. of cables
• 16
• ATX-Motherboard (20+4-pin)
• 1
• P4+4 (CPU)
• 1
• P8 (CPU)
• 1
• P4 (CPU)
• -
• 12VHPWR cables
• 2
• PCI-e 6+2-pin (GPU)
• 6
• PCI-e 6-pin (GPU)
• -
• SATA
• 16
• PATA
• 5
• FDD (Floppy)
• -

• Protection

• OTP (over temperature protection)
• OCP (over current protection)
• OPP (over power protection)
• SCP (short circuit protection)
• OVP (over Voltage protection)
• UVP (under Voltage protection)
• SIP (Surge & Inrush protection)

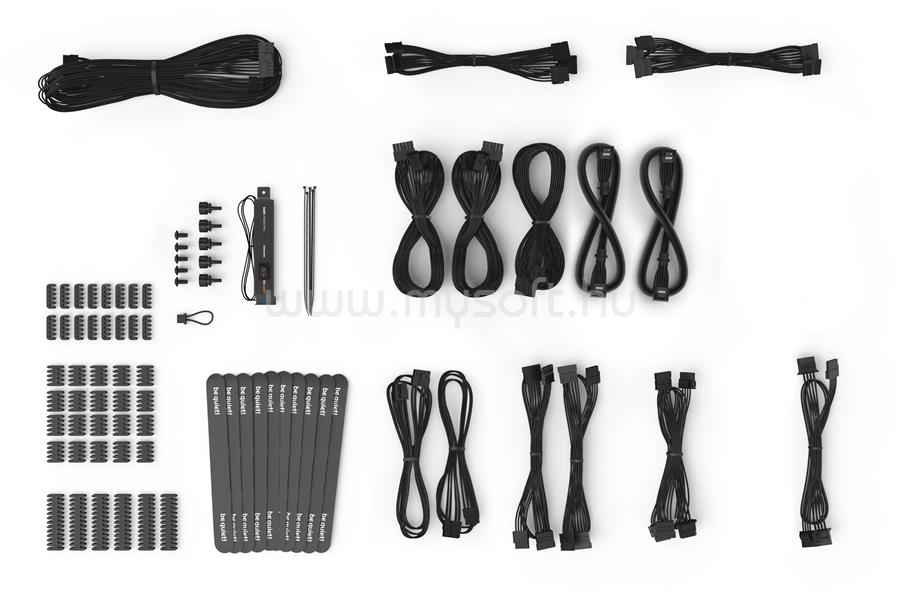

• Scope of delivery

• Thumb screws
• Yes
• Screws
• Yes
• Cable ties
• Yes
• Velcro cable ties
• Yes
• User manual languages
• CN, DE, EN, ES, FR, JP, PL, RU, TW, KR
• OCK slot bracket with switch / OCK jumper
• Yes
• SFX-to-ATX adapter bracket
• -

• Casing

• Dimensions without cable (L x W x H), (mm)
• 200 x 150 x 86
• Weight (kg)
• 2.41
• Color
• Black

• Logistics data

• Dimensions, package (L x W x H), (mm)
• 417 x 253 x 152
• Gross weight, package (kg)
• 6.8
