BE QUIET! PURE BASE 501 DX BLACK FEKETE (TÁP NÉLKÜLI) ABLAKOS ATX HÁZ

• General data

• Motherboard compatibility
• ATX / M-ATX / Mini-ITX

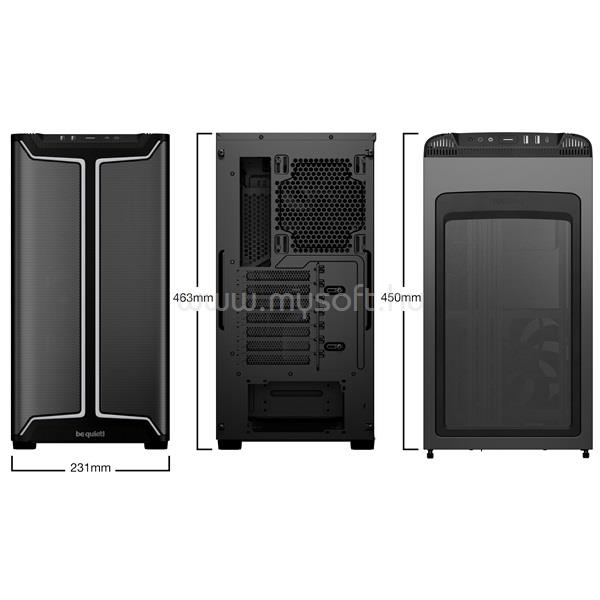

• Case size excl. stands (L x W x H), (mm)
• 450 x 231 x 449
• Case size incl. stands (L x W x H), (mm)
• 450 x 231 x 463
• Volume (l)
• 39.2
• PSU form factor
• ATX PS/2
• Net weight (kg)
• 7.8
• Expansion slots
• 7

• Pre-installed fans

• Fan at top
• 1x Pure Wings 3 140mm PWM
• Fan at front
• 1x Pure Wings 3 140mm PWM
• Fan at side
• -
• Fan at rear
• 1x Pure Wings 3 140mm PWM
• Fan at bottom
• -
• Dimensions (L x W x H), (mm)
• 140 x 25 x 140
• Fan speed at 100% PWM / 12V (rpm)
• 1200
• Airflow at 100% PWM / 12V (CFM / m3/h)
• 57.4 / 97.5
• Air Pressure at 100% PWM / 12V (mm H2O)
• 0.96
• Noise level at 100% PWM / 12V (dB(A))
• 21.9
• Voltage range (V DC)
• 5 - 13.2
• Input power (W)
• 3.6
• Input current (A)
• 0.06
• Connector
• 4-pin PWM
• Lifespan (h / 25°C)
• 80,000
• Fan controller
• -

• Maximum fan installation

• Maximum fans
• 6
• Top (mm)
• 2x 140 / 2x 120
• Front (mm)
• 2x 140 / 3x 120
• Side (mm)
• -
• Rear (mm)
• 1x 140 / 1x 120
• Bottom (mm)
• -
• PSU shroud
• -

• Optional radiator installation

• Top (mm)
• 120 / 240
• Front (mm)
• 120 / 140 / 240 / 280 / 360
• Side (mm)
• -
• Rear (mm)
• 120 / 140
• Bottom (mm)
• -

• PSU compatibility

• Maximum dimensions excl. bottom fan (mm)
• 200
• Maximum dimensions incl. bottom fan (mm)
• 180

• Graphics card

• HDD cage (in height of graphics card) installed (mm)
• 368
• HDD cage (in height of graphics card) removed (mm)
• 368
• Maximum PCIe slots with vertical graphics card (pcs.)
• 5

• Drive bay capacity

• 5.25 bays (pcs.)
• -
• 3.5 slots (scope of delivery)
• 2
• 3.5 slots (max.)
• 2
• 2.5 slots (scope of delivery)
• 5
• 2.5 slots (max.)
• 5

• Cooling

• Max.construction height of CPU cooler unit (mm)
• -
• Airflow channel
• -

• Lighting

• LED illumination
• -
• LEDs (pcs.)
• -
• LED type
• -
• LEDs synchronizable with controller/motherboard
• -

• I/O Panel

• USB 3.2 Gen. 2 Type C
• 1
• USB 3.2 Type A
• 2
• USB 2.0
• -
• HD Audio I/O
• Mic + Audio
• Qi charger / Quick Charging Option (W)
• -

• Insulation and damping

• Top panel insulation mats
• -
• Front panel insulation mats
• -
• Side panel insulation mats
• Yes
• Anti-vibration decoupled HDD
• Yes
• Anti-vibration decoupled fan
• -
• Anti-vibration decoupled PSU
• Yes
• Anti-vibration decoupled motherboard-tray
• -

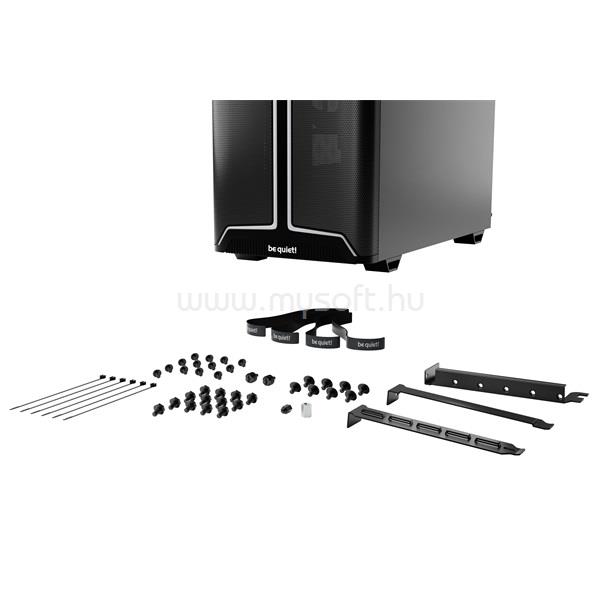

• Scope of delivery

• Screw set (Drives/Motherboard)
• Yes
• Additional standoffs (pcs.)
• 1
• SSD bracket for PSU shroud
• -
• LED strips (pcs.)
• 2
• Cable ties (pcs.)
• 12
• Screw box
• -
• VGA holder
• -
• VGA holder for inverted layout
• -
• Mesh Front Panel
• -
• ODD Bracket
• -
• Fan / Radiator bracket for multi mounting panel
• -

• Removeable dust filters

• Top
• 1
• Front
• 1
• Side
• -
• Bottom
• 1

• Material

• Top cover
• Steel
• Front panel
• ABS
• Side panel
• Steel
• Side panel window
• Glass
• Stands
• ABS

• Logistics data and RRP

• Dimensions, package (L x W x H), (mm)
• 518 x 292 x 503
• Gross weight, package (kg)
• 9.2

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
