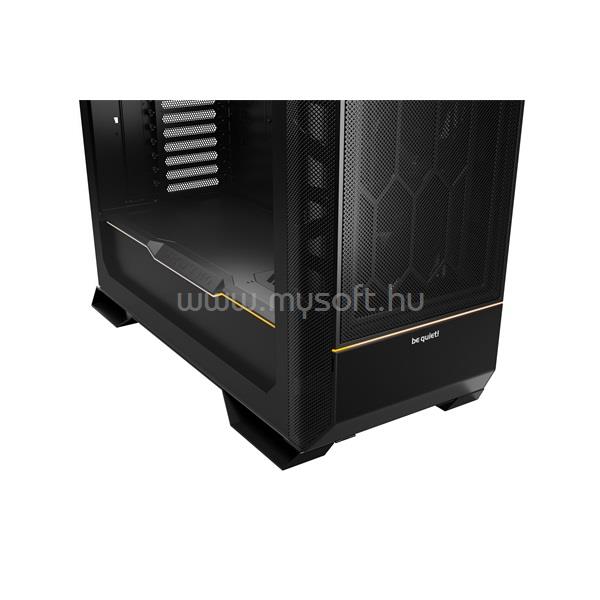

BE QUIET! DARK BASE PRO 901 FEKETE (TÁP NÉLKÜLI) E-ATX HÁZ

• General data

• Motherboard compatibility
• E-ATX / XL-ATX / ATX / M-ATX / Mini-ATX

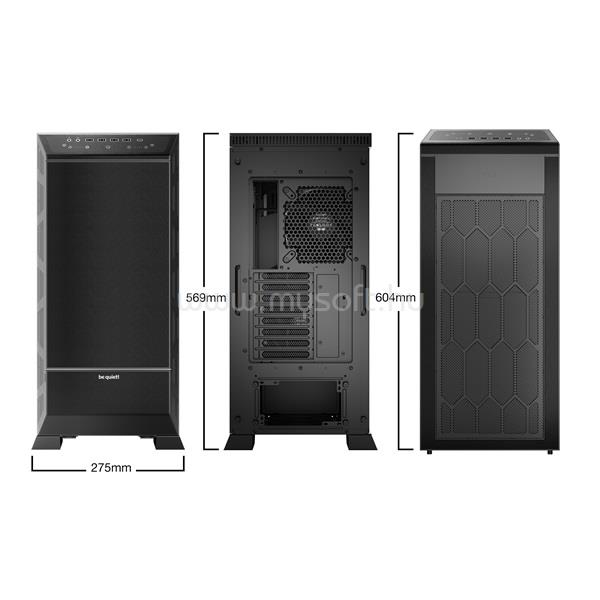

• Case size excl. stands (L x W x H), (mm)
• 604 x 254 x 539
• Case size incl. stands (L x W x H), (mm)
• 604 x 275 x 569
• Volume (l)
• 82.69
• PSU form factor
• ATX PS/2
• Net weight (kg)
• 17.8
• Expansion slots
• 8

• Pre-installed fans

• Fan at top
• -

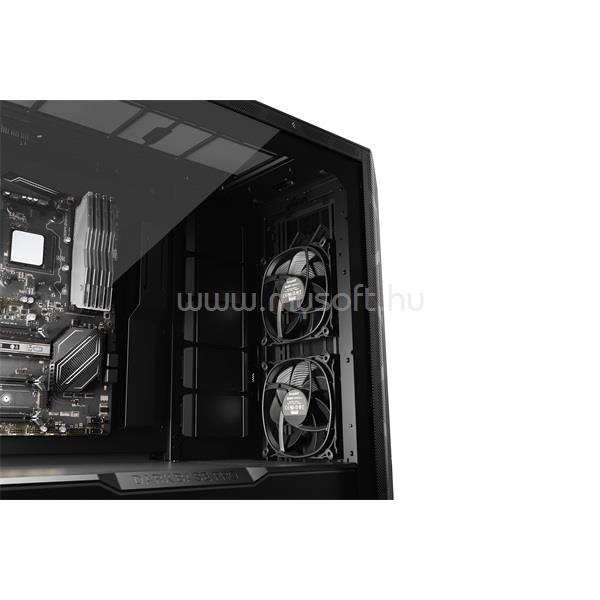

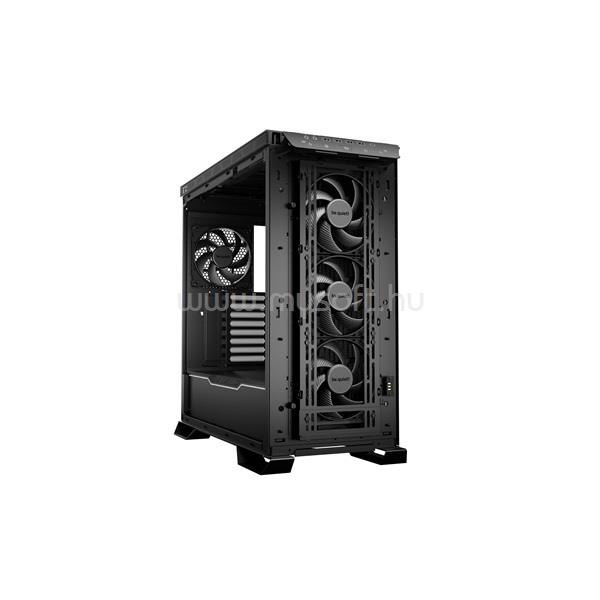

• Fan at front
• 2x Silent Wings 4 140mm PWM
• Fan at side
• -
• Fan at rear
• 1x Silent Wings 4 140mm PWM
• Fan at bottom
• -
• Dimensions (L x W x H), (mm)
• Front: 140 x 25 x 140 / Rear: 140 x 25 x 140
• Fan speed at 100% PWM / 12V (rpm)
• 1900
• Airflow at 100% PWM / 12V (CFM / m3/h)
• 78.4 / 133.2
• Air Pressure at 100% PWM / 12V (mm H2O)
• 2.36
• Noise level at 100% PWM / 12V (dB(A))
• 29.3
• Voltage range (V DC)
• 12
• Input power (W)
• 4.8
• Input current (A)
• 0.4
• Connector
• 4-pin PWM
• Lifespan (h / 25°C)
• 300,000
• Fan controller
• 5-step fan controller with 2x PWM Hubs

• Maximum fan installation

• Maximum fans
• 11
• Top (mm)
• 3x 140 / 3x 120
• Front (mm)
• 3x 140 / 3x 120
• Side (mm)
• 3x 120
• Rear (mm)
• 1x 140 / 1x 120
• Bottom (mm)
• 1x 140 / 1x 120
• PSU shroud
• -

• Optional radiator installation

• Top (mm)
• 120 / 240 / 360
• Front (mm)
• 120 / 140 / 240 / 280 / 360 / 420
• Side (mm)
• 120 / 240 / 360
• Rear (mm)
• 120 / 140
• Bottom (mm)
• -

• PSU compatibility

• Maximum dimensions excl. bottom fan (mm)
• 325
• Maximum dimensions incl. bottom fan (mm)
• 325

• Graphics card

• HDD cage (in height of graphics card) installed (mm)
• 350
• HDD cage (in height of graphics card) removed (mm)
• 495
• Maximum PCIe slots with vertical graphics card (pcs.)
• 8

• Drive bay capacity

• 5.25 bays (pcs.)
• 1
• 3.5 slots (scope of delivery)
• 2
• 3.5 slots (max.)
• 7
• 2.5 slots (scope of delivery)
• 6
• 2.5 slots (max.)
• 16

• Cooling

• Max.construction height of CPU cooler unit (mm)
• 190
• Airflow channel
• -

• Lighting

• LED illumination
• Yes
• LEDs (pcs.)
• 24
• LED type
• ARGB - 5V
• LEDs synchronizable with controller/motherboard
• Yes

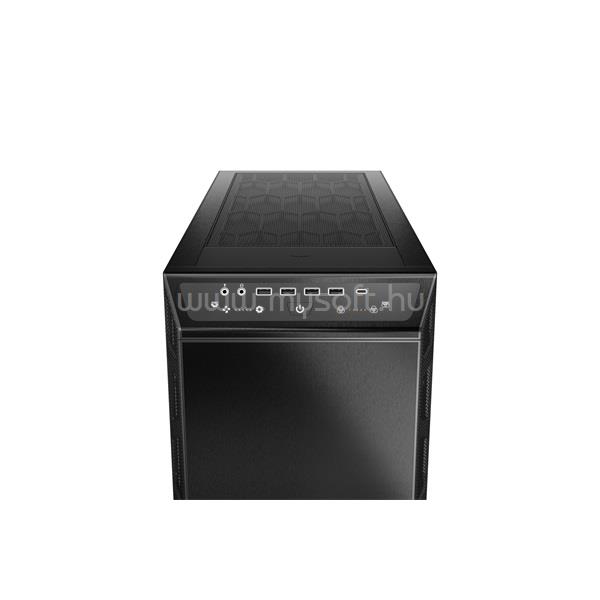

• I/O Panel

• USB 3.2 Gen. 2 Type C
• 1
• USB 3.2 Type A
• 4
• USB 2.0
• -
• HD Audio I/O
• Mic + Audio
• Qi charger / Quick Charging Option (W)
• 15

• Insulation and damping

• Top panel insulation mats
• Front panel insulation mats
• Side panel insulation mats
• Anti-vibration decoupled HDD
• Anti-vibration decoupled fan
• Anti-vibration decoupled PSU
• Anti-vibration decoupled motherboard-tray

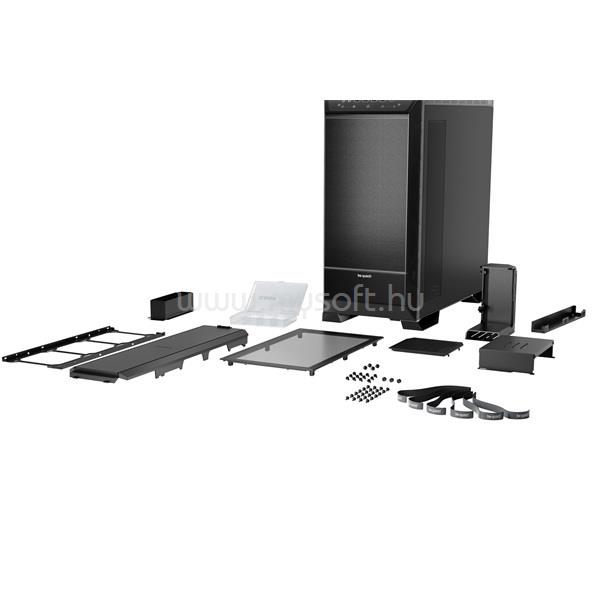

• Scope of delivery

• Screw set (Drives/Motherboard)
• Yes
• Additional standoffs (pcs.)
• 3 (for E-ATX)
• SSD bracket for PSU shroud
• -
• LED strips (pcs.)
• 0
• Cable ties (pcs.)
• 12
• Screw box
• Yes
• VGA holder
• Yes
• VGA holder for inverted layout
• Yes
• Mesh Front Panel
• Yes
• ODD Bracket
• Yes
• Fan / Radiator bracket for multi mounting panel
• Yes

• Removeable dust filters

• Top
• -
• Front
• 1
• Side
• -
• Bottom
• 1

• Material

• Top cover
• Aluminum
• Front panel
• Aluminum
• Side panel
• Steel
• Side panel window
• Tempered glass
• Stands
• Steel

• Safety certification

• Approvals
• CE, UKCA

• Environmental directives

• RoHS
• Reach
• WEEE
• Triman
