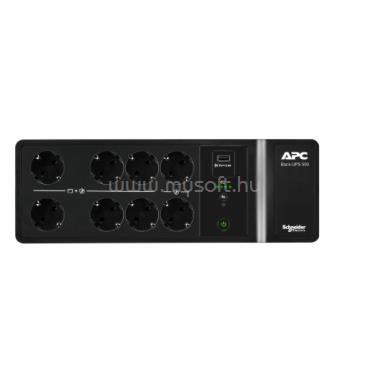

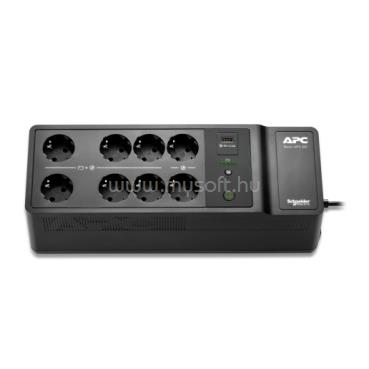

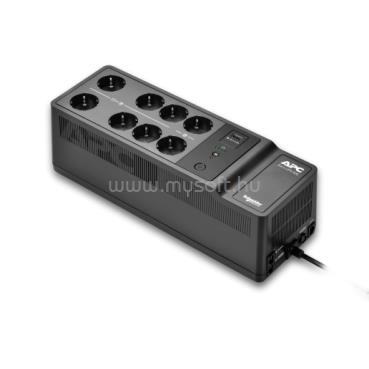

APC BACK-UPS 500VA 8 SCHUKO OUTLETS 230V 1 USB CHARGING PORT SZÜNETMENTES TÁPEGYSÉG

• Main

• Run time for load 300 W
• 2min 39s
• Min-max: 40-300 W
• Max. Capacity Used
• 100 %
• Main Input Voltage
• 230 V
• Other Input Voltage
• 220 V
• Main Output Voltage
• 230 V
• Other Output Voltage
• 220 V
• Rated power in W
• 300 W
• Rated power in VA
• 500 VA
• Product or component type
• Uninterruptible power supply (UPS)
• Input Connection Type
• Schuko CEE 7/7P
• output connection type
• 6 Schuko CEE 7
• 2 Schuko CEE 7 surge
• Battery type
• Lead-acid battery
• Provided equipment
• User manual

• Batteries & Runtime

• Battery charger power
• 7 W
• Battery power in VAH
• 46 VAh runtime

• General

• Number of power module free slots
• 0
• Number of power module filled slots
• 0
• Redundant
• No

• Physical

• Height
• 12 cm
• Width
• 13 cm
• Depth
• 36.5 cm
• Mounting preference
• No preference
• mounting mode
• Not rack-mountable
• Two post mountable
• 0
• USB compatible
• Yes

• Input

• Network frequency
• 47...63 Hz
• Input voltage limits
• 180...266 V
• Maximum input current
• 6 A
• Switching current capacity
• 10 A

• Output

• Maximum configurable power in W
• 300 W
• Output frequency
• 47...63 Hz sync to mains
• 50/60 Hz +/- 1 Hz unsynchronised
• UPS type
• Standby
• Wave type
• Stepped approximation to a sinewave
• Efficiency
• 80 % (full load)
• Graph start point
• 40
• Maximum configurable power in VA
• 500 VA
• Transfer time
• 6 ms typical : 10 ms maximum

• Conformance

• product certifications
• CE
• EAC
• Standards
• EN/IEC 62040-1:2019/A11:2021
• EN/IEC 62040-2:2006/AC:2006
• EN/IEC 62040-2:2018
• Equipment protection policy
• Lifetime : 100000 euros

• Environmental

• Ambient air temperature for operation
• 0.40 °C
• Relative humidity
• 0.90 %
• Operating altitude
• 0...3000 ft
• Ambient air temperature for storage
• -15.45 °C
• Storage Relative Humidity
• 0.95 %
• Storage altitude
• 0.0000000000.4572.0000000000 m
• acoustic level
• 45 dBA

• Communications & Management

• Control panel
• LED status display with on line : on battery : replace battery and overload indicators
• Alarm
• Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Control panel
• LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators
