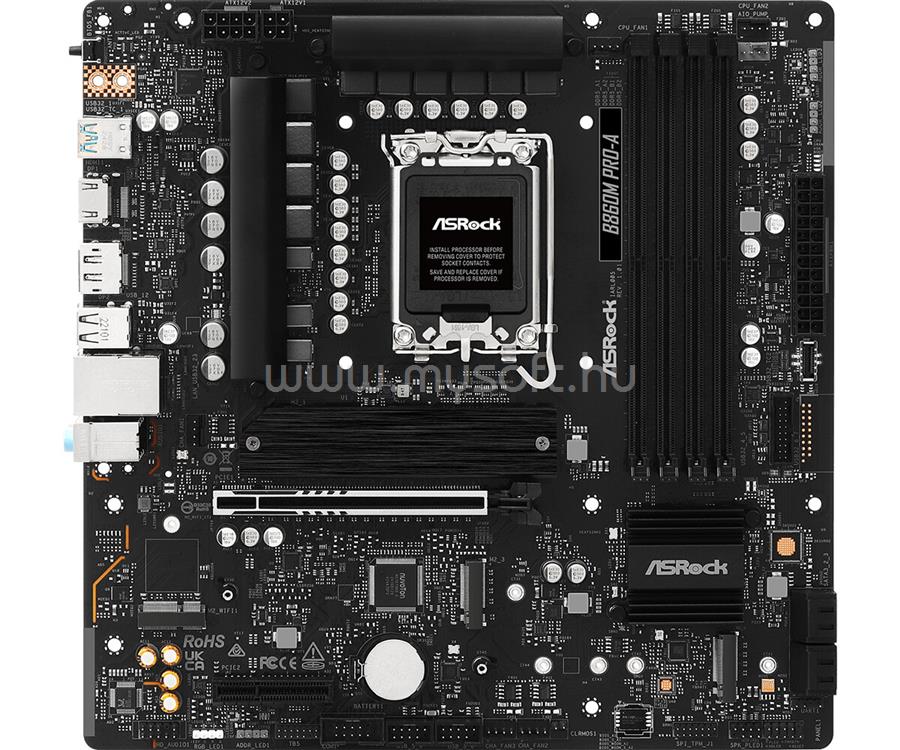

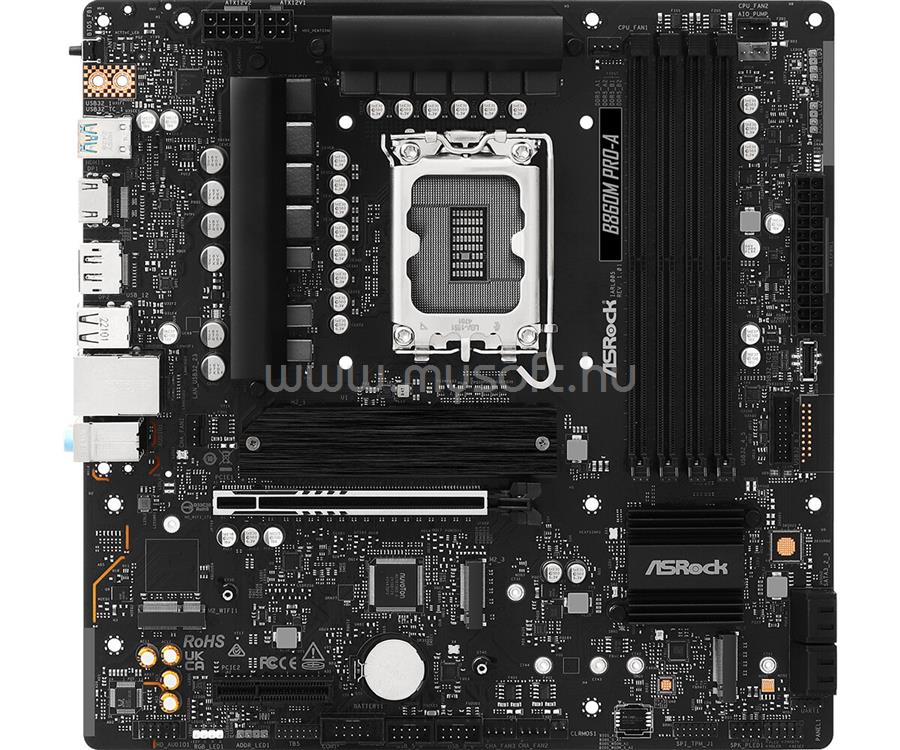

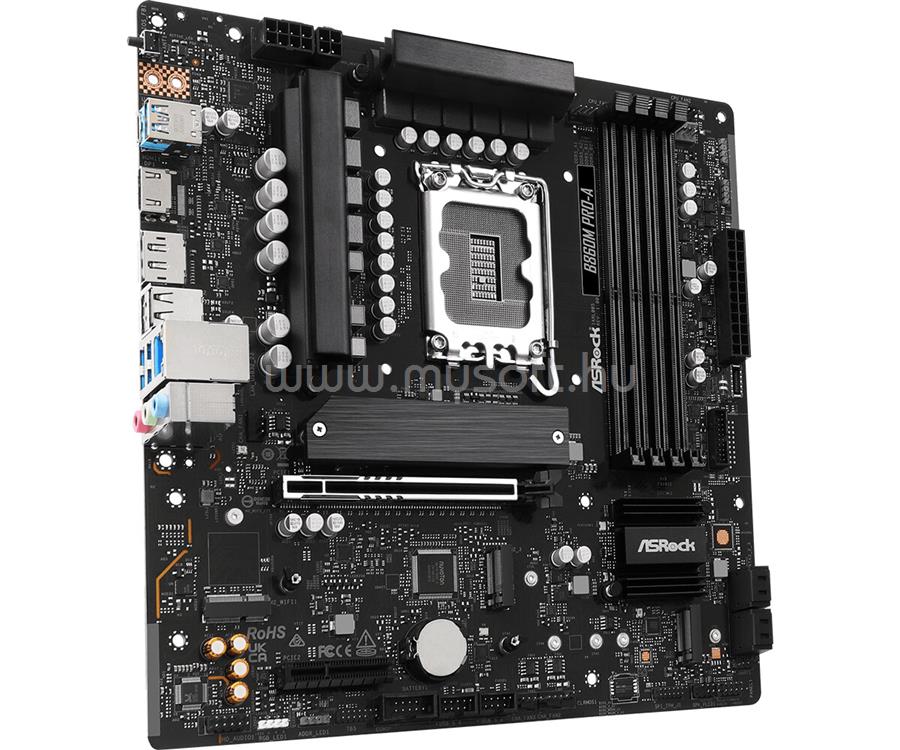

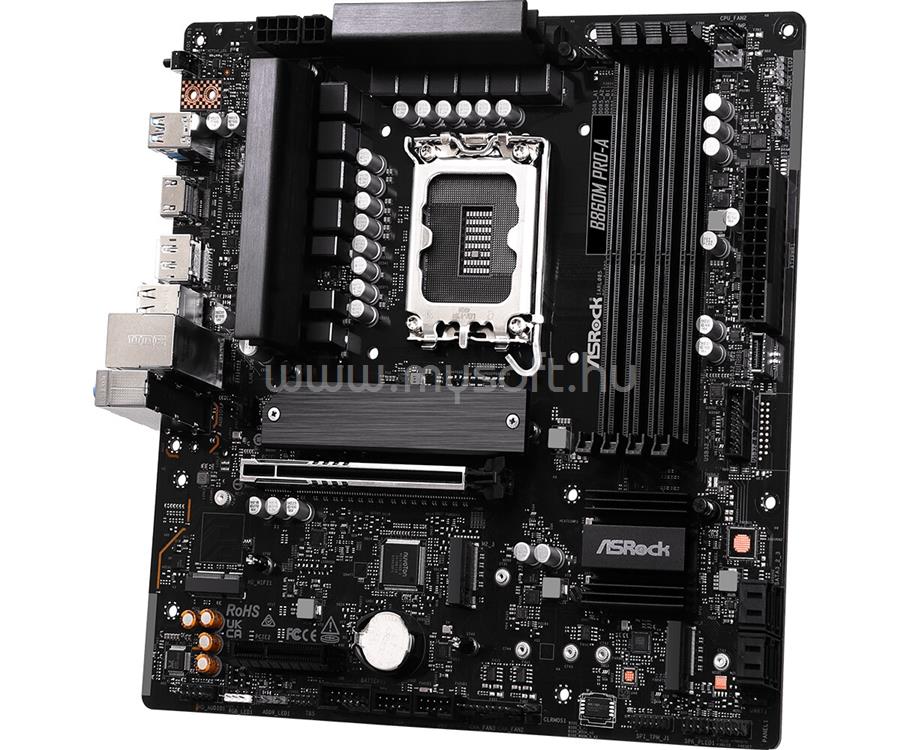

ASROCK ALAPLAP B860M PRO-A (LGA1851, MATX)

• Unique Feature

• Superb Productivity
• - PCIe Gen5 (Graphics, M.2)
• - Dual Channel DDR5
• Rock-Solid Durability
• - 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA
• Ultrafast Connectivity
• - 2.5G LAN
• EZ Update
• - BIOS Flashback Button
• - ASRock Auto Driver Installer

• CPU

• - Supports Intel© Core™ Ultra Processors (Series 2) (LGA1851)
• - Supports Intel© Hybrid Technology
• - Supports Intel© Turbo Boost Max 3.0 Technology
• - Supports Intel© Thermal Velocity Boost (TVB)
• - Supports Intel© Adaptive Boost Technology (ABT)
• - Integrated NPU for dedicated AI acceleration

• Chipset

• - Intel© B860

• Memory

• - Dual Channel DDR5 Memory Technology
• - 4 x DDR5 DIMM Slots
• - Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)*
• - Supports Clocked Unbuffered DIMM (CUDIMM)
• - Max. capacity of system memory: 256GB
• - Supports Intel© Extreme Memory Profile (XMP) 3.0x
• * 1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.

• BIOS

• - 256Mb AMI UEFI Legal BIOS with GUI support

• Graphics

• - Intel© Xe LPG Graphics Architecture
• - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• * Intel© UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

• Audio

• - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

• LAN

• - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• - Dragon RTL8125BG
• - Supports Dragon 2.5G LAN Software
• - Smart Auto Adjust Bandwidth Control
• - Visual User Friendly UI
• - Visual Network Usage Statistics
• - Optimized Default Setting for Game, Browser, and Streaming Modes
• - User Customized Priority Control

• Slots

• CPU:
• - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
• Chipset:
• - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*
• - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel© CNVio/CNVio2 (Integrated WiFi/BT)
• * Supports NVMe SSD as boot disks

• Storage

• CPU:
• - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
• Chipset:
• - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• - 4 x SATA3 6.0 Gb/s Connectors
• * Supports Intel© Volume Management Device (VMD)
• Supports NVMe SSD as boot disks

• RAID

• - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• USB

• CPU:
• - 1 x USB 3.2 Gen2x2 Type-C (Rear)
• Chipset:
• - 1 x USB 3.2 Gen1 Type-C (Front)
• - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
• - 6 x USB 2.0 (2 Rear, 4 Front)
• * All USB ports support ESD Protection

• Connector

• - 1 x COM Port Header
• - 1 x SPI TPM Header
• - 1 x Power LED and Speaker Header
• - 1 x RGB LED Header*
• - 3 x Addressable LED Headers**
• - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
• - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
• - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
• - 1 x 24 pin ATX Power Connector
• - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
• - 1 x Front Panel Audio Connector
• - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 port)
• - 1 x Front Panel Type C USB 3.2 Gen1 Header
• * Supports in total up to 12V/3A, 36W LED Strip
• ** Support in total up to 5V/3A, 15W LED Strip
• *** CPU_FAN1 supports the fan power up to 1A (12W).
• CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W).
• CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

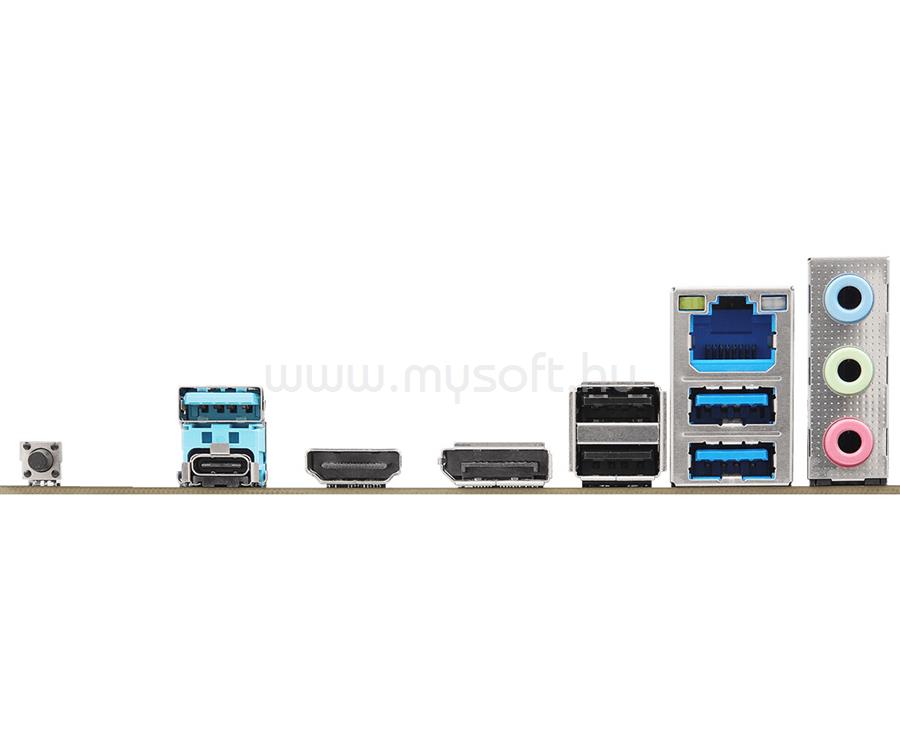

• Rear Panel I/O

• - 2 x Antenna Mounting Points
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
• - 3 x USB 3.2 Gen1 Ports
• - 2 x USB 2.0 Ports
• - 1 x RJ-45 LAN Port
• - 1 x BIOS Flashback Button
• - HD Audio Jacks: Line in / Front Speaker / Microphone

• Software and UEFI

• Software
• - ASRock Motherboard Utility (A-Tuning)
• - ASRock Dragon 2.5G LAN Software
• - ASRock Polychrome SYNC*
• UEFI
• - ASRock EZ Mode
• - ASRock Full HD UEFI
• - ASRock My Favorites in UEFI
• - ASRock Auto Driver Installer
• - ASRock Instant Flash
• *These utilities can be downloaded from ASRock Live Update & APP Shop.

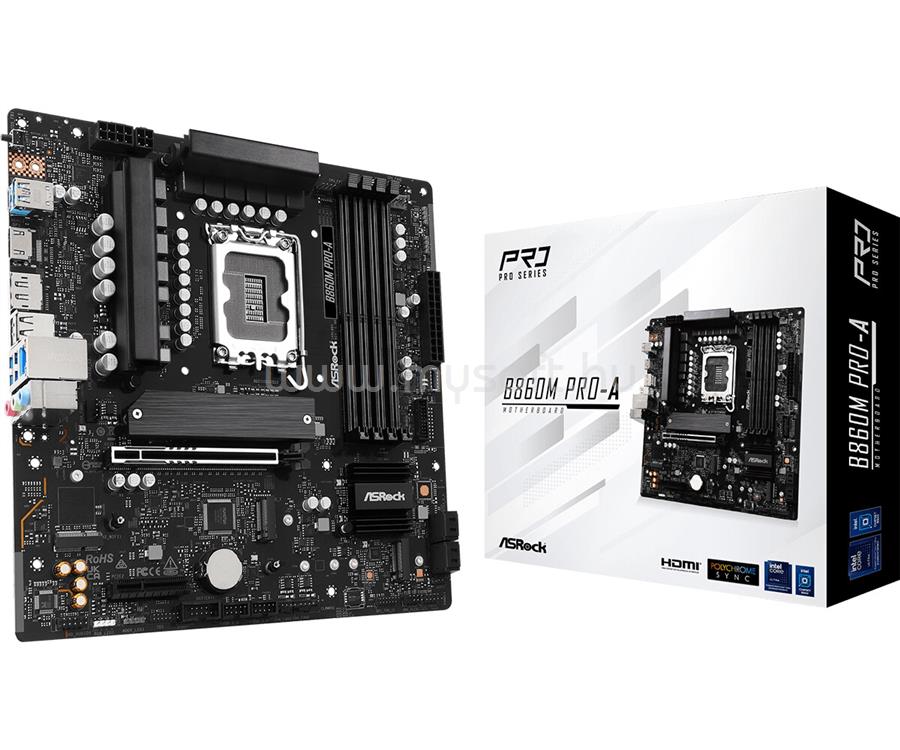

• Accessories

• - 1 x I/O Shield
• - 2 x SATA Data Cables
• - 1 x Screw for M.2 Socket

• Form Factor

• - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

• OS

• - Microsoft Windows© 11 64-bit

• Certifications

• - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
