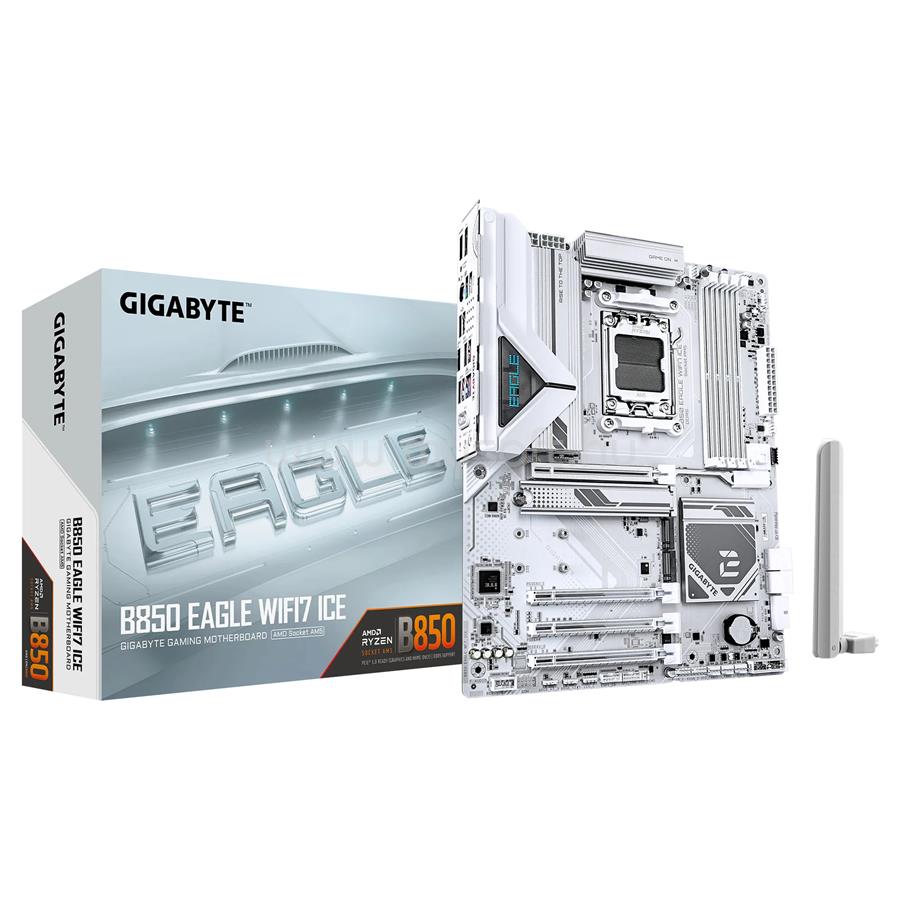

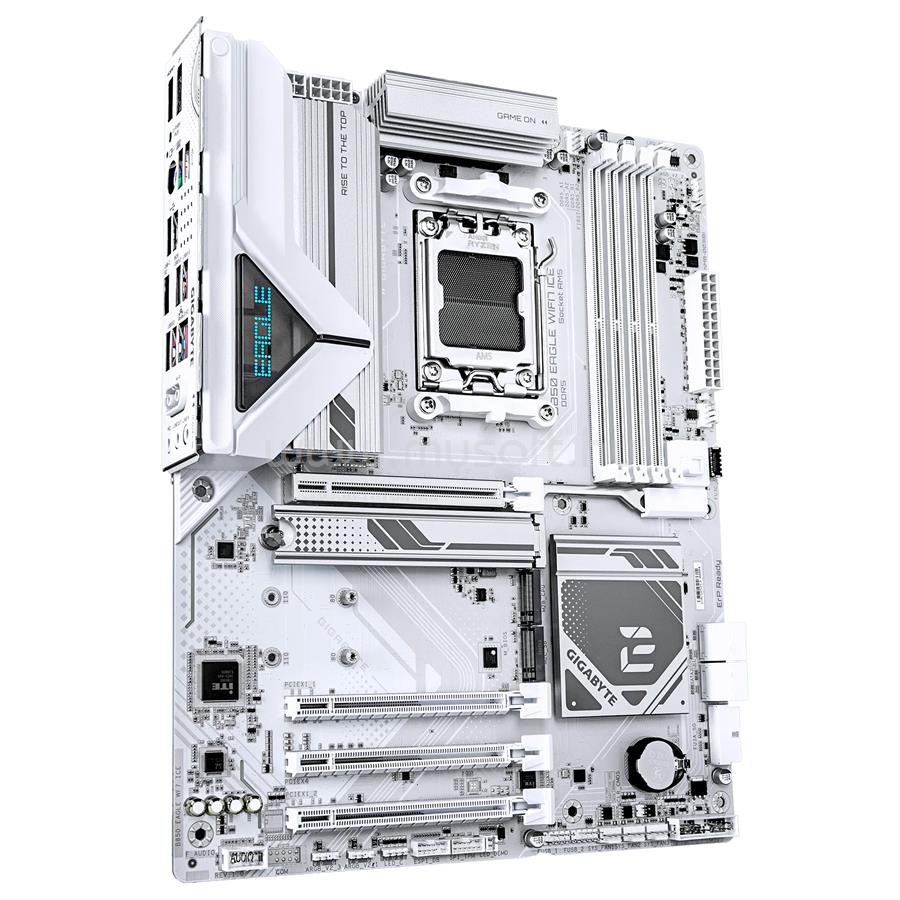

GIGABYTE ALAPLAP B850 EAGLE WIFI7 ICE (AM5, ATX)

• CPU

• AMD Socket AM5, support for:
• AMD Ryzen 9000 Series Processors
• AMD Ryzen 8000 Series Processors
• AMD Ryzen 7000 Series Processors
• (Go to GIGABYTE's website for the latest CPU support list.)

• Chipset

• AMD B850

• Memory

• Support for MT/s memory modules
• DDR5 8200(O.C)
• 8000(O.C)
• 7950(O.C)
• 7900(O.C)
• 7800(O.C)
• 7600(O.C.)
• 7400(O.C.)
• 7200(O.C.)
• 7000(O.C.)
• 6800(O.C.)
• 6600(O.C.)
• 6400(O.C)
• 6200(O.C)
• 6000(O.C)
• 5800(O.C)
• 5600(O.C)
• 5200
• 4800
• 4400
• DIMM Sockets
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)
• Architecture
• Dual channel memory architecture
• Module Support
• non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
• Overclocking Profiles
• AMD EXtended Profiles for Overclocking (AMD EXPO™)
• Extreme Memory Profile (XMP)

• Onboard Graphics

• Integrated Graphics Processor with AMD Radeon Graphics support:
• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
• * Support for DisplayPort 1.4 version and HDR.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
• ** Support for native HDMI 2.1 TMDS compatible ports.

• Audio

• Realtek© Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

• LAN

• Realtek© 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication module

• Realtek© Wi-Fi 7 RTL8922AE
• 802.11a, b, g, n, ac, ax, be
• 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.4
• Support for 11be 160MHz wireless standard

• Expansion Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
• AMD Ryzen 9000/7000 Series Processors: PCIe 5.0 x16 mode
• AMD Ryzen 8000 Series-Phoenix 1 Processors: PCIe 4.0 x8 mode
• AMD Ryzen 8000 Series-Phoenix 2 Processors: PCIe 4.0 x4 mode
• Chipset:
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
• 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

• Storage Interface

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
• AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
• 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
• AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
• 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• USB

• CPU:
• 1 x USB Type-C© port on the back panel, with USB 3.2 Gen 1 support
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• Chipset:
• 1 x USB Type-C© port with USB 3.2 Gen 1 support, available through the internal USB header
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 4 x USB 2.0/1.1 ports on the back panel
• Chipset+USB 2.0 Hub:
• 4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 3 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C© header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

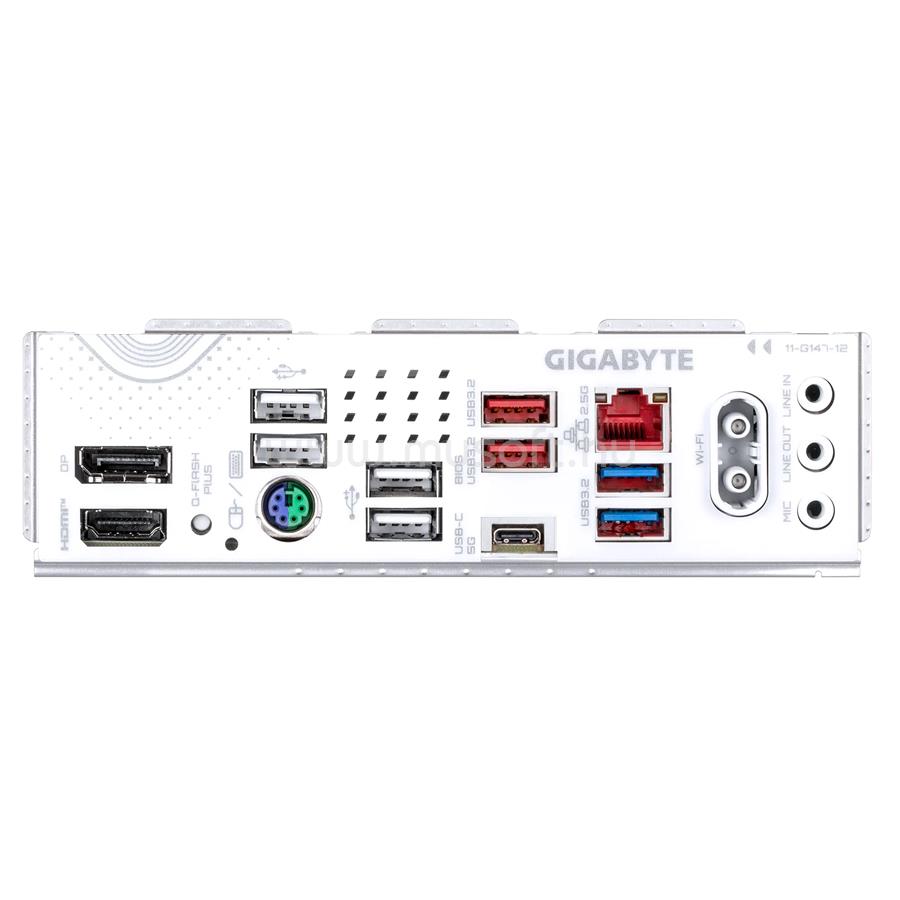

• Back Panel Connectors

• 1 x DisplayPort
• 1 x HDMI port
• 1 x Q-Flash Plus button
• 4 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 1 x USB Type-C© port
• 1 x RJ-45 port
• 2 x USB 3.2 Gen 1 ports
• 2 x antenna connectors (2T2R)
• 3 x audio jacks

• I/O Controller

• iTE© I/O Controller Chip

• H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

• BIOS

• 1 x 256 Mbit flash
• Licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

• Support for GIGABYTE Control Center (GCC)
• * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

• Bundled Software

• Norton© Internet Security (OEM version)
• LAN bandwidth management software

• Operating System

• Support for Windows 11 64-bit

• Form Factor

• ATX Form Factor
• 30.5cm x 24.4cm
