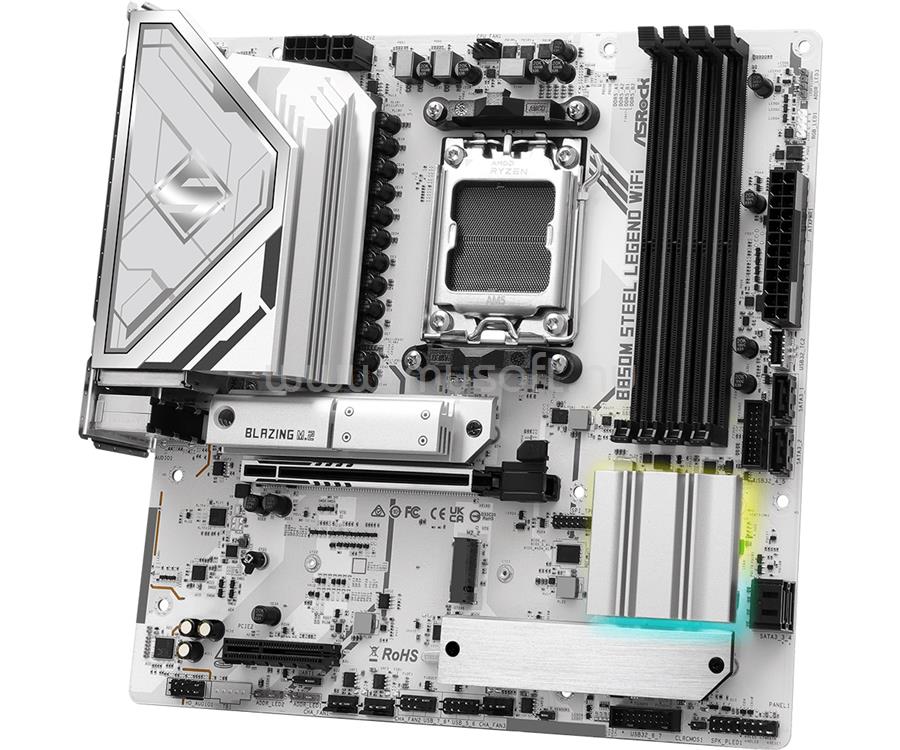

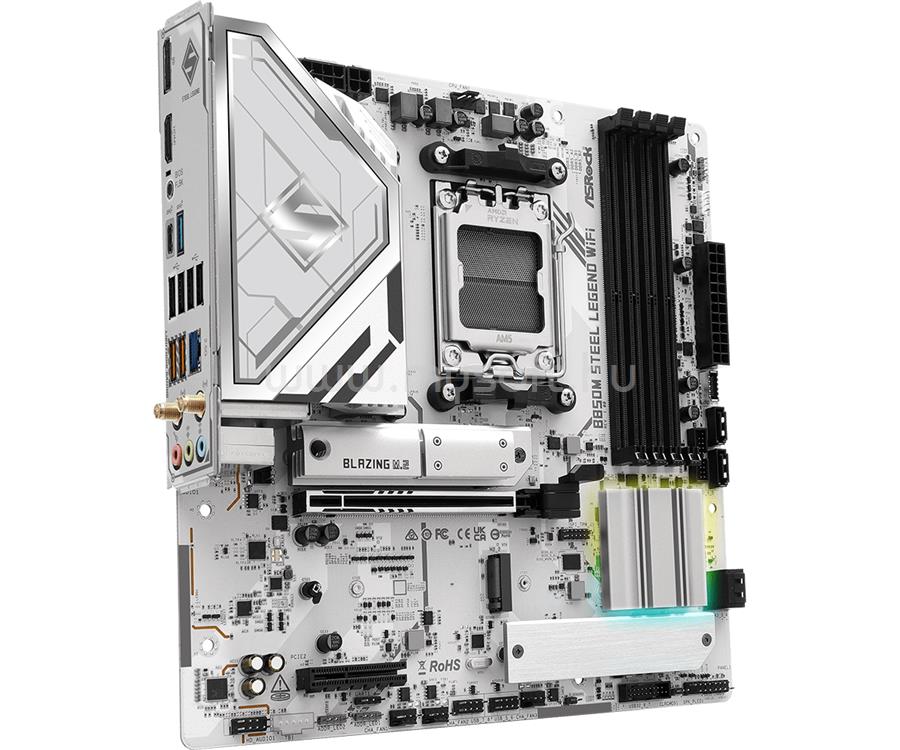

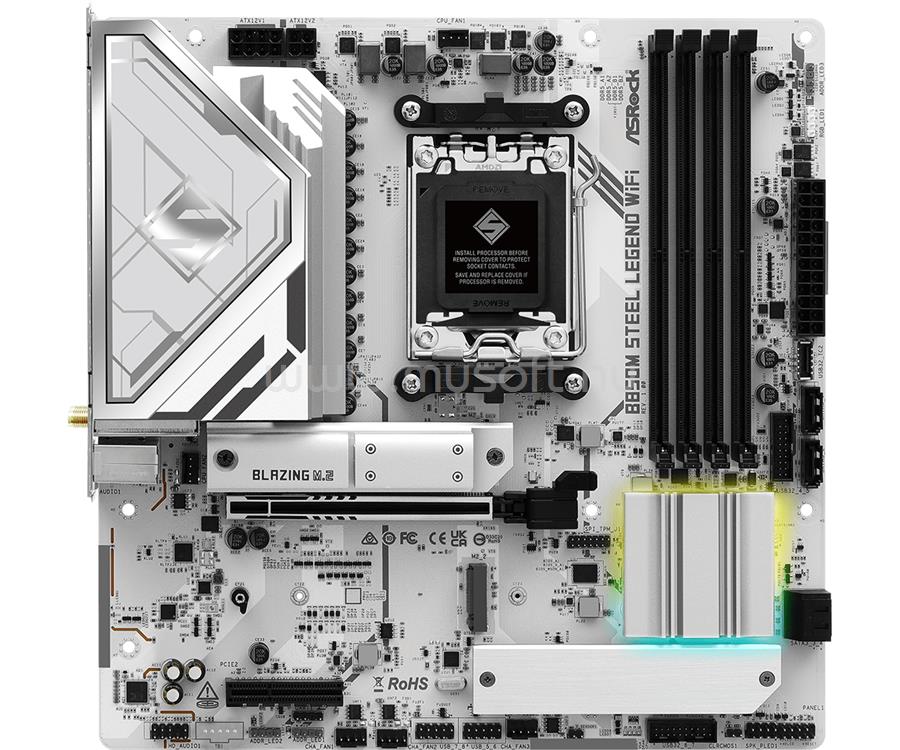

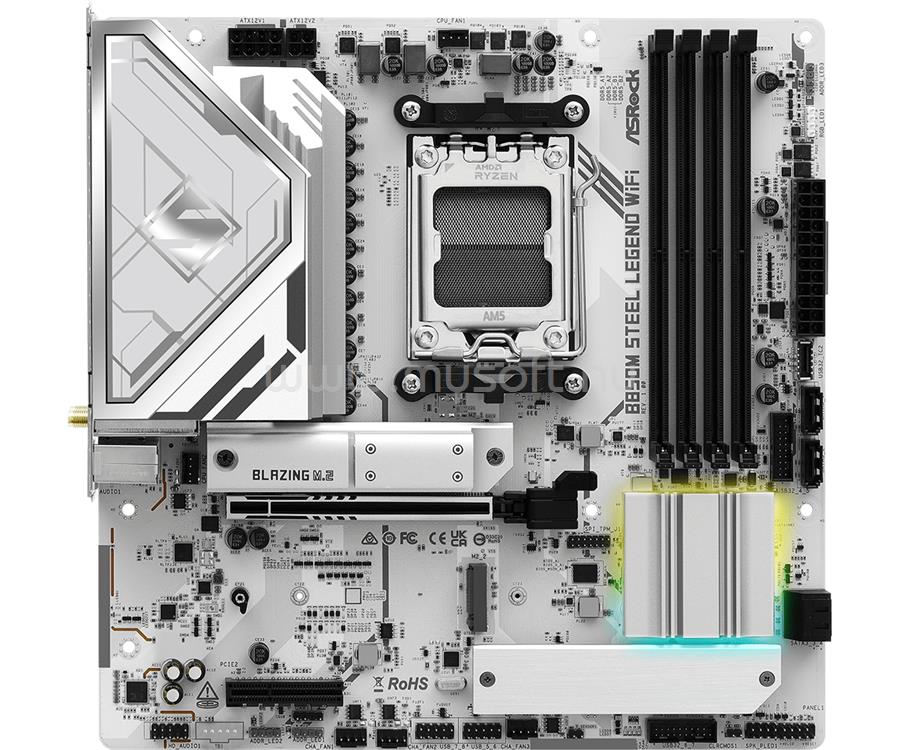

ASROCK ALAPLAP B850M STEEL LEGEND WIFI (AM5, MATX)

• Unique Feature

• Superb Productivity
• - PCIe Gen5 (Graphics, M.2)
• - Dual Channel DDR5
• Rock-Solid Durability
• - 12+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor
• - Flexible Integrated I/O Shield
• - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
• Ultrafast Connectivity
• - 2.5G LAN, 802.11be Wi-Fi 7 Module
• EZ Update
• - BIOS Flashback Button
• - ASRock Auto Driver Installer
• EZ Troubleshooter
• - ASRock Post Status Checker

• CPU

• - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
• * The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.

• Chipset

• - AMD B850

• Memory

• - Dual Channel DDR5 Memory Technology
• - 4 x DDR5 DIMM Slots
• - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
• - Max. capacity of system memory: 256GB
• - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

• BIOS

• - 256Mb AMI UEFI Legal BIOS with GUI support

• Graphics

• Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
• - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

• Audio

• - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• - Impedance Sensing on Rear Out port
• - Individual PCB Layers for R/L Audio Channel
• - Nahimic Audio

• LAN

• - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• - Dragon RTL8125BG
• - Supports Dragon 2.5G LAN Software
• - Smart Auto Adjust Bandwidth Control
• - Visual User Friendly UI
• - Visual Network Usage Statistics
• - Optimized Default Setting for Game, Browser, and Streaming Modes
• - User Customized Priority Control

• Wireless LAN

• - 802.11be 2x2 Wi-Fi 7 Module
• - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
• - Supports 2.4GHz/5GHz/6GHz* frequency band
• - Supports 160MHz channel bandwidth with 6GHz frequency band*
• - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
• - Supports Bluetooth 5.4
• - Supports MU-MIMO
• * The Wi-Fi 7 module is supported by Microsoft Windows© 11 only. There is no driver available for Windows© 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows© Update and software updates once available.

• Slots

• CPU:
• - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
• - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*
• Chipset:
• - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• - 15? Gold Contact in VGA PCIe Slot (PCIE1)
• * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
• Supports NVMe SSD as boot disks

• Storage

• CPU:
• - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
• Chipset:
• - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
• - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• - 4 x SATA3 6.0 Gb/s Connectors
• *Supports NVMe SSD as boot disks
• M2_1 is the first priority for M.2 installation.
• M2_1 will run at Gen5x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.

• RAID

• - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
• * Requires additional M.2 NVMe expansion cards to support RAID 10

• USB

• CPU:
• - 1 x USB 3.2 Gen2 Type-C (Rear)
• - 1 x USB 3.2 Gen2 Type-A (Rear)
• - 1 x USB 3.2 Gen1 Type-A (Rear (USB32_2))
• Chipset:
• - 1 x USB 3.2 Gen1 Type-C (Front)
• - 5 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 4 Front)
• - 8 x USB 2.0 (4 Rear, 4 Front)
• * All USB ports support ESD Protection

• Connector

• - 1 x SPI TPM Header
• - 1 x Thermistor Cable Header
• - 1 x Power LED and Speaker Header
• - 1 x RGB LED Header*
• - 3 x Addressable LED Headers**
• - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
• - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
• - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
• - 1 x Front Panel Audio Connector
• - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• - 1 x Front Panel Type C USB 3.2 Gen1 Header
• * Supports in total up to 12V/3A, 36W LED Strip
• ** Support in total up to 5V/3A, 15W LED Strip
• *** CPU_FAN1 supports the fan power up to 1A (12W).
• CPU_FAN2 and CHA_FAN1~3 support the fan power up to 3A (36W).
• CPU_FAN2 and CHA_FAN1~3 can auto detect if 3-pin or 4-pin fan is in use.

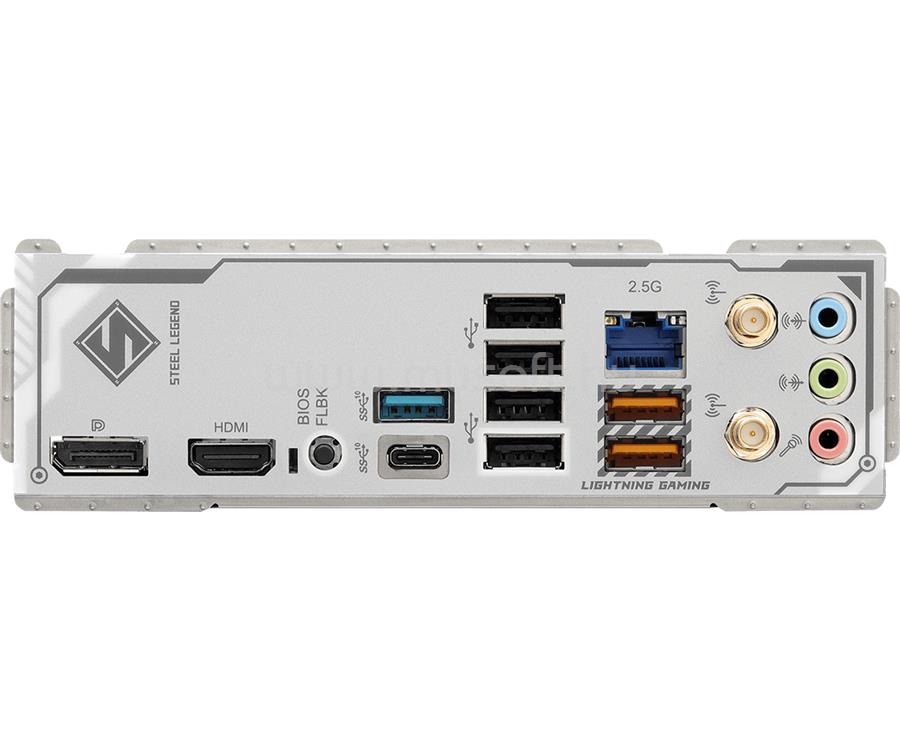

• Rear Panel I/O

• - 2 x Antenna Ports
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
• - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• - 2 x USB 3.2 Gen1 Ports
• - 4 x USB 2.0 Ports
• - 1 x RJ-45 LAN Port
• - 1 x BIOS Flashback Button
• - HD Audio Jacks: Line in / Front Speaker / Microphone

• Software and UEFI

• Software
• - ASRock Motherboard Utility (A-Tuning)
• - ASRock Dragon 2.5G LAN Software
• - ASRock Polychrome SYNC*
• UEFI
• - ASRock EZ Mode
• - ASRock Full HD UEFI
• - ASRock Auto Driver Installer
• - ASRock Instant Flash
• *These utilities can be downloaded from ASRock Live Update & APP Shop.

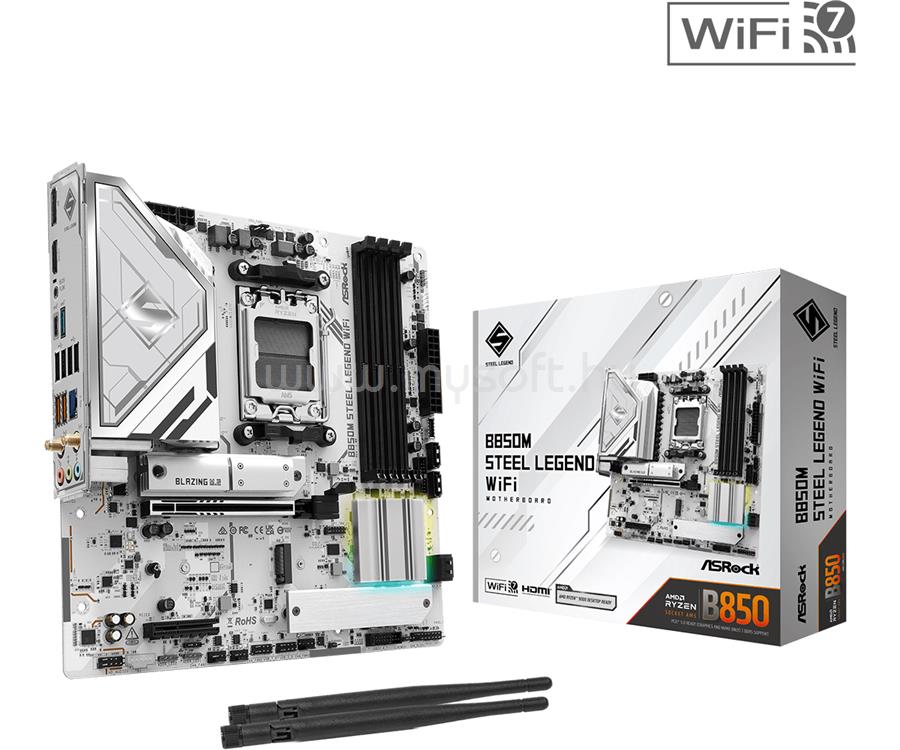

• Accessories

• - 2 x SATA Data Cables
• - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
• - 1 x Thermistor Cable
• - 2 x Screws for M.2 Sockets
• - 1 x Standoff for M.2 Socket

• Form Factor

• - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• - 2oz Copper PCB

• OS

• - Microsoft Windows© 10 64-bit / 11 64-bit
