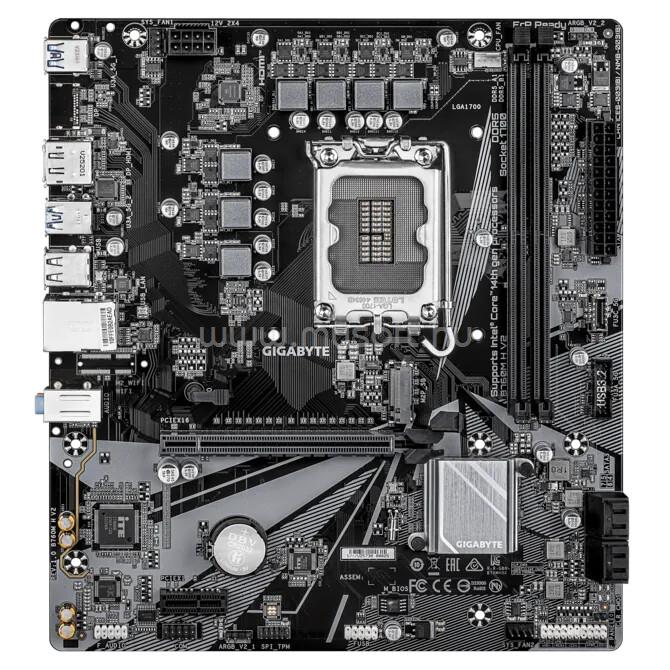

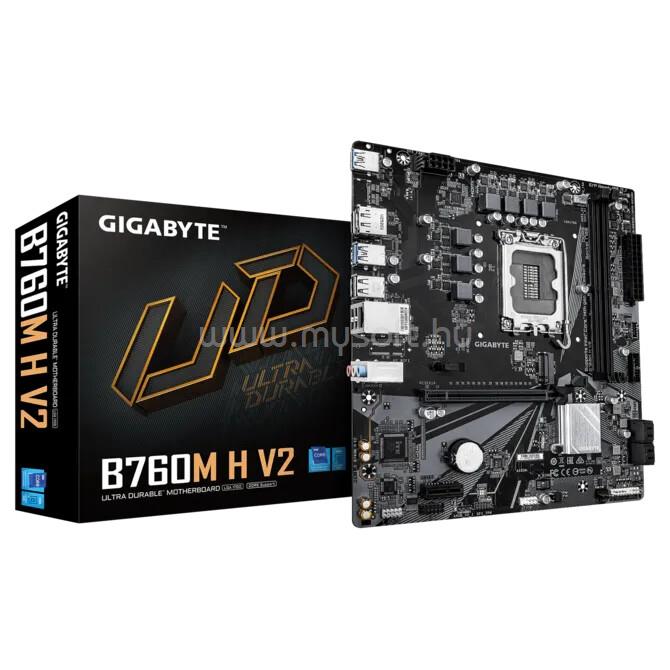

GIGABYTE ALAPLAP B760M H V2 (LGA1700, MATX)

• CPU

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
• (Go to GIGABYTE's website for the latest CPU support list.)
• L3 cache varies with CPU

• Chipset

• Intel B760 Express Chipset

• Memory

• Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

• Onboard Graphics

• Integrated Graphics Processor-Intel HD Graphics support:
• - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
• * Support for DisplayPort 1.2 version and HDCP 2.3
• - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version and HDCP 2.3.
• ** Support for native HDMI 2.1 TMDS compatible ports.
• (Graphics specifications may vary depending on CPU support.)

• Audio

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN

• Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

• Expansion Slots

• CPU:
• - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
• Chipset:
• - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

• Storage Interface

• Chipset:
• - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
• - 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USB

• Chipset:
• - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
• - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
• - 2 x USB 2.0/1.1 ports available through the internal USB header
• Chipset+USB 2.0 Hub:
• - 4 x USB 2.0/1.1 ports on the back panel

• Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 2 x addressable RGB Gen2 LED strip headers
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

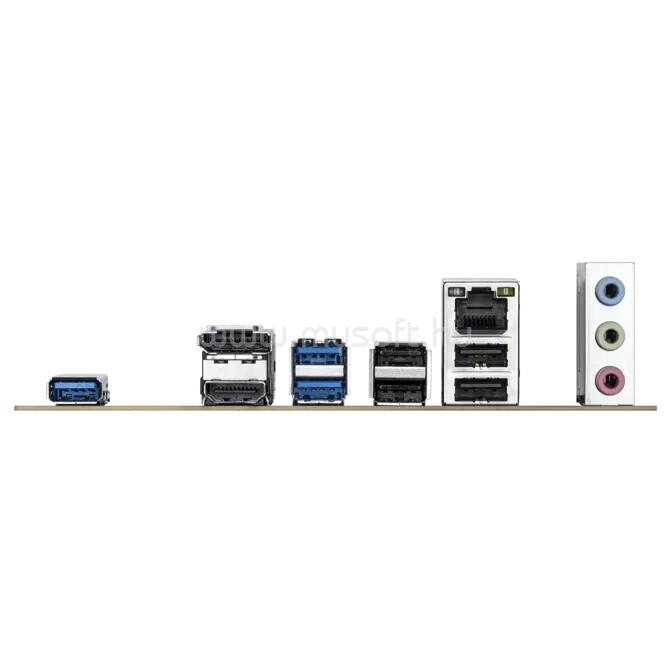

• Back Panel Connectors

• 1 x DisplayPort (Note)
• 1 x HDMI port (Note)
• 3 x USB 3.2 Gen 1 port
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks
• (Note) Actual support may vary by CPU.

• I/O Controller

• iTE I/O Controller Chip

• H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• * Whether the fan speed control function is supported will depend on the fan you install.

• BIOS

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

• Support for GIGABYTE Control Center (GCC)
• * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Smart Backup

• Bundled Software

• Norton Internet Security (OEM version)

• Operating System

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

• Form Factor

• Micro ATX Form Factor; 24.4cm x 22.0cm

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
