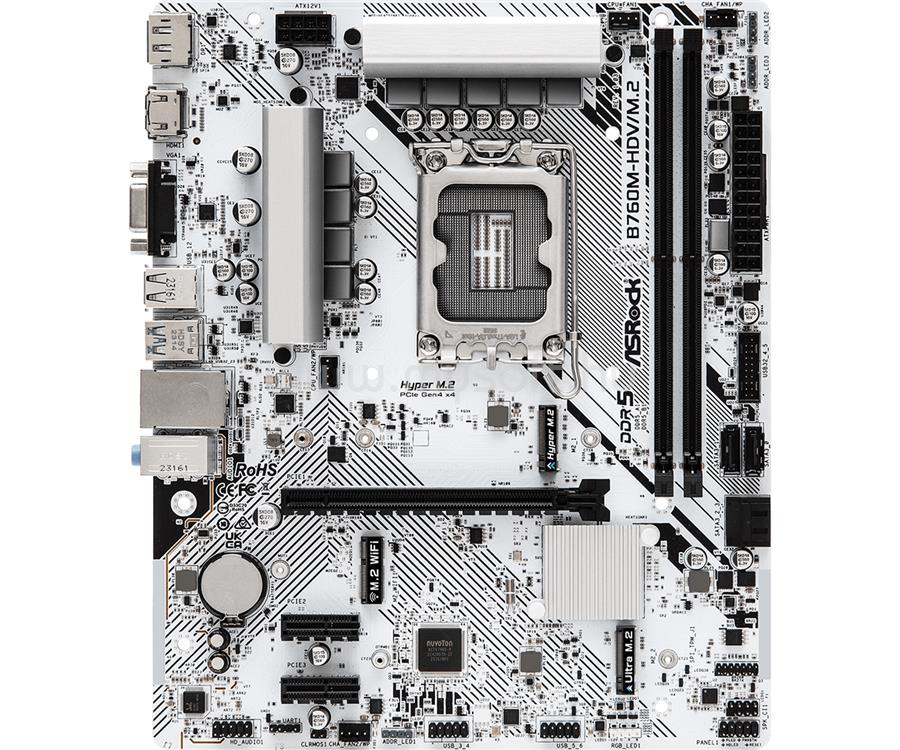

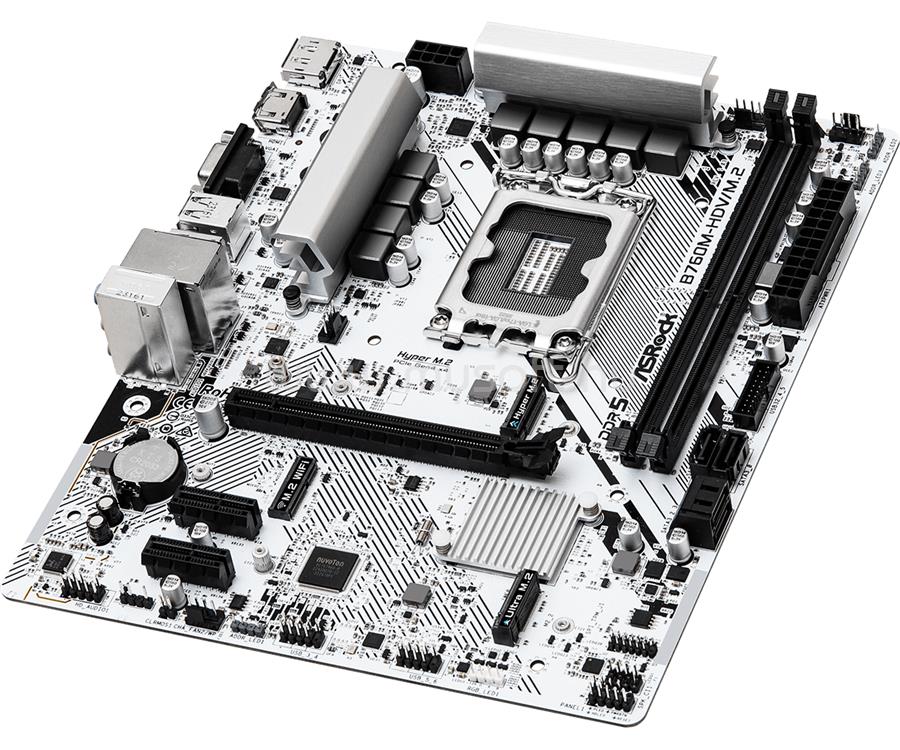

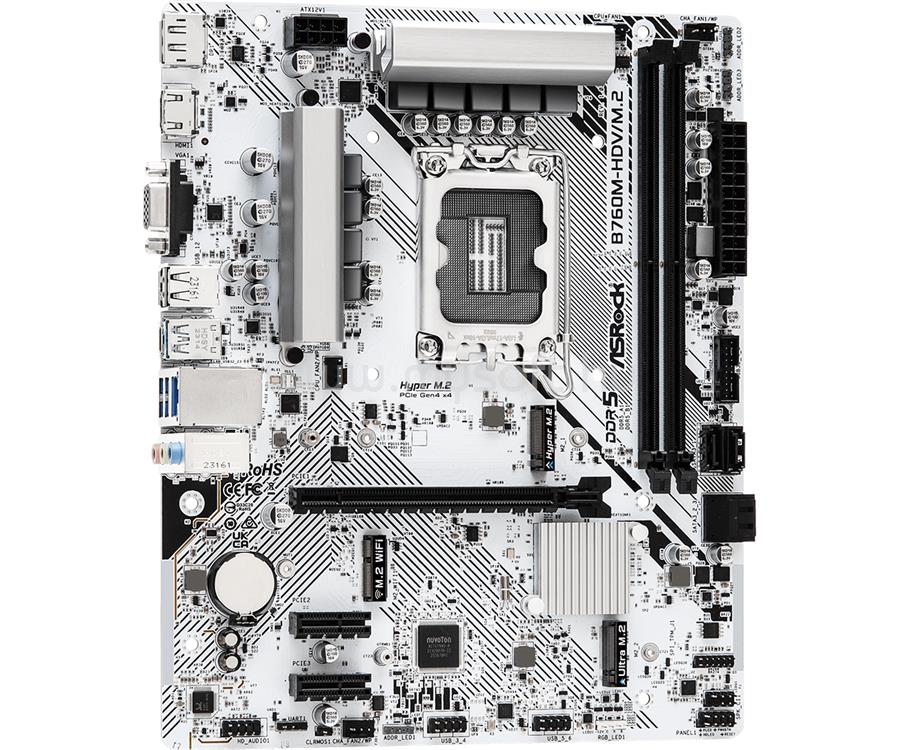

ASROCK ALAPLAP B760M-HDV/M.2 (LGA1700, MATX)

• Unique Feature

• Superb Productivity
• Dual Channel DDR5
• Rock-Solid Durability
• 7+1+1 Power Phase
• ASRock Intel© 4-Layer Memory POOL (Planes on Outer Layers) Technology
• Ultrafast Connectivity
• 2.5G LAN
• EZ Update
• ASRock Auto Driver Installer

• CPU

• Supports 14th, 13th & 12th Gen Intel© Core™ Processors (LGA1700)
• Supports Intel© Hybrid Technology
• Supports Intel© Turbo Boost Max 3.0 Technology
• Supports Intel© Thermal Velocity Boost (TVB)
• Supports Intel© Adaptive Boost Technology (ABT)

• Chipset

• Intel© B760

• Memory

• Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
• Max. capacity of system memory: 128GB
• Supports Intel© Extreme Memory Profile (XMP) 3.0
• * 1DPC 1R Up to 7200+ MHz (OC), 5600 MHz Natively.
• 1DPC 2R Up to 6800+ MHz (OC), 5200 MHz Natively.
• Please refer to Memory Support List on ASRock's website for more information.

• BIOS

• 128Mb AMI UEFI Legal BIOS with GUI support

• Graphics

• Intel© Xe Graphics Architecture (Gen 12)
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
• * Intel© UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

• Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

• LAN

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual User Friendly UI
• Visual Network Usage Statistics
• Optimized Default Setting for Game, Browser, and Streaming Modes
• User Customized Priority Control

• Slots

• CPU
• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
• Chipset
• 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• * Supports NVMe SSD as boot disks

• Storage

• Chipset
• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes**
• 4 x SATA3 6.0 Gb/s Connectors
• * Supports Intel© Volume Management Device (VMD)
• ** Supports NVMe SSD as boot disks

• RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• USB

• 1 x USB 3.2 Gen1 Type-C (Rear)
• 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)
• * All USB ports support ESD Protection

• Connector

• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• *Supports in total up to 12V/3A, 36W LED Strip
• ** Support in total up to 5V/3A, 15W LED Strip
• *** CPU_FAN1 supports the fan power up to 1A (12W).
• **** CPU_FAN2/WP supports the fan power up to 2A (24W).
• ***** CHA_FAN1~2/WP support the fan power up to 2A (24W).
• CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

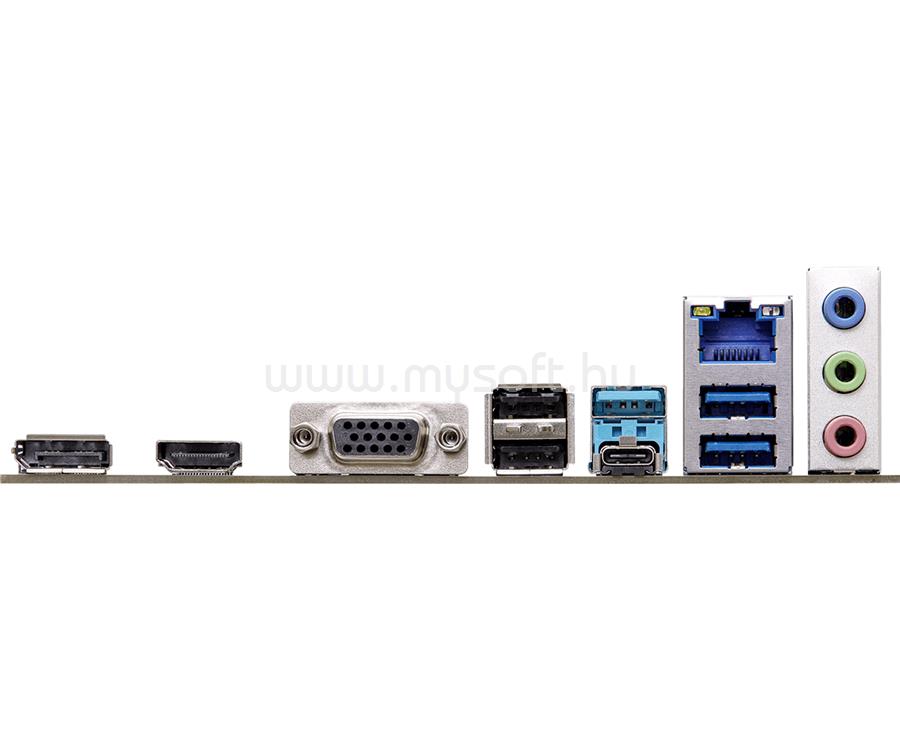

• Rear Panel I/O

• 2 x Antenna Mounting Points
• 1 x D-Sub Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen1 Type-C Port
• 3 x USB 3.2 Gen1 Type-A Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone

• Software and UEFI

• Software
• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC*
• UEFI
• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• ASRock Easy RAID Installer
• *These utilities can be downloaded from ASRock Live Update & APP Shop.

• Accessories

• 1 x User Manual
• 1 x I/O Shield
• 2 x SATA Data Cables
• 3 x Screws for M.2 Sockets

• Form Factor

• Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm

• OS

• Microsoft Windows© 10 64-bit / 11 64-bit

• Certifications

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
