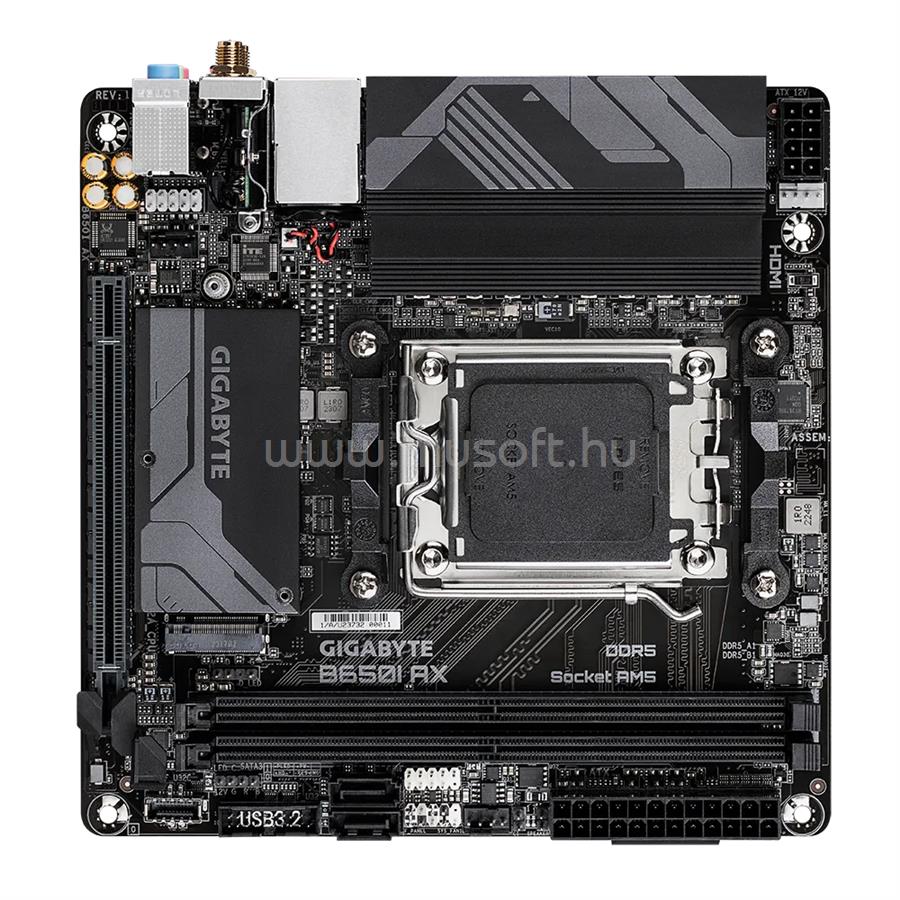

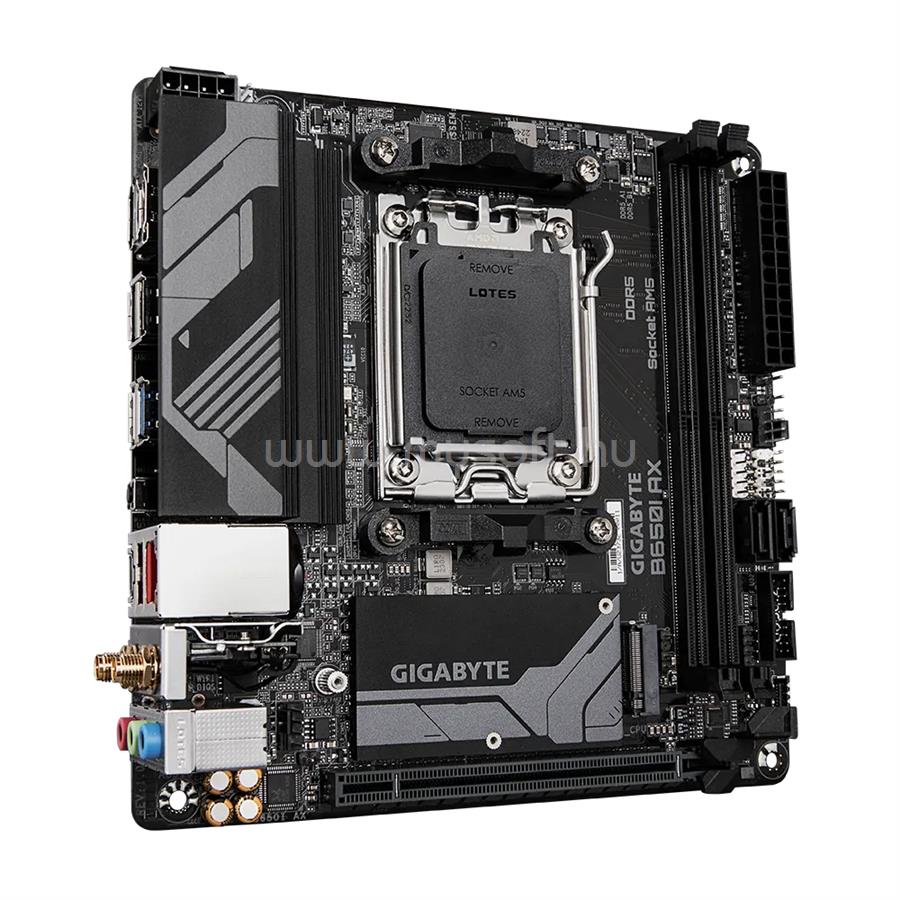

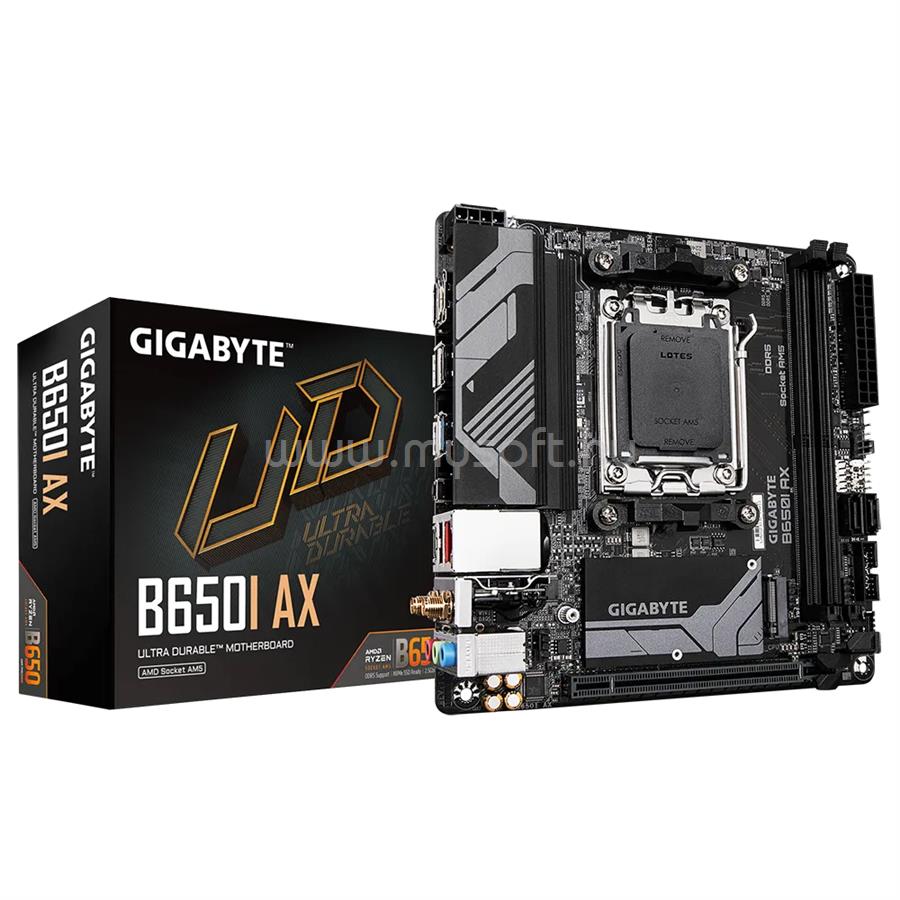

GIGABYTE ALAPLAP B650I AX (AM5, MINI-ITX)

• CPU

• AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors

• Chipset

• AMD B650

• Memory

• Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
• (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

• Onboard Graphics

• Integrated Graphics Processor:
• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
• * Support for DisplayPort 1.4 version.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version and HDCP 2.3.
• ** Support native HDMI 2.1 TMDS compatible ports.
• (Graphics specifications may vary depending on CPU support.)

• Audio

• Realtek© Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN

• Realtek© 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication module

• Realtek© Wi-Fi 6E RTL8852CE
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard
• (Actual data rate may vary depending on environment and equipment.)

• Expansion Slots

• 1 x PCI Express x16 slot, integrated in the CPU:
• AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
• * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

• Storage Interface

• 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
• AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
• 2 x SATA 6Gb/s connectors
• RAID 0 and RAID 1 support for NVMe SSD storage devices
• RAID 0 and RAID 1 support for SATA storage devices

• USB

• CPU:
• 1 x USB Type-C© port on the back panel, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 1 x USB 2.0/1.1 port on the back panel
• Chipset:
• 1 x USB Type-C© port with USB 3.2 Gen 1 support, available through the internal USB header
• 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
• 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

• Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 2 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x speaker header
• 1 x USB Type-C© header, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header

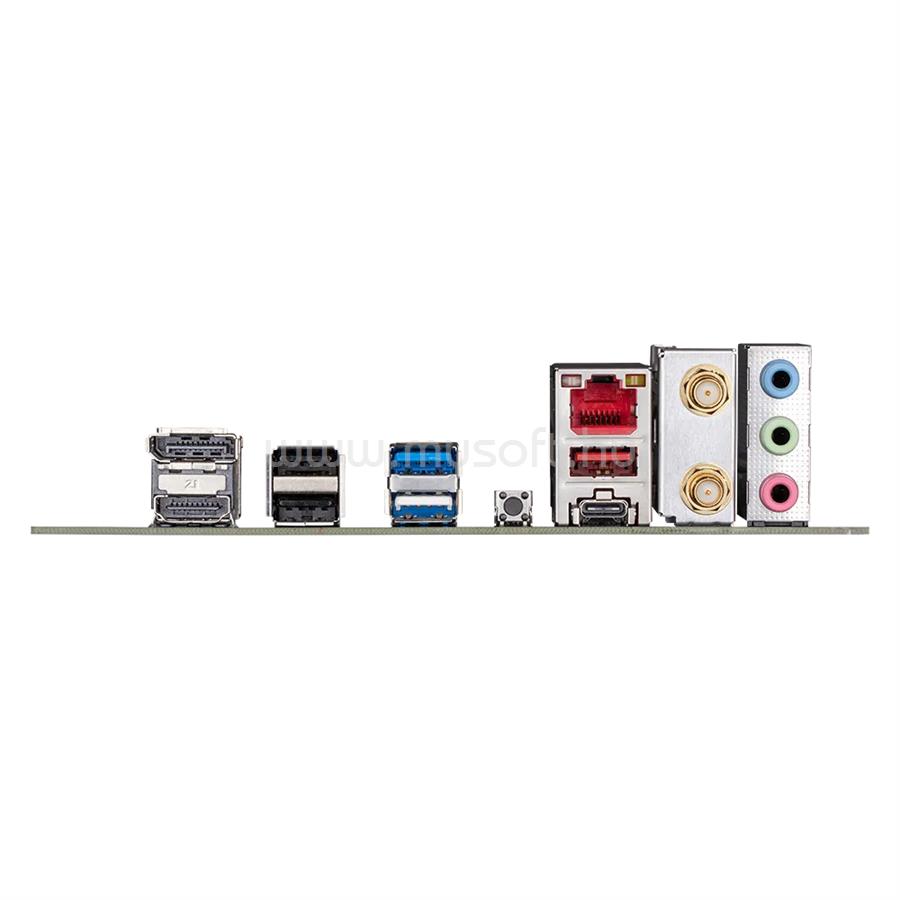

• Back Panel Connectors

• 1 x DisplayPort
• 1 x HDMI port
• 1 x USB Type-C© port, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 1 x USB 3.2 Gen 1 port
• 3 x USB 2.0/1.1 ports
• 1 x Q-Flash Plus button
• 1 x RJ-45 port
• 2 x SMA antenna connectors (2T2R)
• 3 x audio jacks

• I/O Controller

• iTE© I/O Controller Chip

• H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• * Whether the fan speed control function is supported will depend on the fan you install.

• BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

• Support for GIGABYTE Control Center (GCC)
• * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Q-Flash Plus

• Bundled Software

• Norton© Internet Security (OEM version)
• LAN bandwidth management software

• Operating System

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

• Form Factor

• Mini-ITX Form Factor; 17.0cm x 17.0cm
