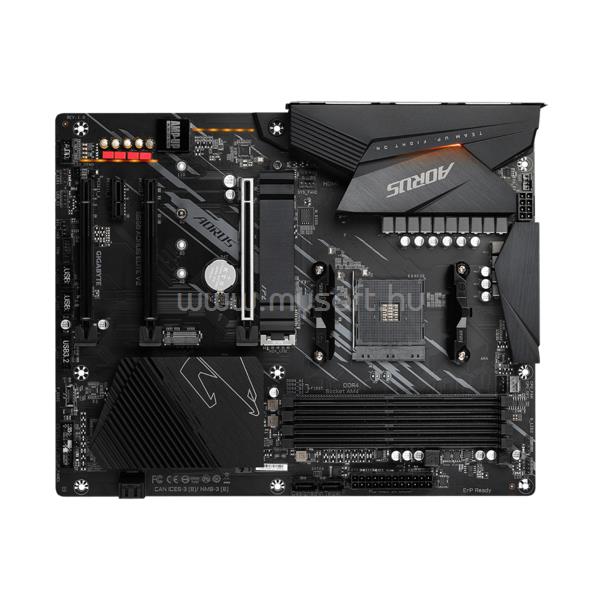

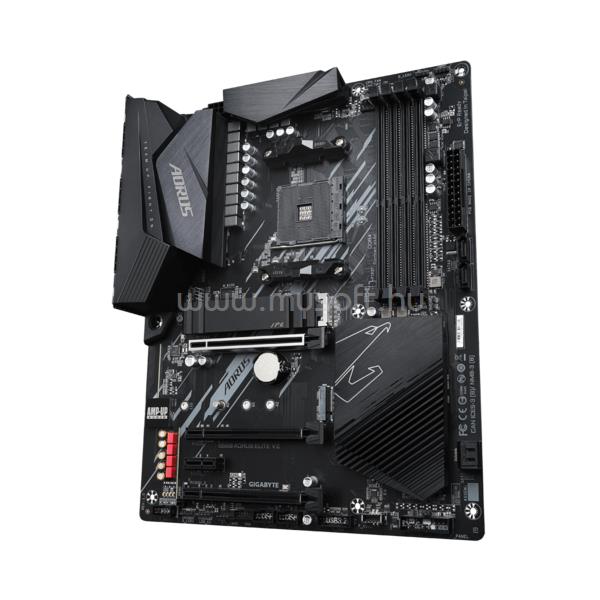

GIGABYTE ALAPLAP B550 AORUS ELITE V2 (AM4, ATX)

• Specification

• CPU
• AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
• Chipset
• AMD B550
• Memory
• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Onboard Graphics
• Integrated Graphics Processor:
• 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
• * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
• Maximum shared memory of 16 GB
• Audio
• Realtek ALC1200 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out
• LAN
• Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
• Expansion Slots
• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
• - AMD Ryzen 5000 Series and Ryzen 3000 Series Processors support PCIe 4.0 x16 mode
• - AMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series Processors support PCIe 3.0 x16 mode
• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
• - Supporting PCIe 3.0 x2 mode
• 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
• - Supporting PCIe 3.0 x1 mode
• 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
• - Supporting PCIe 3.0 x1 mode
• Storage Interface
• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
• - AMD Ryzen 5000 Series and Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
• - AMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
• 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
• - Supporting SATA and PCIe 3.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors, integrated in the Chipset:
• - Support for RAID 0, RAID 1, and RAID 10
• USB
• CPU:
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 2 x USB 3.2 Gen 1 ports on the back panel
• Chipset:
• 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
• 1 x USB 3.2 Gen 1 port on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 2 x USB 2.0/1.1 ports on the back panel
• Chipset+USB 2.0 Hub:
• 4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 3 x system fan headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x Clear CMOS jumper
• *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

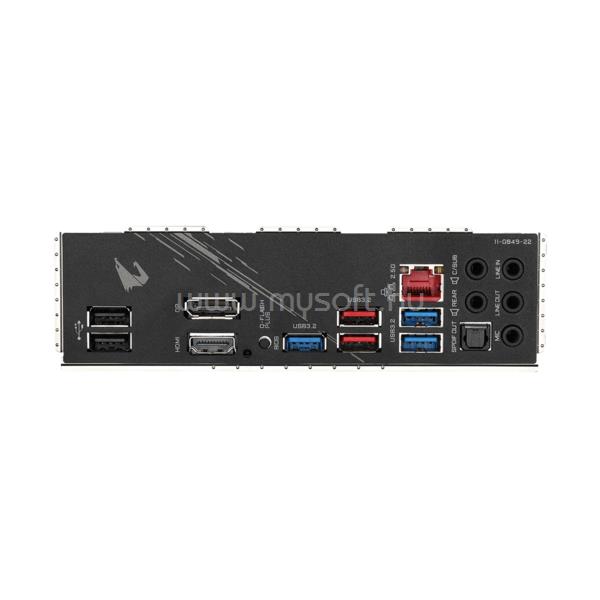

• Back Panel Connectors
• 1 x DisplayPort
• 1 x HDMI port
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 3 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x Q-Flash Plus button
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 5 x audio jacks
• I/O Controller
• iTE I/O Controller Chip
• H/W Monitoring
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Overheating warning
• Fan fail warning
• Fan speed control
• * Whether the fan speed control function is supported will depend on the fan you install.
• BIOS
• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• BIOS
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• RGB Fusion
• Smart Backup
• System Information Viewer
• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install
• Bundled Software
• Norton Internet Security (OEM version)
• Realtek 8125 Gaming LAN Bandwidth Control Utility
• Operating System
• Support for Windows 11 64-bit
• Support for Windows 10 64-bit
• Form Factor
• ATX Form Factor; 30.5cm x 24.4cm
