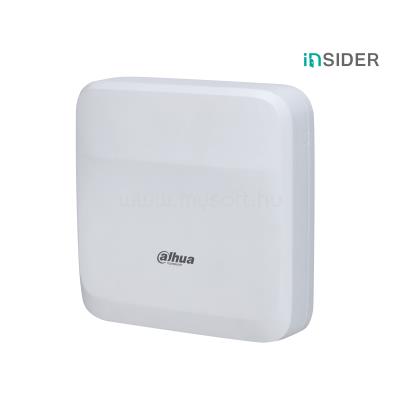

DAHUA ASC3202B BELÉPTETŐ RENDSZER KÖZPONT (4 OLVASÓ BEMENET (2 AJTÓ 2 IRÁNY), I/O, 1X RJ45, 3XRS-485)

• System

• Main Processor
• Embedded processor
• Internet Protocol
• P2P; IPv4; DNS; DDNS; TCP; UDP
• Interoperability
• ONVIF; CGI
• SDK and API
• Yes

• Basic

• Product Type
• Controller
• Buzzer
• Yes
• Casing Material
• PC + ABS

• Function

• Unlock Mode
• Card; remote; password; fingerprint; Bluetooth; combination unlock
• Period List
• 128 periods
• Holiday Period
• 128 periods
• Network Update
• Yes
• Blocklist/Allowlist
• Yes
• Peripheral Card Reader
• Supports 2 × RS-485 card readers; 2 × Wiegand card readers
• Multi-user Authentication
• Yes (Use with platform)
• Real-time Monitoring
• Yes
• Multi-factor Authentication
• Yes
• Web Configuration
• Yes

• User

• User (Card) Type
• General user, VIP user, guest user, patrol user, blocklist user, and other users

• Capacity

• User Capacity
• 1,000 (main control mode), 10,000 (sub control mode)
• Fingerprint Capacity
• 3,000
• Card Capacity
• 5,000 (main control mode), 50,000 (sub control mode)
• Bluetooth Card Capacity
• 5,000
• Record Capacity
• 300,000

• Port

• RS-485
• 3
• Wiegand
• 2 × input
• Network Port
• 1 × RJ-45 10/100 Mbps Ethernet port
• Alarm Input
• 2 (digital quantity)
• Alarm Output
• 2 (digital quantity)
• Alarm Linkage
• Yes
• Exit Button
• 2
• Door Status Detection
• 2
• Lock Control
• 2

• Alarm

• Tamper Alarm
• Yes
• Duress Alarm
• Yes
• Door Sensor Timeout
• Yes
• Intrusion
• Yes
• Illegal Card Exceeding Threshold
• Yes
• Duress Fingerprint
• Yes

• General

• Power Supply
• Power in: 12V DC or Power over Ethernet IEEE 802.3at Type 2 Class 4
• Protection
• IK06
• Power Consumption
• Standby Power (no peripheral devices): ?2 W Working Power: Total power budget if powered by DC: 1700 mA at 12 V for peripheral devices (locks, readers etc.) Total power budget if powered by PoE: 1200 mA at 12 V for peripheral devices (locks, readers etc.)
• Product Dimensions
• 186.4 mm × 185.8 mm × 58.3mm (7.34" × 7.31" × 2.30") (L × W × H)
• Packaging Dimensions
• 254 mm × 243 mm × 86 mm (10.00" × 9.57" × 3.39") (L × W × H)
• Operating Temperature
• -10 °C to +55 °C (+14 °F to 131 °F)
• Operating Humidity
• 5%-95% (RH), non-condensing
• Operating Environment
• Indoor
• Gross Weight
• 0.99 kg (2.18 lb)
• Installation
• Surface Mount; Guide Rail Mount
• Certifications
• CE; FCC; UL
