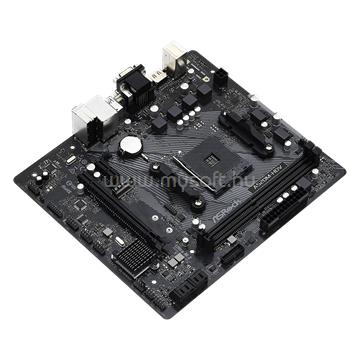

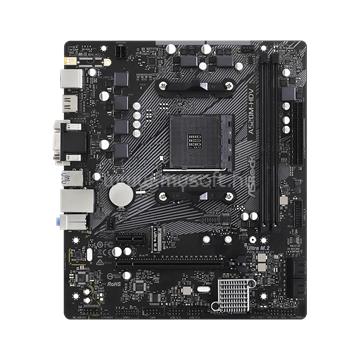

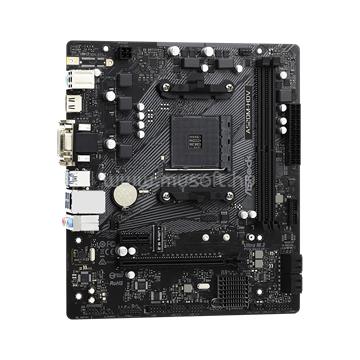

ASROCK ALAPLAP A520M-HDV (AM4, MATX)

• Unique Feature

• ASRock Super Alloy
• - Premium 50A Power Choke
• - Sapphire Black PCB
• - High Density Glass Fabric PCB
• ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop

• CPU

• - Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
• - 6 Power Phase design
• *Please refer to CPU support list for details.

• Chipset

• - AMD A520

• Memory

• - Dual Channel DDR4 Memory Technology
• - 2 x DDR4 DIMM Slots
• - AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
• - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
• - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
• - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
• - Max. capacity of system memory: 64GB**
• - Supports Extreme Memory Profile (XMP) memory modules
• - 15u Gold Contact in DIMM Slots

• BIOS

• - 128Mb AMI UEFI Legal BIOS with GUI support
• - Supports "Plug and Play"
• - ACPI 5.1 compliance wake up events
• - Supports jumperfree
• - SMBIOS 2.3 support
• - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment

• Graphics

• - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
• - DirectX 12, Pixel Shader 5.0
• - Shared memory default 2GB. Max Shared memory supports up to 16GB.**
• - Three graphics output options: D-Sub, DVI-D and HDMI
• - Supports Triple Monitor
• - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
• - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
• - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
• - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
• - Supports HDR (High Dynamic Range) with HDMI 2.1
• - Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports
• - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
• - Supports Microsoft PlayReady
• *Actual support may vary by CPU
• **The Max shared memory 16GB requires 32GB system memory installed.

• Audio

• - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
• - Supports Surge Protection

• LAN

• - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• - Realtek RTL8111H
• - Supports Wake-On-LAN
• - Supports Lightning/ESD Protection
• - Supports Energy Efficient Ethernet 802.3az
• - Supports PXE

• Slots

• - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
• - 1 x PCI Express 3.0 x1 Slot
• *Supports NVMe SSD as boot disks

• Storage

• CPU:
• - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
• Chipset:
• - 4 x SATA3 6.0 Gb/s Connectors
• *Supports NVMe SSD as boot disks
• NVMe SSD is not supported with AMD Athlon™ 3000G Processors
• Supports ASRock U.2 Kit

• RAID

• - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

• Connector

• - 1 x SPI TPM Header
• - 1 x COM Port Header
• - 1 x Chassis Intrusion and Speaker Header
• - 1 x CPU Fan Connector (4-pin)*
• - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
• - 1 x 24 pin ATX Power Connector
• - 1 x 4 pin 12V Power Connector
• - 1 x Front Panel Audio Connector
• - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
• - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
• *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
• **The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.
• CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

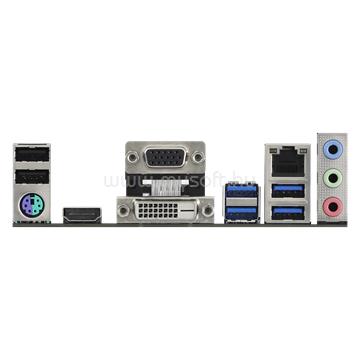

• Rear Panel I/O

• - 1 x PS/2 Mouse/Keyboard Port
• - 1 x D-Sub Port
• - 1 x DVI-D Port
• - 1 x HDMI Port
• - 2 x USB 2.0 Ports (Supports ESD Protection)
• - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• - HD Audio Jacks: Line in / Front Speaker / Microphone

• Software and UEFI

• Software
• - ASRock Motherboard Utility (A-Tuning)
• UEFI
• - ASRock Full HD UEFI
• - ASRock Instant Flash
• *These utilities can be downloaded from ASRock Live Update & APP Shop.

• Accessories

• - I/O Shield
• - 2 x SATA Data Cables
• - 1 x Screw for M.2 Socket

• Hardware Monitor

• - Temperature Sensing: CPU, Chassis
• - Fan Tachometer: CPU, Chassis Fans
• - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
• - Fan Multi-Speed Control: CPU, Chassis Fans
• - CASE OPEN detection
• - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

• Form Factor

• - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
• - Solid Capacitor design

• OS

• - Microsoft Windows© 10 64-bit / 11 64-bit
