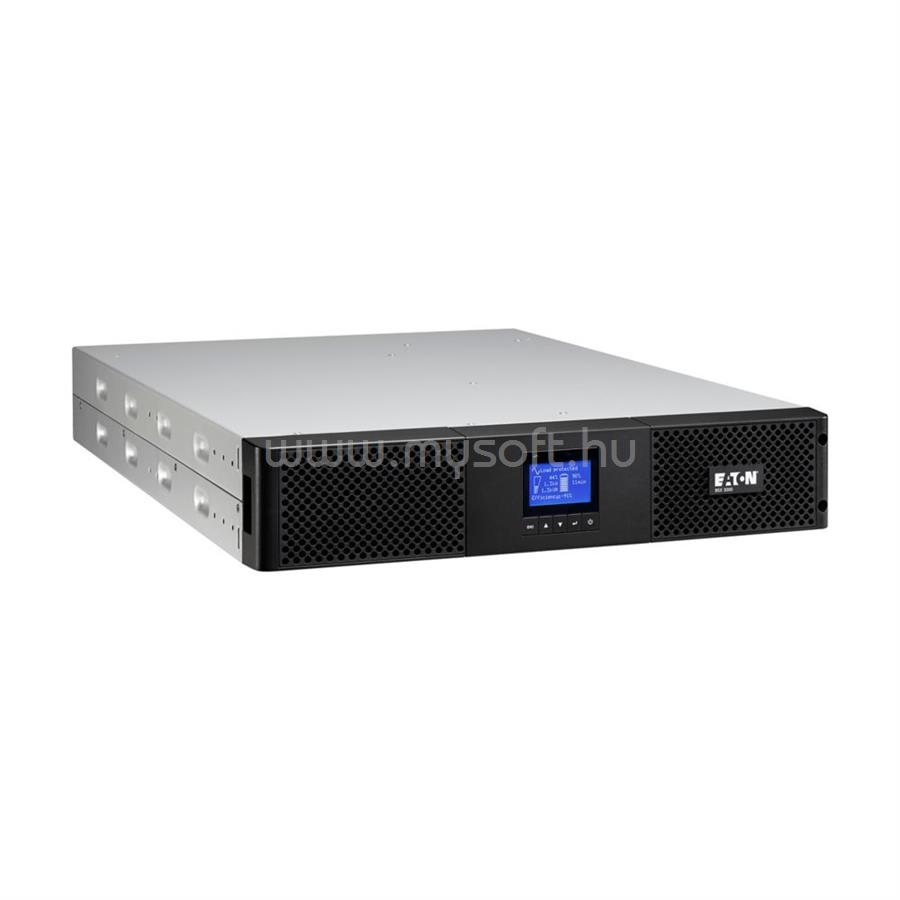

EATON 9SX 3000I 2700W RACK SZÜNETMENTES TÁPEGYSÉG

• GENERAL SPECIFICATIONS

• PRODUCT LENGTH/DEPTH
• 608 mm
• PRODUCT HEIGHT
• 86.5 mm
• PRODUCT WIDTH
• 438 mm
• PRODUCT WEIGHT
• 26.5 kg

• BATTERY

• BATTERY TYPE
• Sealed, lead-acid
• RUNTIME GRAPH
• View runtime graph
• BATTERY REPLACEMENT
• Hot-swappable internal batteries and extended battery modules (EBMs)
• BATTERY QUANTITY
• 6
• BATTERY MANAGEMENT
• ABM & Temperature compensated charging method (user selectable)
• Automatic battery test
• Deep discharge protection
• Automatic recognition of external battery units
• BATTERY RATING
• 12 V / 9 Ah
• EXTENDED BATTERY CAPABILITY
• Yes

• ELECTRICAL OUTPUT

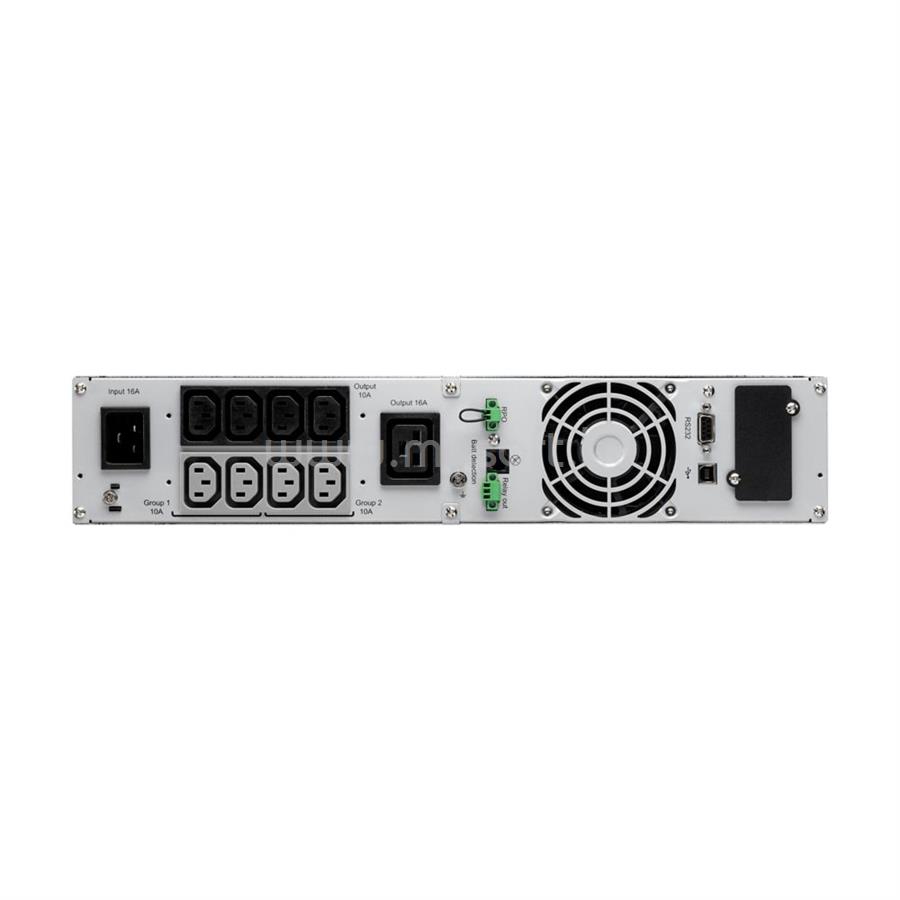

• RECEPTACLE
• (8) C13, (1) C19
• VOLTAGE
• 230V
• WATTAGE
• 2700 W
• OUTPUT POWER FACTOR
• 0.9
• OUTPUT VOLTAGE RANGE
• 200/208/220/230/240 V +/- 2%
• OUTPUT WAVEFORM
• Sine wave
• OUTPUT NOMINAL VOLTAGE
• 230V default (200/208/220/230/240V)
• VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX
• 3
• FEED TYPE
• 1
• TOPOLOGY
• Online/Double-conversion
• VA RATING
• 3000 VA

• ELECTRICAL INPUT

• INPUT CONNECTION
• C20
• INPUT NOMINAL VOLTAGE
• 230V default (200/208/220/230/240/250V)
• NOMINAL FREQUENCY
• 50/60 Hz
• INPUT POWER FACTOR
• >.99
• INPUT CORD LENGTH
• 1.8m
• INPUT VOLTAGE RANGE
• 200-276 Vac without derating (up to 140-276 Vac with derating)
• INPUT FREQUENCY RANGE
• 40-70 Hz

• COMMUNICATIONS

• INCLUDES NETWORK CARD
• No
• COMMUNICATION
• USB port (HID compliant)
• Serial port (RS232)
• Mini-terminal block for remote power off
• Mini-terminal block for output relay
• Dry contacts (2 outputs, 1 input, optocoupler, DB9)
• ETHERNET INTERFACE
• No
• USER INTERFACE
• Multilingual graphical LCD display
• POTENTIAL FREE SWITCH CONTACT
• Yes
• EXPANSION SLOTS
• One slot for optional communication card
• SOFTWARE COMPATIBILITY
• Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
• TYPE OF INTERFACE
• Other

• ENVIRONMENTAL

• ALTITUDE
• 3000 m
• NOISE LEVEL
• <45 dB at 1 meter
• TEMPERATURE RANGE
• 0° to 40°C (32° to 104°F)
• RELATIVE HUMIDITY
• 0-96% non-condensing

• ADDITIONAL SPECIFICATIONS

• CONSTRUCTION TYPE
• 482.6 mm (19 inch) device
• PACKAGE CONTENTS
• UPS
• Input cable
• (2) IEC-IEC output cables
• USB cable
• Serial cable
• (2) brackets for 19' mounting
• (2) Rack-mounting kit
• Safety instructions
• Quickstart guide
• PHASE (OUTPUT)
• 1
• INTERNAL BYPASS
• Yes
• AUTO SHUTDOWN FUNCTION
• Yes
• COLOR
• Black
• EFFICIENCY
• 92
• RACK MOUNTING KIT
• Yes
• PHASE (INPUT)
• 1
• HOT SWAP POWER
• No

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 2 év gyártó által biztosított szervizgarancia
