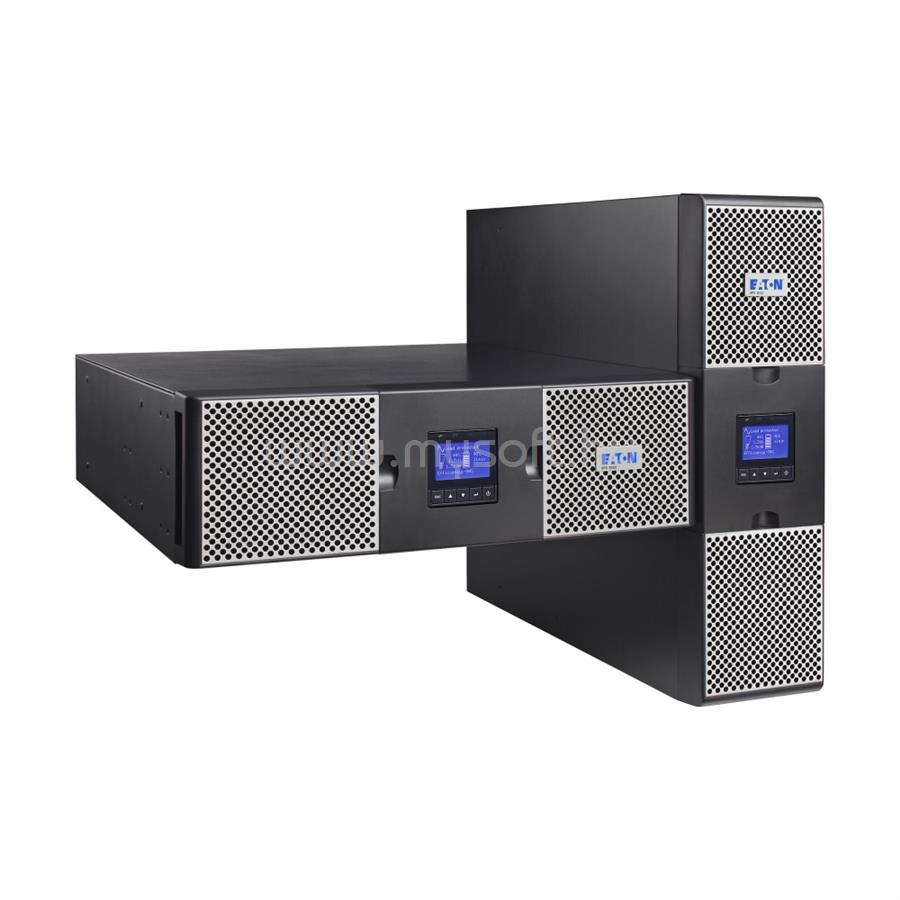

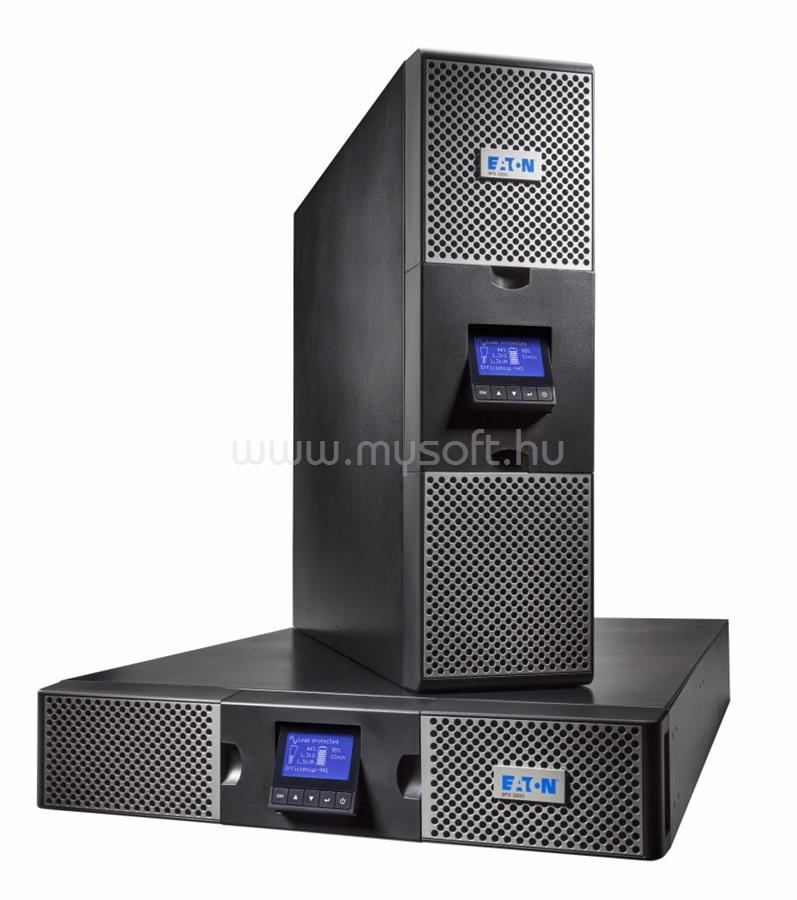

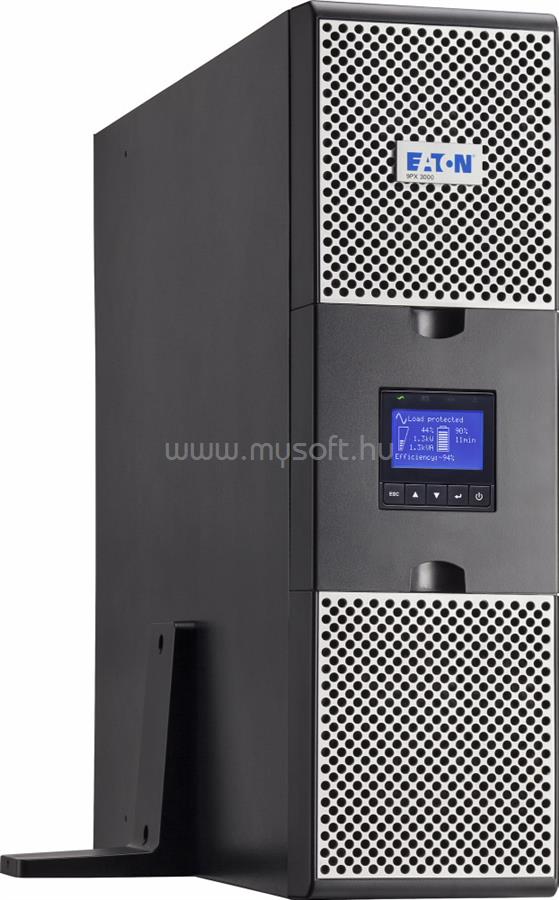

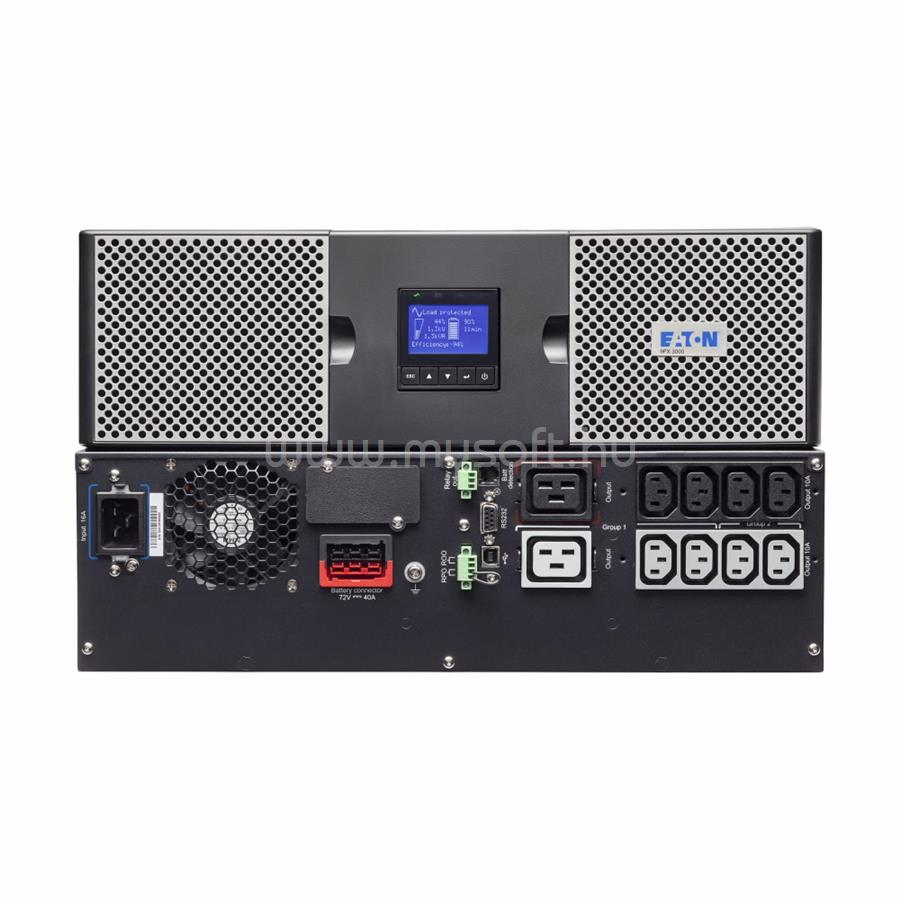

EATON 9PX 2200I RT3U 2200W FEKETE TORONY/RACK 3U SZÜNETMENTES TÁPEGYSÉG

• GENERAL SPECIFICATIONS

• PRODUCT LENGTH/DEPTH
• 48.5 cm
• PRODUCT HEIGHT
• 13 cm
• PRODUCT WIDTH
• 44 cm
• PRODUCT WEIGHT
• 24.52 kg

• PRODUCT SPECIFICATIONS

• SECONDARY FREQUENCY - MAX
• 60 Hz
• OUTPUT WAVEFORM
• Sine wave
• MAX NUMBER OF BATTERY PACKS
• 4
• WATTAGE
• 2200 W
• OUTPUT POWER FACTOR
• 1
• FORM FACTOR
• Rack/tower
• VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX
• 3
• INCLUDES NETWORK CARD
• No
• INPUT CONNECTION
• C20 C20
• INPUT VOLTAGE - MIN
• 100 V
• OUTPUT VOLTAGE - MAX
• 240 V
• SECONDARY FREQUENCY - MIN
• 50 Hz
• SOFTWARE COMPATIBILITY
• Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
• BATTERY REPLACEMENT
• Hot-swappable internal batteries and extended battery modules (EBMs)
• BATTERY TYPE
• Sealed, lead-acid
• EFFICIENCY
• 93.5
• SPECIAL FEATURES
• Double conversion topology
• Constantly monitors power conditions and regulates voltage and frequency
• First UPS in its class to provide Unity power factor (VA=W)
• Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs
• Internal bypass allows service continuity in case of UPS fault
• Next-generation graphical LCD display
• Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
• Meter energy consumption (down to the managed outlet groups)
• Hot swappable batteries
• Advanced Battery Management (ABM) technology to increase battery lifetime

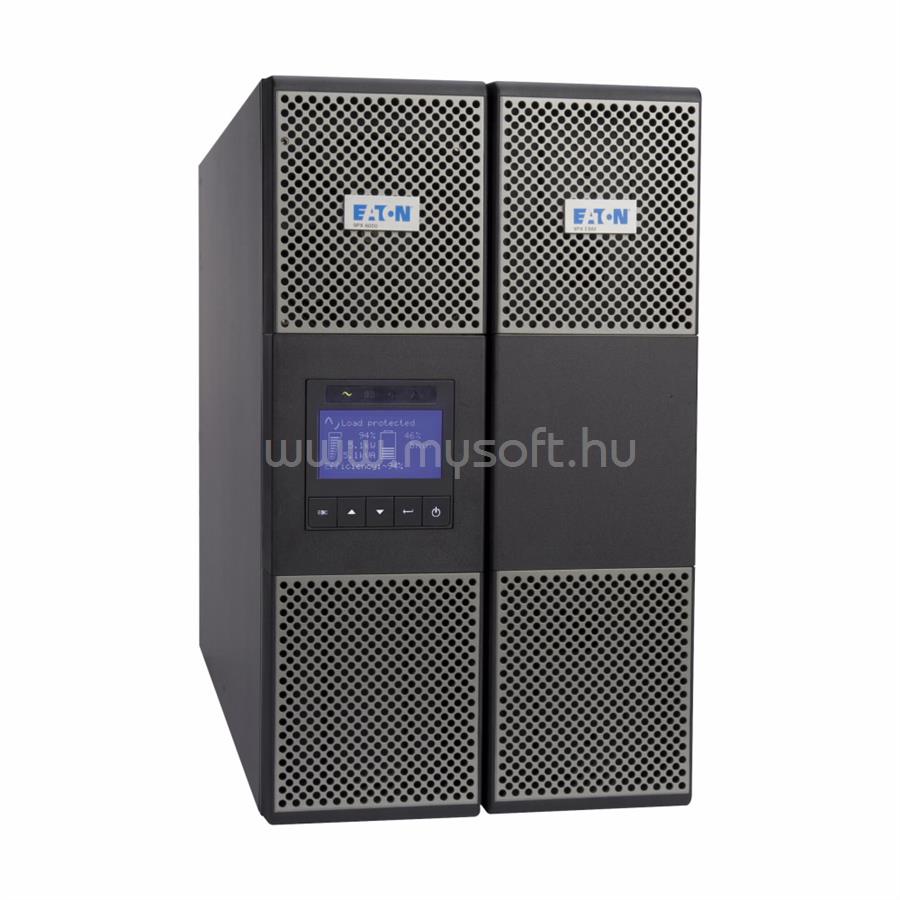

• Long backup time with up to 4 optional EBM
• CONSTRUCTION TYPE
• 482.6 mm (19 inch) device
• OUTPUT VOLTAGE - MIN
• 200 V
• COLOR
• Black/silver
• EXTENDED BATTERY CAPABILITY
• Yes
• OUTPUT VOLTAGE RANGE
• 200/208/220/230/240 V +/- 1%
• TOPOLOGY
• Online/Double-conversion
• BTU RATING
• Online: 488
• EFFICIENCY (ECO-MODE)
• 98
• RUNTIME AT HALF LOAD
• 10 min
• INPUT NOMINAL VOLTAGE
• 230V default (200/208/220/230/240V)
• INPUT POWER FACTOR
• >.99
• INPUT FREQUENCY RANGE
• 40-70 Hz
• INTERNAL BYPASS
• Yes
• INPUT VOLTAGE - MAX
• 276 V
• VOLTAGE TYPE
• AC
• PHASE (OUTPUT)
• 1
• BATTERY MANAGEMENT
• ABM & Temperature compensated charging method (user selectable)
• Automatic battery test
• Deep discharge protection
• Automatic recognition of external battery units
• AUTO SHUTDOWN FUNCTION
• Yes
• NUMBER OF OUTPUTS C13
• 8
• NUMBER OF OUTPUTS C19
• 2
• VA RATING
• 2200 VA
• POTENTIAL FREE SWITCH CONTACT
• Yes

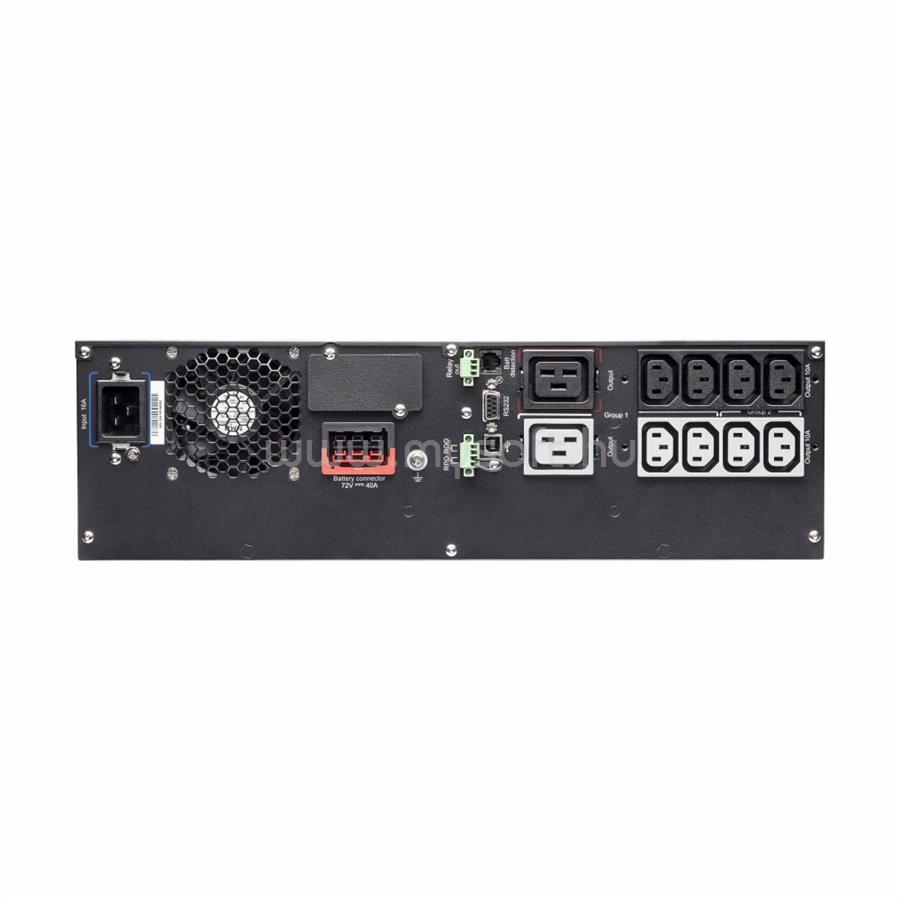

• RECEPTACLE
• (8) C13, (2) C19
• PHASE (INPUT)
• 1
• PACKAGE CONTENTS
• UPS
• Input cable
• (2) IEC-IEC output cables
• USB cable
• Serial cable
• (2) brackets for 19' mounting
• (2) Rack-mounting kit
• (2) Supports for tower mounting
• Cable locking system
• Safety instructions
• Quickstart guide
• NOISE LEVEL
• <40 dB at 1 meter
• FEED TYPE
• 1
• USER INTERFACE
• Multilingual graphical LCD display
• BATTERY QUANTITY
• 6
• RACK SIZE
• 3U
• VOLTAGE
• 230V
• HOT SWAP POWER
• No
• INPUT CORD LENGTH
• 1.8m
• TEMPERATURE RANGE
• 0° to 40°C (32° to 104°F)
• ETHERNET INTERFACE
• No
• COMMUNICATION
• USB port (HID compliant)
• Serial port (RS232)
• Mini terminal block for remote On/Off
• Mini-terminal block for remote power off
• Mini-terminal block for output relay
• Dry contacts (3 outputs, 1 input, optocoupler, DB9)
• RELATIVE HUMIDITY
• 0-96% non-condensing
• RACK MOUNTING KIT
• Yes
• OUTPUT FREQUENCY
• 50/60 Hz
• RUNTIME AT FULL LOAD
• 3 min
• TYPE OF INTERFACE
• Other
• PRIMARY FREQUENCY - MIN
• 40 Hz
• BATTERY RATING
• 12 V / 7 Ah
• TYPE
• UPS
• OUTPUT NOMINAL VOLTAGE
• 230V default (200/208/220/230/240V)
• EXPANSION SLOTS
• One slot for optional communication card
• INPUT VOLTAGE RANGE
• 176-276 V (100-276 V with derating)
• NOMINAL FREQUENCY
• 50/60 Hz
• PRIMARY FREQUENCY - MAX
• 70 Hz
• ALTITUDE
• 3000 m
