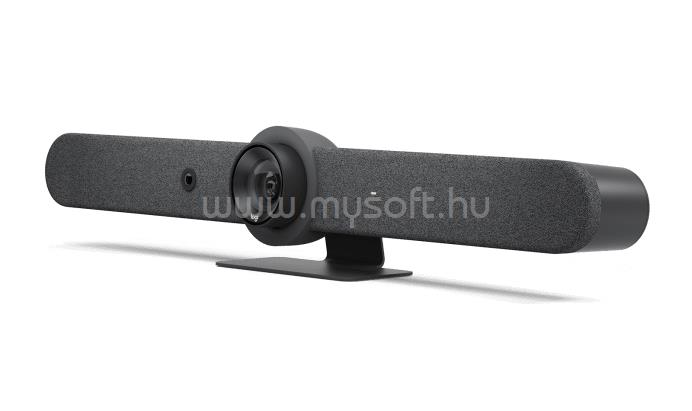

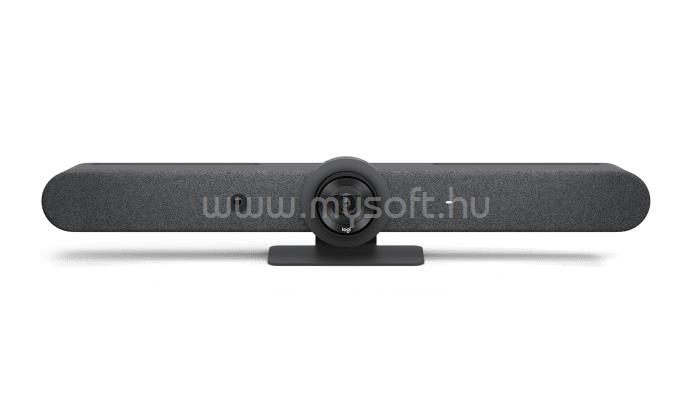

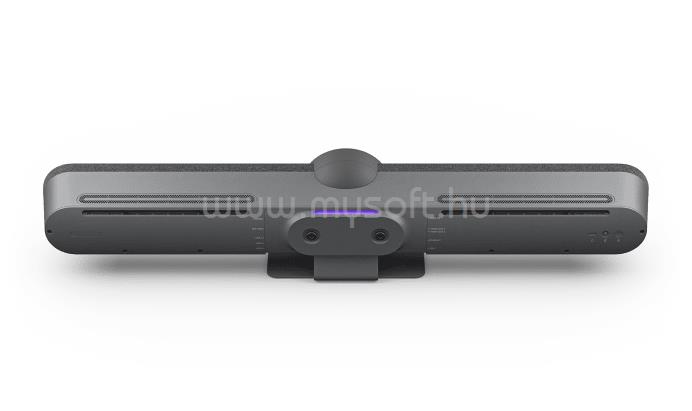

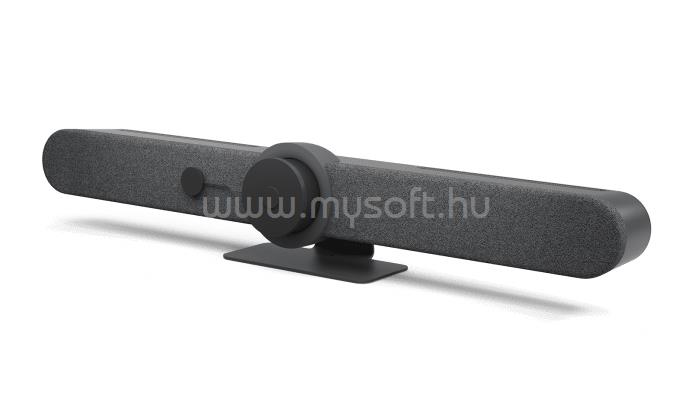

LOGITECH RALLY BAR 4K WEBKAMERA VIDEOKONFERENCIÁKHOZ (GRAFITSZÜRKE)

• DIMENSIONS

• Height
• 164 mm
• Width
• 910 mm
• Depth
• 130.5 mm
• Lens Depth
• 28.8 mm
• Weight
• 7.08 kg

• SYSTEM REQUIREMENTS

• Internet Connection: Wired or wireless
• USB Mode: Windows© 11, Windows 10, the two most recent versions of macOS
• Appliance Mode: Room solution software license (not included)

• TECHNICAL SPECIFICATIONS

• Certifications & Compatibility
• Certifications
• Microsoft Teams Rooms on Android™ 5For medium sized rooms
• Microsoft Teams Rooms on Windows 6For medium sized rooms
• Zoom Room
• Tencent Meeting Rooms
• Google Meet (ChromeOS/USB)
• Appliance Mode: Supports compatible video conferencing software in appliance mode (no PC required), including
• Microsoft Teams Rooms on Android
• Zoom Rooms
• RingCentral Rooms
• Tencent Meeting Rooms
• USB Mode: Plug-and-play USB connectivity with virtually any video conferencing application
• For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications
• General Specifications
• Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
• Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
• Device Management: Logitech Sync
• Displays Supported: 2 (up to 1080p)
• Display Resolution: Up to 1080p
• Network Protocol Support: IPv4, IPv6
• Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
• Camera
• Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
• Pan: Motorized ?25°
• Tilt: Motorized ?15°
• Zoom: 15X HD zoom (5X optical and 3X digital)
• Diagonal Field of View: 90°
• Horizontal Field of View: 82.1°
• Vertical Field of View: 52.2°
• Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical
• Speakers
• Drivers: 2x 70 mm
• Sensitivity: 92 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ? meter
• Rated Power: 8W
• THD: 1kHz <2% at 1W
• Speaker Sampling Rate: 48 kHz
• Impedance: 4 Ohms
• Microphones
• Frequency Response: 90Hz - 16kHz
• Sensitivity: >-36dBFS +/-1 dB @ 1Pa
• Microphone data rate output: 48KHz
• Pickup Range: Up to 7 m
• Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
• Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
• Noise suppression: AI based de-noising algorithm
• Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
• RightSense Technologies
• RightLight: Renders natural skin tones for each participant
• RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
• RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
• Grid View: Detect and frame all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview
• Interfaces
• HDMI Out: 2 (up to 1080p)
• HDMI In: 1
• MAC: 3x Type A, 1x Type C
• Network: 10/100/1G Ethernet
• WiFi: 802.11a/b/g/n/ac
• External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
• Remote Control: Bluetooth© Low Energy
• Power & Cables
• Power supply: Auto-sensing
• Operating Voltage/Power: 100-240V, 19V, 4.74A
• Power Supply Dimensions: 127 mm x 51 mm x 30 mm
• DC Cable: 1.5 m
• AC Cable: 1 m
• HDMI 1.4 Cable: 2 m
• USB A to USB C 3.0 Cable: 2.2 m
• Environmental
• Operating Temperature: 0 to 40°C
• Storage Temperature: -40 to 70 °C
• Humidity: 10 to 95%
• BTU/hr: 57 idle, 64 in meeting
• Security
• Full Disk Encryption: AES-128
• Data Encryption: Symmetric Keys, PKI
• Device Identity: Protected by device attestation
• Device Access: Authenticated using API
• Key Protection: Arm TrustZone, RPMP
• Accessories
• Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
• Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
• Connectivity: Logitech Strong USB (10 m, 25 m, 45 m)
• Touch Controller: Logitech Tap and Tap IP

• PACKAGE CONTENTS

• Rally Bar
• Power supply
• AC power cord
• HDMI cable
• USB cable

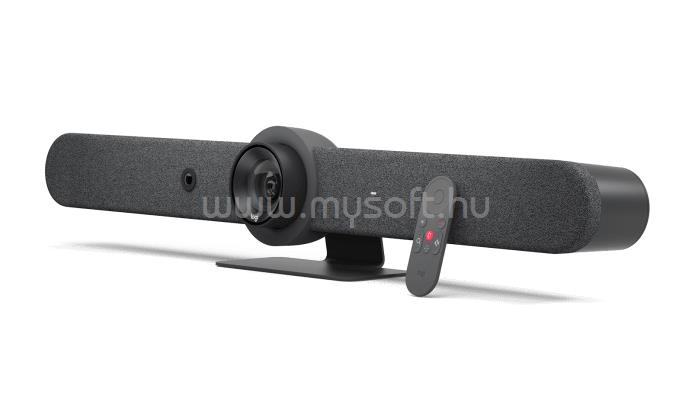

• Remote control
• Lens caps for main camera and AI Viewfinder
• User documentation

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
