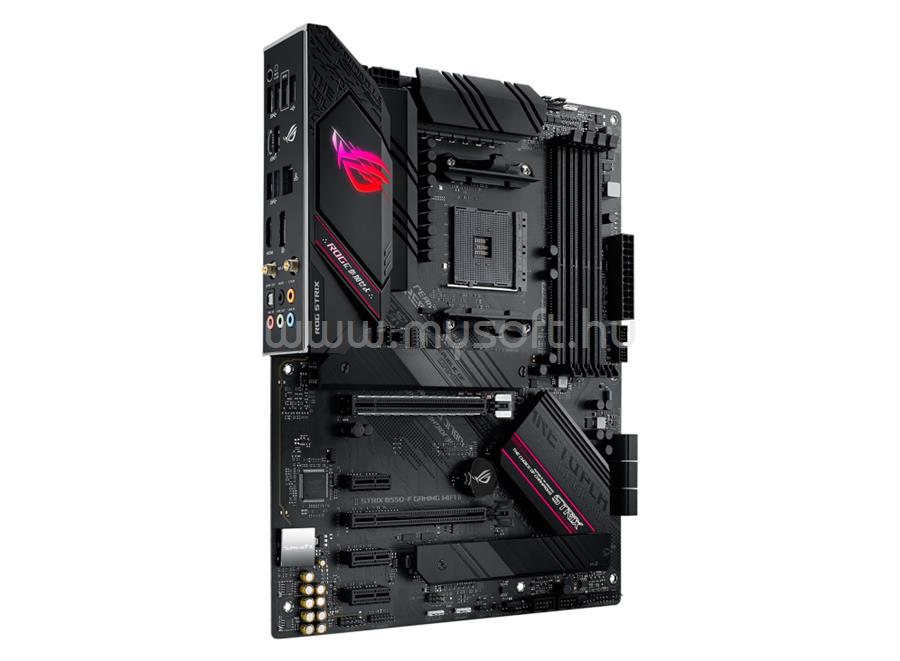

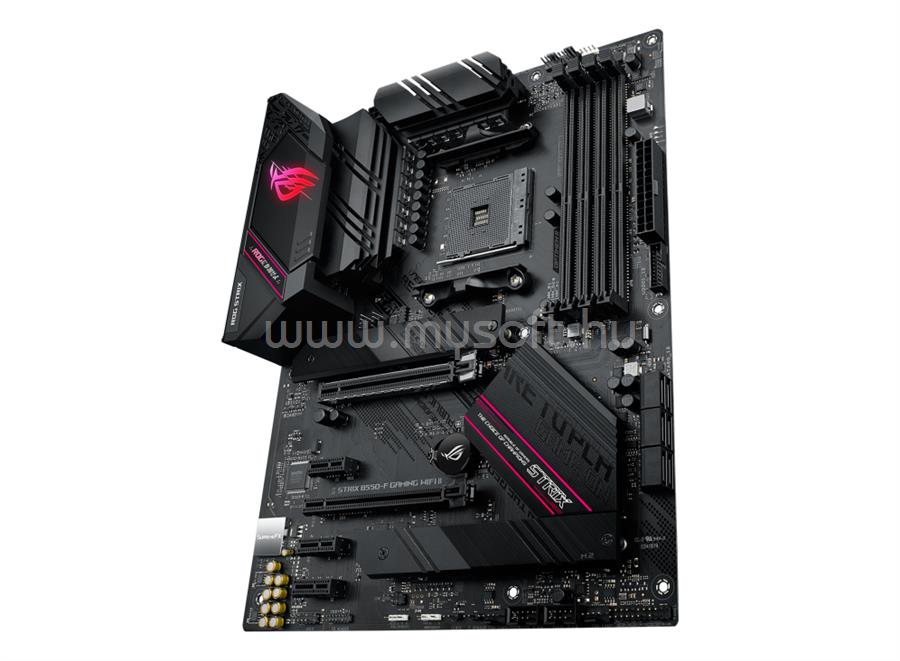

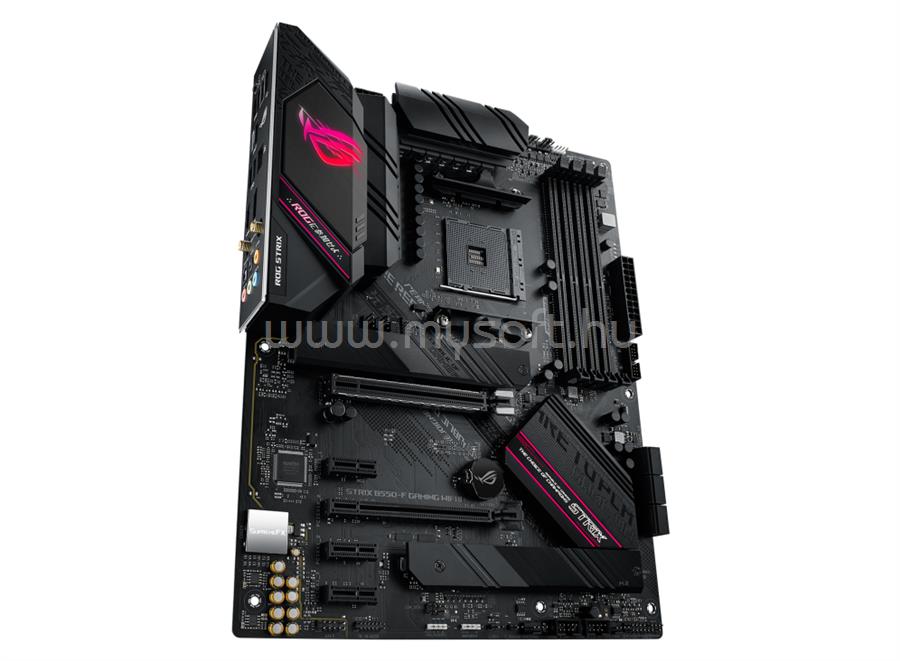

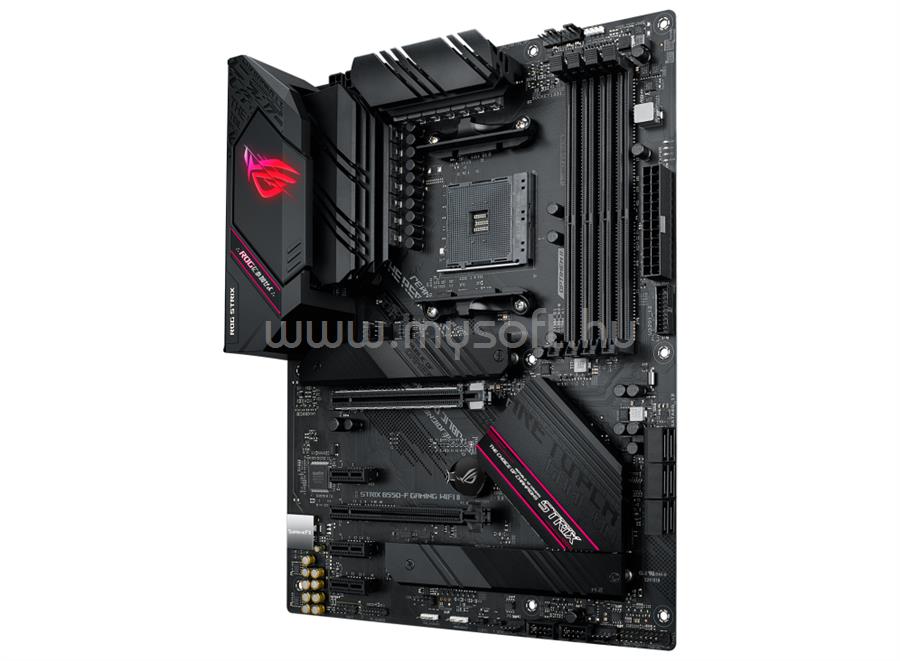

ASUS ALAPLAP ROG STRIX B550-F GAMING WIFI II (AM4, ATX)

• CPU

• AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

• Chipset

• B550

• Memory

• AMD Ryzen 5000 and 3000 Series Desktop Processors
• 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory
• AMD Ryzen 5000 and 4000 G-Series Processors
• 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory
• ECC Memory (ECC mode) support varies by CPU.

• Graphics

• 1 x DisplayPort 1.2
• 1 x HDMI 2.1

• Expansion Slots

• AMD Ryzen 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
• 1 x PCIe 4.0 x16 SafeSlot (supports x16 mode)
• AMD B550 chipset
• 1 x PCIe 3.0 x16 slot (supports x4 mode)*
• 3 x PCIe 3.0 x1 slots

• Storage

• Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
• Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
• AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
• AMD B550 Chipset:
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
• 6 x SATA 6Gb/s ports
• Support RAID 0, 1, 10

• Ethernet

• 1 x Intel 2.5Gb Ethernet
• 1 x Intel I225-V 2.5Gb Ethernet
• ASUS LANGuard

• Wireless & Bluetooth

• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band
• Bluetooth v5.2

• USB

• Rear USB:
• Total 8 ports
• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C©)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports
• Front USB:
• Total 6 ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

• Audio

• ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
• - Impedance sense for front and rear headphone outputs
• - Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
• - Supports up to 32-Bit/192kHz playback
• Audio Features
• - SupremeFX Shielding Technology
• - Dual OP Amplifiers
• - Premium audio capacitors
• - Audio cover

• Back Panel I/O Ports

• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports
• 1 x Wi-Fi Module
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Intel I225-V 2.5G Ethernet
• 1 x Optical S/PDIF out
• 5 x Audio jacks
• 1 x BIOS FlashBack button

• Internal I/O Connectors

• Fan and cooling related
• 1 x 4-Pin AIO_Pump header
• 1 x 4-Pin CPU fan header
• 1 x 4-Pin CPU_OPT fan header
• 3 x 4-Pin Chassis fan headers
• Power related
• 1 x 24-pin main power connector
• 1 x 8-pin +12V power connector
• 1 x 4-pin +12V power connector
• Storage related
• 2 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 1 x Addressable Gen 2 header
• 2 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x Front panel audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal sensor header
• 1 x Thunderbolt header

• Special Features

• ASUS Q-Design
• - ASUS Q-DIMM
• - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
• - ASUS Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink
• AURA Sync
• - AURA RGB headers
• - Addressable Gen 2 RGB headers
• ASUS EZ DIY
• - BIOS FlashBack™ button
• - BIOS FlashBack™ LED
• - Clear CMOS header
• - ProCool
• - Pre-mounted I/O shield
• - SafeSlot

• Software Features

• ROG Exclusive Software
• - RAMCache III
• - ROG CPU-Z
• - GameFirst VI
• - Sonic Studio III + Sonic Studio Virtual Mixer
• - Sonic Radar III
• - DTS© Sound Unbound
• - Overwolf
• - Anti-virus software
• ASUS Exclusive Software Features
• Armoury Crate
• - AIDA64 Extreme (60 days free trial)
• - Aura Creator
• - Aura Sync
• - Two-Way AI Noise Cancelation
• AI Suite 3:
• - Performance And Power Saving Utility
• EPU
• DIGI+ VRM
• Fan Xpert 4
• TurboV EVO
• - EZ update
• WinRAR
• DAEMON Tools
• Norton Anti-virus software (Free Trial version)
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables
• 1 x Addressable RGB extension cable
• 4 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties pack
• 1 x M.2 Rubber Package
• 1 x M.2 SSD screw package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• Installation Media
• 1 x Support DVD
• Documentation
• 1 x User manual

• Operating System

• Windows 11, Windows 10 64-bit

• Form Factor

• ATX
• 30.5cm x 24.4cm

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
