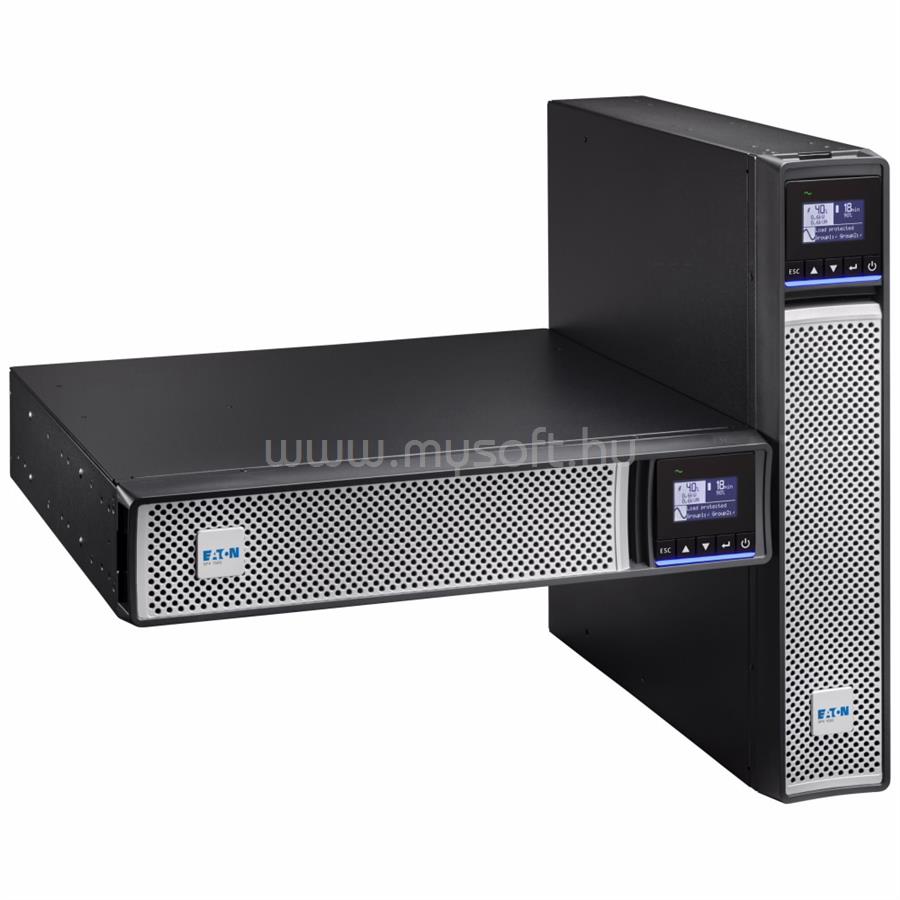

EATON 5PX 2200I RT2U G2 NETPACK VONALI INTERAKTÍV 1:1 UPS SZÜNETMENTES TÁPEGYSÉG

• GENERAL SPECIFICATIONS

• PRODUCT LENGTH/DEPTH
• 603 mm
• PRODUCT HEIGHT
• 85.5 mm
• PRODUCT WIDTH
• 438 mm
• PRODUCT WEIGHT
• 28.2 kg
• COMPLIANCES
• IEC/EN 62040-1
• IEC/EN 62040-2
• IEC/EN 62040-3
• RoHS Compliant
• REACH
• UL 1778
• CSA 22.2

• PRODUCT SPECIFICATIONS

• SECONDARY FREQUENCY - MAX
• 60 Hz
• OUTPUT WAVEFORM
• Sine wave
• MAX NUMBER OF BATTERY PACKS
• 4
• WATTAGE
• 2200 W
• OUTPUT POWER FACTOR
• 1
• FORM FACTOR
• Rack/tower
• INCLUDES NETWORK CARD
• Yes
• INPUT CONNECTION
• C20
• INPUT VOLTAGE - MIN
• 150 V
• OUTPUT VOLTAGE - MAX
• 240 V
• SECONDARY FREQUENCY - MIN
• 50 Hz
• SOFTWARE COMPATIBILITY
• Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
• BATTERY REPLACEMENT
• User replaceable
• BATTERY TYPE
• Lead-acid maintenance-free (replaceable)
• EFFICIENCY
• 98
• SPECIAL FEATURES
• Automatic Voltage Regulation (AVR)
• Energy efficient, reduce energy and cooling costs
• Delivers clean sinewave output
• Provides more real power (watts) to protect more equipment with a Unity power factor (VA=W)
• LCD display for real-time status and measurements
• Network card and rackmounting kit delivered as standard
• Long backup time with up to 4 optional EBM
• Meter energy consumption (down to the managed outlet groups)
• Versatile product for rack or tower installation
• 1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
• Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
• 1 USB port + 1 serial port
• CONSTRUCTION TYPE
• 482.6 mm (19 inch) device
• OUTPUT VOLTAGE - MIN
• 200 V
• COLOR
• Black/silver
• EXTENDED BATTERY CAPABILITY
• Yes
• OUTPUT VOLTAGE RANGE
• 230 V (+6%/-10%)
• TOPOLOGY
• Line-interactive
• RUNTIME AT HALF LOAD
• 10 min
• INPUT NOMINAL VOLTAGE
• 230V default (200/208/220/230/240V)
• INPUT FREQUENCY RANGE
• 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
• INPUT VOLTAGE - MAX
• 294 V
• VOLTAGE TYPE
• AC
• PHASE (OUTPUT)
• 1
• BATTERY MANAGEMENT
• ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
• INTEGRATED FUNCTIONALITY
• Network Mangement
• AUTO SHUTDOWN FUNCTION
• Yes
• NUMBER OF OUTPUTS C13
• 8
• NUMBER OF OUTPUTS C19
• 2
• VA RATING
• 2200 VA
• POTENTIAL FREE SWITCH CONTACT
• Yes
• RECEPTACLE
• (8) C13, (2) C19
• PHASE (INPUT)
• 1
• PACKAGE CONTENTS
• Network Management Card
• Input cable
• Rack-mounting kit
• (2) Supports for tower mounting
• Cable locking system
• USB cable
• Serial cable
• (2) IEC-IEC cables
• Quickstart guide
• Safety instructions
• NOISE LEVEL
• <40 dB at 1 meter
• FEED TYPE
• 1
• USER INTERFACE
• Multilingual graphical LCD display
• BATTERY QUANTITY
• 6
• RACK SIZE
• 2U
• VOLTAGE
• 230V
• INPUT CORD LENGTH
• 1.8m
• TEMPERATURE RANGE
• 0° to 40°C (32° to 104°F), batteries recommended max. 25°C (77°F)
• PROTOCOL
• SNMP
• COMMUNICATION
• USB port (HID compliant)
• Serial port (RS232)
• Mini-terminal block for remote On/Off and Remote Power Off
• Mini-terminal block for output relay
• Dry contacts (3 outputs, 1 input, optocoupler, DB9)
• RELATIVE HUMIDITY
• 0-90% non-condensing
• RACK MOUNTING KIT
• Yes
• OUTPUT FREQUENCY
• 50/60 Hz
• TYPE OF INTERFACE
• Other
• PRIMARY FREQUENCY - MIN
• 47 Hz
• BATTERY RATING
• 12 V / 7 Ah
• TYPE
• UPS
• OUTPUT NOMINAL VOLTAGE
• 230V default (200/208/220/230/240V)
• EXPANSION SLOTS
• One slot, network card included
• INPUT VOLTAGE RANGE
• 160-294 V (adjustable to 150 V-294 V)
• NOMINAL FREQUENCY
• 50-60 Hz
• PRIMARY FREQUENCY - MAX
• 70 Hz
• ALTITUDE
• 3000 m
