HP DESIGNJET T230 2025 24 HÜVELYKES SZÍNES TINTASUGARAS NAGYFORMÁTUMÚ NYOMTATÓ

Funkciók

• • Másolás
  • Szkennelés
  • FAX
  • Duplex nyomtatás

Csatlakozók

• • USB
  • LAN
  • Wi-Fi
  • Párhuzamos port

Nyomtatási méret

Tálcák

• 1. tálca:
  2. tálca:

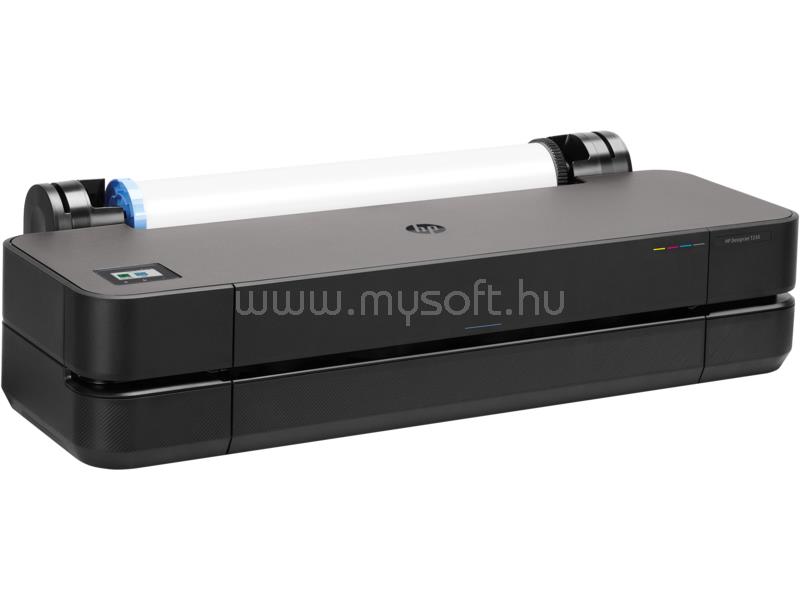

• HP DesignJet T230 24-in Printer 2025 edition (5HB07D)

• Functions
• Print
• Print speed
• 35 sec/page on A1, 68 A1 prints per hour
• Ink drop
• 5.5 pl (C, M, Y); 12 pl (K)
• Print head nozzles
• 1376
• Print cartridge/bottle volume delivered
• 80 ml (K); 38 ml (K); 29 ml (C, M, Y) per cartridge
• Ink types
• Dye-based (C, M, Y); pigment-based (K)
• Print Cartridges/Bottle, Number
• 4 (C, M, Y, K) cartridges
• Print heads
• 1 (cyan, magenta, yellow, black)
• High capacity of page yield (colour)
• 20 ml of ink yields 101 A1 pages, taking into account maintenance routines
• Print Cartridge/Bottle, Color(s)
• Cyan, magenta, yellow, black
• Print quality color (best)
• Up to 2400 x 1200 optimised dpi
• Maximum optical density (black)
• 8 L* min/2.10 D
• Finished output handling
• Sheet feed, roll feed, automatic horizontal cutter
• Media sizes standard (metric rolls)
• 279 to 610 mm
• Roll external diameter
• 100 mm
• Roll maximum input
• 1
• Roll maximum weight
• 4.1 kg
• Recommended media
• Q1396A HP Universal Bond Paper (FSC© certified) (recyclable) 610 mm x 45.7 m;C6019B HP Coated Paper (FSC© certified) (recyclable) 610 mm x 45.7 m;C6029C HP Heavyweight Coated Paper (FSC© certified) (recyclable) 610 mm x 30.5 m
• Media thickness
• Up to 11.8 mil
• Media thickness (metric)
• Up to 0.3 mm
• Media width, maximum
• 610 mm
• Supported Primary Applications
• Line drawings; Presentations; Renderings
• Non-printable area (cut-sheet)
• 5 x 5 x 5 x 17 mm (manual feed); 5 x 5 x 5 x 5 mm (input tray)
• Non-printable area (roll media)
• 5 x 5 x 5 x 5 mm
• Media sizes, custom
• 210 x 279 to 610 x 1897 mm
• Media sizes supported
• A4, A3, A2, A1
• Media types
• Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
• Media weight, recommended
• 60 to 280 g/m2
• Model size
• 610 mm
• Internal Storage
• None
• Line accuracy
• +/-0.1%
• Printer drivers included
• Raster driver for macOS and Windows, HP Click Driver for Windows 11
• Print languages
• JPEG, URF
• Print technology
• HP Thermal Inkjet
• Theoretical minimum line width
• 0.02 mm
• Printing path
• HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing
• Connectivity, standard
• Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
• Security features
• HP Wolf Essential Security: Secure boot with HW root of trust; Firmware Code Signature Validation; Automatic FW Updates; HTTPS Redirect enabled by default; SNMPv1/2 read-only by default; SNMPv3 disabled by default; Write-protected memory; HP Cartridge Security; Unique password; Disable USB ports; TLS 1.2; 802.1x; IPv4 & IPv6 Compatibility; CA/JD Compatibility
• Remote print enabled
• Yes
• Print multi-size files in one click
• Yes
• Dimensions (W x D x H)
• 1013 x 440 x 285 mm
• Package dimensions (W x D x H)
• 1155 x 575 x 405 mm
• Weight
• 21.5 kg
• Package weight
• 27 kg
• Memory
• 512 MB
• Acoustic power emissions (active, printing)
• 5.8 B(A) (operating), <3.4 B(A) (idle)
• Acoustic pressure emissions
• 42 dB(A) (operating), <16 dB(A) (idle)
• Operating humidity range
• 20 to 80% RH
• Non-Operating Humidity Range
• 0 to 95% RH
• Operating temperature range
• 5 to 40oC
• Operating temperature range
• 41 to 104oF
• Storage temperature range
• -25 to 55oC
• Storage temperature range
• -13 to 131oF
• Operating altitude
• Up to 3000 m
• Post consumer recycled plastic in hardware by weight of plastic
• 40%
• Power consumption
• <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)
• Power
• Input voltage (auto ranging): 100-240 V (?10%), 50/60 Hz (?3 Hz), 1200 mA max
• Software included
• HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS
• Electromagnetic compatibility
• Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)
• Energy star certified
• Yes
• Environmental certification
• ENERGY STAR; WEEE; EU RoHS; EAEU RoHS; REACH; ErP; EPEAT Climate+ Gold; UL Ecologo
• Safety
• USA and Canada (CSA certified); EU (LVD, EN 60950-1 and EN 62368-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS); Mexico (NYCE)
• What's in the box
• HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
