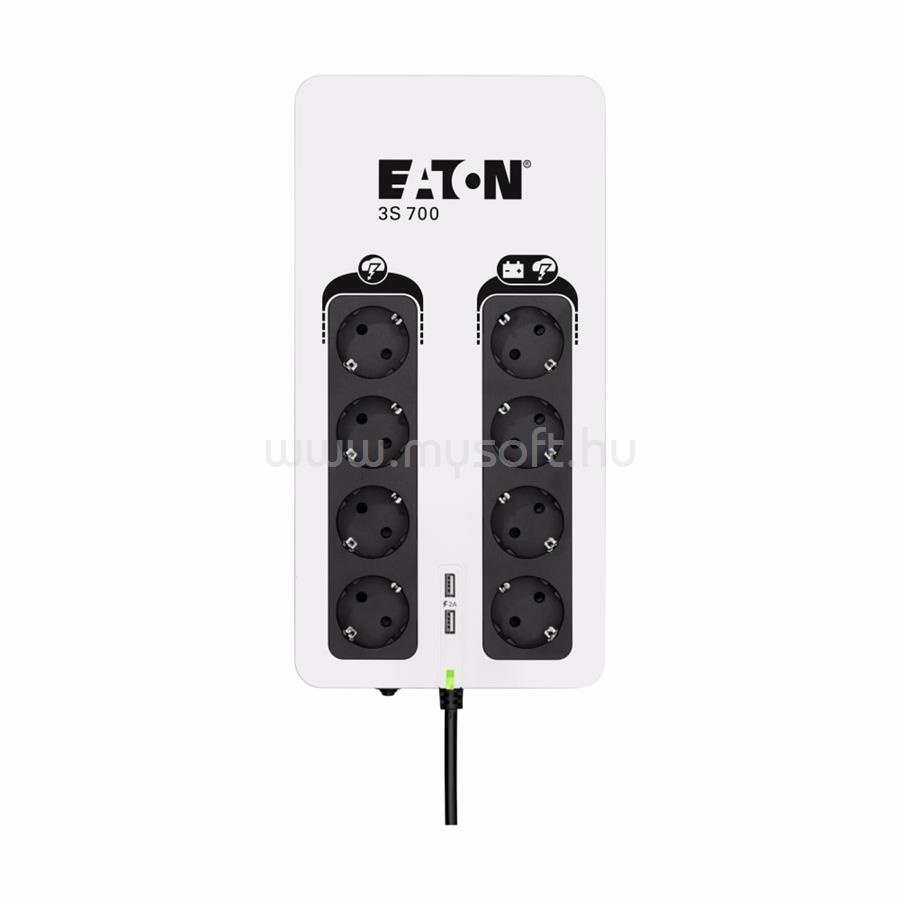

EATON UPS SCHUKO 3S 700 DIN GEN2 VONALI-INTERAKTÍV SZÜNETMENTES TÁPEGYSÉG

• GENERAL SPECIFICATIONS

• PRODUCT LENGTH/DEPTH
• 83.5 mm
• PRODUCT HEIGHT
• 170 mm
• PRODUCT WIDTH
• 335 mm
• PRODUCT WEIGHT
• 4.2 kg

• PRODUCT SPECIFICATIONS

• SECONDARY FREQUENCY - MAX
• 60 Hz
• WATTAGE
• 420 W
• OUTPUT POWER FACTOR
• 0.6
• FORM FACTOR
• Tower
• INCLUDES NETWORK CARD
• No
• INPUT CONNECTION
• Protective contact (SCHUKO)
• INPUT VOLTAGE - MIN
• 161 V
• OUTPUT VOLTAGE - MAX
• 284 V
• SECONDARY FREQUENCY - MIN
• 50 Hz
• SOFTWARE COMPATIBILITY
• Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
• BATTERY REPLACEMENT
• User replaceable
• BATTERY TYPE
• Sealed, lead-acid
• EFFICIENCY
• 98
• SPECIAL FEATURES
• Attractive design and glossy finish make the 3S a perfect fit for the modern office environment
• Compact unit fits on or under your desk or can be mounted on a wall
• High performance surge-protection device compliant with IEC 61643-11 standard
• Data line protection to ensure that the internet line (including xDSL) is protected against surges

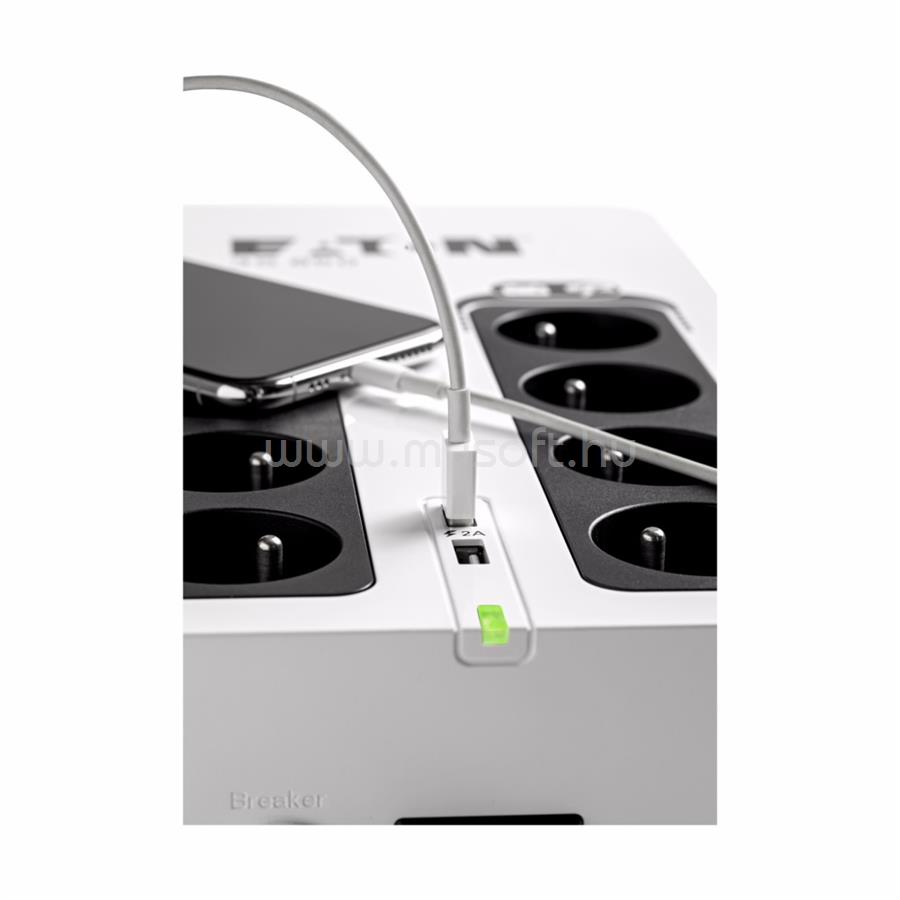

• 2 integrated USB ports provide mobile devices charging capability
• 8 outlets to connect your PC + peripherals
• Schuko (DIN) outlets for easy connection
• HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux)
• Easy to replace battery helps to extend UPS service life
• CONSTRUCTION TYPE
• Free standing model
• OUTPUT VOLTAGE - MIN
• 161 V
• COLOR
• Black/White
• EXTENDED BATTERY CAPABILITY
• No
• OUTPUT VOLTAGE RANGE
• 184-264 V (adjustable to 161-284 V)
• TOPOLOGY
• Offline
• SURGE PROTECTION
• Yes
• BACK-UP TIME
• 8 min
• INPUT NOMINAL VOLTAGE
• 230V default (220/230/240V)
• INPUT FREQUENCY RANGE
• 46-70 Hz
• INPUT VOLTAGE - MAX
• 284 V
• VOLTAGE TYPE
• AC
• PHASE (OUTPUT)
• 1
• BATTERY MANAGEMENT
• Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
• AUTO SHUTDOWN FUNCTION
• Yes
• OPERATING TEMPERATURE - MIN
• 0 °C
• VA RATING
• 700 VA
• POTENTIAL FREE SWITCH CONTACT
• No
• RECEPTACLE
• (4) Schuko, (4) Schuko surge only
• PHASE (INPUT)
• 1
• PACKAGE CONTENTS
• USB cable
• Quickstart guide
• Safety instructions
• NOISE LEVEL
• <25 dB at 1 meter
• FEED TYPE
• 1
• USER INTERFACE
• LEDs
• BATTERY QUANTITY
• 1
• OPERATING TEMPERATURE - MAX
• 40 °C
• VOLTAGE
• 230V
• INPUT CORD LENGTH
• 1.5 m
• ETHERNET INTERFACE
• No
• COMMUNICATION
• USB port (HID compliant)
• RELATIVE HUMIDITY
• 0-85% non-condensing
• OUTPUT APPARENT POWER
• 700 VA
• RACK MOUNTING KIT
• No
• NUM OF OUTPUTS PC (SCHUKO)
• 8
• OUTPUT FREQUENCY
• 50/60 Hz
• RUNTIME AT FULL LOAD
• 2 min
• TYPE OF INTERFACE
• USB
• PRIMARY FREQUENCY - MIN
• 46 Hz
• BATTERY RATING
• 12 V / 7 Ah
• TYPE
• UPS
• OUTPUT NOMINAL VOLTAGE
• 230V default (220/230/240V)
• EXPANSION SLOTS
• No
• INPUT VOLTAGE RANGE
• 184-264 V (adjustable to 161-284 V)
• NOMINAL FREQUENCY
• 50/60 Hz
• PRIMARY FREQUENCY - MAX
• 70 Hz
• ALTITUDE
• 2000 m
