DELL PRO THUNDERBOLT 5 DOCK - WD25TB5 DOKKOLÓ

• Technical Information

• Connectivity Technology
• Wired
• Device Supported
• Notebook
  Desktop PC
• Cable Length
• 83 cm
• Features
• Power Delivery Pass-through
  LED Power Indicator
  Indicator Light
• Management Features
• Intel AMT over Thunderbolt with select Intel vPro PCs
  MAC Address Pass-through
  PXE Boot
  Dock Power Button Sync
  Wake-on-LAN
  WLAN to LAN Switch
  Kernel Direct Memory Access (DMA) Protection
  Dell Command Update (DCU)
  Port Disablement
  Host PC based firmware update
  Firmware update on disconnect
• Number of Displays Supported
• 4
• Screen Mode Supported
• QHD @ 60Hz
  WQHD @ 60Hz
  4K @ 60Hz
  5K @ 60Hz
  6K @ 60Hz
  8K @ 60Hz
  4K @ 120Hz
• Supported Resolutions
• 3840 x 2160
  5120 x 2160
  2560 x 1440
  3440 x 1440
  7680 x 4320
  6144 x 3456
• Maximum Data Transfer Rate
• 1.25 GB/s
• Security Slot Type
• Kensington Security Slot
  Noble Wedge Security Slot
• Power Delivery Details
• 4 x USB-A 3.2 Gen 2 (4.5W each)
  1 x USB-C 3.2 Gen 2 (15W)
  1 x USB-C Multi-function DisplayPort (7.5W)
  2 x Thunderbolt 5 (15W each)
  All deliver power with or without PC
• Power Delivery
• Up to 300W (Dell Systems)
  Up to 240W (non-Dell Systems)
• Video Resolution Details
• QHD - 60 Hz (Quad Display)
  WQHD - 60 Hz (Triple Display)
  4K - 60 Hz (Dual Display)
  5K - 60 Hz (Single Display)
  4K - 60 Hz (Quad Display)
  4K - 60 Hz (Triple Display)
  6K - 60 Hz (Dual Display)
  8K - 60 Hz (Single Display)
  4K - 120 Hz (Quad Display)
  4K - 120 Hz (Triple Display)

• Network & Communication

• Ethernet Technology
• 2.5 Gigabit Ethernet

• Interfaces/Ports

• Host Interface
• Thunderbolt 5
• Total Number of USB Ports
• 6
• USB Type-A
• Yes
• Number of USB 3.2 Gen 2 Type-A Ports
• 4
• Number of USB 3.2 Gen 2 Type-C Ports
• 1
• Number of USB Type-A Ports
• 4
• USB Type-C
• Yes
• USB Type-C Detail
• 1 x USB-C 3.2 Gen 2 (10 Gbps), (15W), 1 x USB-C Multi-function DisplayPort (7.5W)
• Number of USB Type-C Ports
• 2
• Network (RJ-45)
• Yes
• DisplayPort
• Yes
• Number of DisplayPorts
• 2
• DisplayPort Version
• 2.1
• HDMI
• Yes
• Number of HDMI Ports
• 1
• HDMI Version
• 2.1
• Thunderbolt
• Yes
• Thunderbolt Ports Quantity
• 2

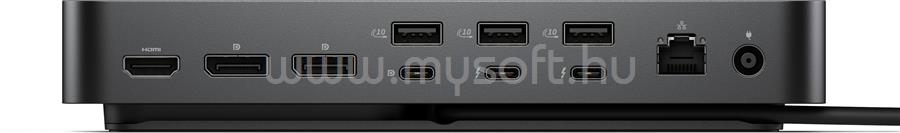

• Interfaces
• 2 x DP2.1
  1 x HDMI 2.1
  1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1
  2 x Thunderbolt 5

• Software

• Host Software
• Host Software (Windows):
  Dell Firmware Utility
  Dell Display and Peripheral Manager
  Dell Command Update
  Cloud Management (via host PC software)
  Dell Device Management Console enables:
  Automatic firmware updates
  Maintain specific firmware version or downgrade
  Peripheral inventory and status
• Operating System Supported
• Windows 10
  Windows 11
  Ubuntu 24.04
  Red Hat Enterprise Linux 9.7
  ChromeOS 141
  macOS

• Power Description

• Maximum Power Supply Wattage
• 330 W
• Power Source Type
• Power Adapter

• Physical Characteristics

• Height
• 35.3 mm
• Width
• 205 mm
• Depth
• 90 mm
• Weight (Approximate)
• 620 g

• Miscellaneous

• Package Contents
• Pro Dock WD25TB5 Docking Station
  Power Adapter
  Power Cord
  Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)
• Kensington Security Slot
• Yes

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
