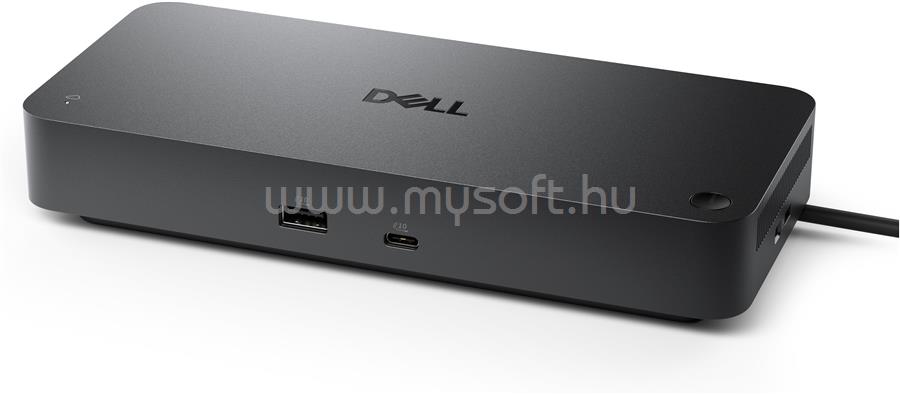

DELL PRO THUNDERBOLT 5 SMART DOCK SD25TB5 DOKKOLÓ

• Technical Information

• Connectivity Technology
• Wired
• Device Supported
• Notebook
• Cable Length
• 83 cm
• Features
• Power Delivery Pass-through
• LED Power Indicator
• Management Features
• WLAN to LAN Switch
• Port Disablement
• Dell Command Update (DCU)
• Intel AMT over Thunderbolt with select Intel vPro PCs
• Kernel Direct Memory Access (DMA) Protection
• Wake-on-LAN
• Dock Power Button Sync
• PXE Boot
• MAC Address Pass-through
• Number of Displays Supported
• 4
• Screen Mode Supported
• QHD @ 60Hz
• WQHD @ 60Hz
• 4K @ 60Hz
• 5K @ 60Hz
• 6K @ 60Hz
• 8K @ 60Hz
• 4K @ 120Hz
• Supported Resolutions
• 7680 x 4320
• 6144 x 3456
• 5120 x 2160
• 3840 x 2160
• 3440 x 1440
• 2560 x 1440
• Maximum Data Transfer Rate
• 1.25 GB/s
• Security Slot Type
• Noble Wedge Security Slot
• Kensington Security Slot
• Power Delivery Details
• 4 x USB-A 3.2 Gen 2 (4.5W each)
• 1 x USB-C 3.2 Gen 2 (15W)
• 1 x USB-C Multi-function DisplayPort (7.5W)
• 2 x Thunderbolt 5 (15W each)
• All deliver power with or without PC
• Power Delivery
• 300W (Dell Systems)
• 240W (non-Dell Systems)
• Video Resolution Details
• QHD - 60 Hz (Quad Display)
• WQHD - 60 Hz (Triple Display)
• 4K - 60 Hz (Dual Display)
• 5K - 60 Hz (Single Display)
• 4K - 60 Hz (Quad Display)
• 4K - 60 Hz (Triple Display)
• 6K - 60 Hz (Dual Display)
• 8K - 60 Hz (Single Display)
• 4K - 120 Hz (Quad Display)
• 4K - 120 Hz (Triple Display)

• Network & Communication

• Ethernet Technology
• 2.5 Gigabit Ethernet

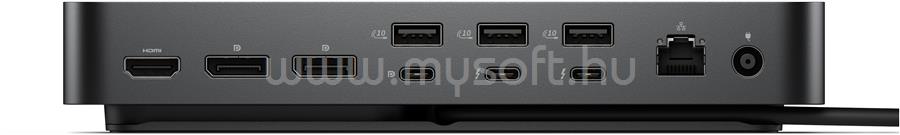

• Interfaces/Ports

• Host Interface
• Thunderbolt 5
• Total Number of USB Ports
• 6
• Number of USB 3.2 Gen 2 Type-A Ports
• 4
• Number of USB Type-A Ports
• 4
• Number of USB Type-C Ports
• 2
• USB Type-A
• Yes
• USB Type-C
• Yes
• USB Type-C Detail
• 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1, 1 x USB-C 3.2 Gen 2 (10 Gbps)
• Network (RJ-45)
• Yes
• Number of DisplayPorts
• 2
• DisplayPort
• Yes
• DisplayPort Version
• 2.1
• Number of HDMI Ports
• 1
• HDMI
• Yes
• HDMI Version
• 2.1
• Thunderbolt
• Yes
• Thunderbolt Ports Quantity
• 2

• Software

• Operating System Supported
• Windows 10
• Windows 11
• Ubuntu 24.04
• macOS
• Red Hat Enterprise Linux 9.7
• ChromeOS 141

• Power Description

• Maximum Power Supply Wattage
• 330 W
• Power Source Type
• Power Adapter

• Physical Characteristics

• Height
• 205 mm
• Width
• 90 mm
• Depth
• 35.3 mm
• Weight (Approximate)
• 632 g

• Miscellaneous

• Package Contents
• SD25TB5 Docking Station
• Power Adapter
• Power Cord
• Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)
• Kensington Security Slot
• Yes
