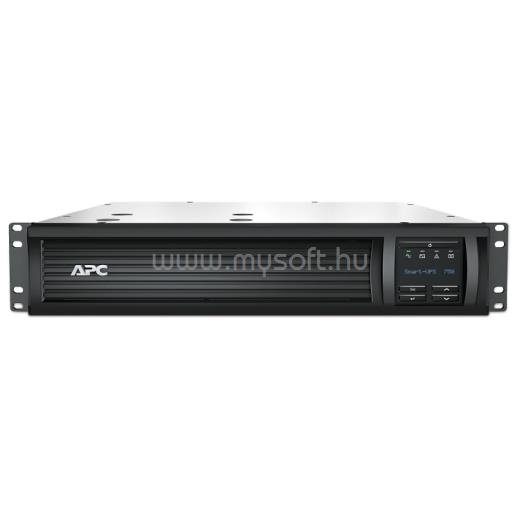

APC SMART-UPS 750VA LCD RM 2U 230V SZÜNETMENTES TÁPEGYSÉG

• Output

• Max Configurable Power (Watts)
• 500 Watts / 750VA
• Output Voltage Note
• Configurable for 220 : 230 or 240 nominal output voltage
• Output Voltage Distortion
• Less than 5 % at full load
• Output Frequency (sync to mains)
• 47 - 53 Hz For 50 Hz nominal Sync to mains, 57 - 63 Hz For 60 Hz nominal Sync to mains
• Other Output Voltages
• 220 V, 240 V
• Topology
• Line interactive
• Waveform type
• Sine wave
• Transfer Time
• 2 ms typical

• Input

• Input frequency
• 50/60 Hz +/- 3 Hz Auto-sensing
• Input voltage range for main operations
• 151 - 302 Adjustable, 160 - 286V
• Number of Power Cords
• 1
• Other Input Voltages
• 220 V, 240 V

• Batteries & Runtime

• Battery type
• Lead-acid battery
• Typical recharge time
• 3hour(s)
• Replacement Battery
• APCRBC123
• Expected Battery Life (years)
• 4 - 6
• RBC Quantity
• 1
• Battery Charge Power (Watts)
• 56 Watts
• Runtime
• View Runtime Graph
• Efficiency
• View Efficiency Graph

• Communications & Management

• Interface Port(s)
• RJ-45 Serial, SmartSlot, USB
• Control panel
• Multifunction LCD status and control console
• Available SmartSlot™ Interface Quantity
• 1

• Surge Protection and Filtering

• Surge energy rating
• 459Joules
• Filtering
• Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

• Physical

• Maximum Height
• 89MM, 8.9CM
• Maximum Width
• 432MM, 43.2CM
• Maximum Depth
• 406MM, 40.6CM
• Net Weight
• 17.27KG
• Shipping weight
• 21.23KG
• Shipping Height
• 241MM, 24.1CM
• Shipping Width
• 546MM, 54.6CM
• Shipping Depth
• 584MM, 58.4CM
• Color
• Black
• Master Carton Dimensions (Length x Width x Height)
• 1200 x 1000 x 1370MM
• Master Carton Units
• 10.0
• Master Carton Weight
• 225.0

• Environmental

• Operating Temperature
• 0 - 40 °C
• Operating Relative Humidity
• 0 - 95 %
• Operating Elevation
• 0 - 3048meters
• Storage Temperature
• -15 - 45 °C
• Storage Relative Humidity
• 0 - 95 %
• Storage Elevation
• 0 - 15240meters
• Audible noise at 1 meter from surface of unit
• 42.0dBA
• Online thermal dissipation
• 46.0BTU/hr
