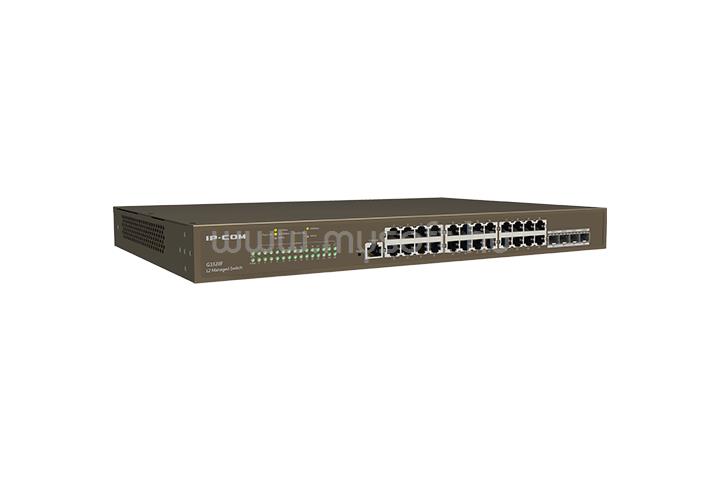

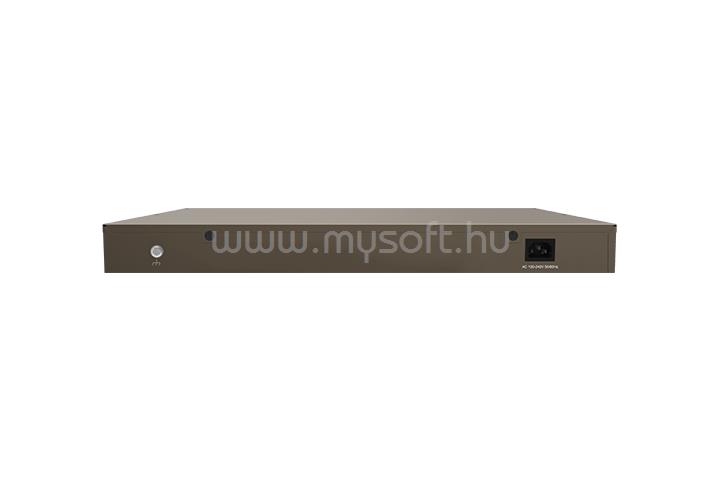

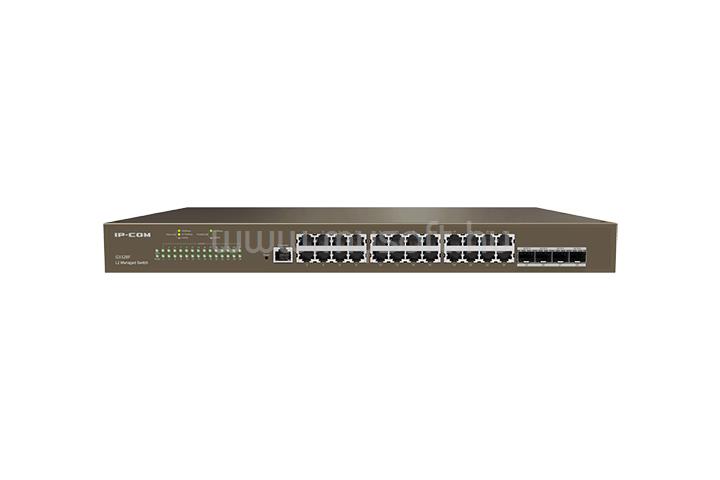

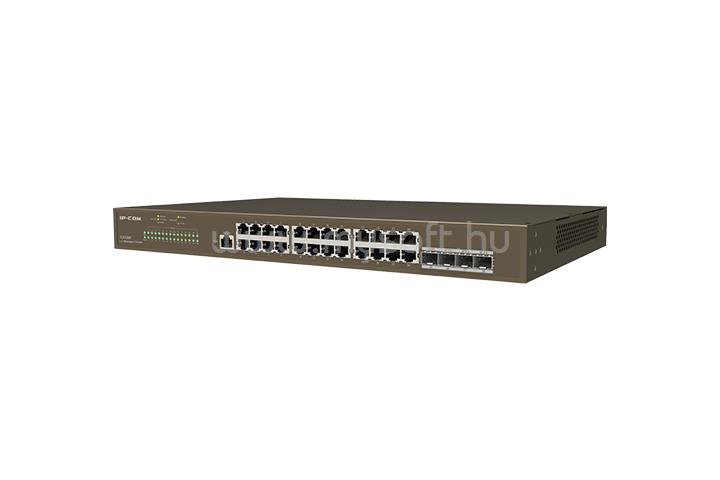

IP-COM G3328F VEZÉRELHETŐ SWITCH (24X1GBPS; 4X SFP; 1X CONSOLE PORT; L2)

• Hardware specifications

• Standards
• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
• LED indicators
• One Link/Act LED indicator for each port
• One Power LED indicator for each device
• One SYS LED indicator for each device
• Interfaces
• 24 x 10/100/1000Base-T Ethernet ports
• 4 x 1000Base-X SFP ports
• 1 x Console port
• Lightning protection
• Port: 6kV
• Power: 6kV
• Forwarding mode
• Store-and-forward
• Switching capability
• 56Gbps
• Packet forwarding rate
• 41.7Mpps
• Buffer
• 12Mbit
• MAC address table
• 16K
• Input voltage
• 100-240V~ 50/60Hz
• Dimensions(L*W*H)
• 440 mm x 179.6 mm x 44 mm
• Operating environment
• Operating temperature: 0°C - 45?
• Storage temperature: -40°C - 70°C
• Operating humidity: (10% - 90%)RH, non-condensing
• Storage humidity: (5% - 90%)RH, non-condensing

• Software specifications

• Security features
• Supports ARP receiving limit
• Supports discarding unknown MAC addresses
• Supports DoS attack defense
• Supports 802.1x security authentication
• Supports RADIUS authentication
• VLAN
• Supports 4K VLAN table
• Supports IEEE 802.1Q VLAN
• Supports three port link types: Access, Trunk and Hybrid
• DHCP
• Supports DHCP Snooping
• Supports Option 82 policy configuration
• Port aggregation
• Supports static aggregation
• Supports LACP dynamic aggregation
• Supports a maximum of 32 aggregation groups and a maximum of 8 member ports in each group
• Spanning tree
• Supports IEEE 802.1d STP (Spanning Tree Protocol)
• Supports IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
• Supports IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
• Supports edge ports
• Supports BPDU statistics
• Supports BPDU Guard, BPDU Filter
• Supports Root Guard, Loop Guard
• Supports Loopback-detection
• Multicast
• Supports IGMP Snooping V1/V2/V3
• Supports port fast leave
• Port Mirroring
• Supports N: 1 port mirroring
• QoS
• Supports SP (Strict Priority)
• Supports SWRR (Simple Weighted Round Robin)
• Supports WRR (Weighted Round Robin)
• Supports 802.1p port trust mode
• Supports DSCP port trust mode
• Supports a maximum of 8-queue service quality mapping
• Supports Tail Drop
• Supports storm suppression
• Supports port speed limit
• ACL
• Supports MAC ACL
• Supports IPv4 ACL
• Loading and upgrade
• Supports FTP/TFTP/HTTP upgrade
• Supports configuration import and export
• Cloud management
• Supports configuration delivery from IMS cloud platform
• Supports log reporting and fault detection
• Supports remote maintenance: reboot, backup, upgrade
• Local visualization management
• Supports router, switch, AP, IP camera discovery
• Supports automatic generation of topology
• Supports online/offline status detection for devices
• Supports remotely rebooting the IP camera
• Management and maintenance
• Supports Telnet configuration
• Supports Console port configuration
• Supports SNMP V1/V2/V3
• Supports WEB UI management and maintenance
• Supports Ping/Tracert Detection

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
